Pinout Values and Diagnostic Parameters
TERMINALS OF ECUTerminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch Assembly:
1. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
a. Disconnect the P9 switch connector.

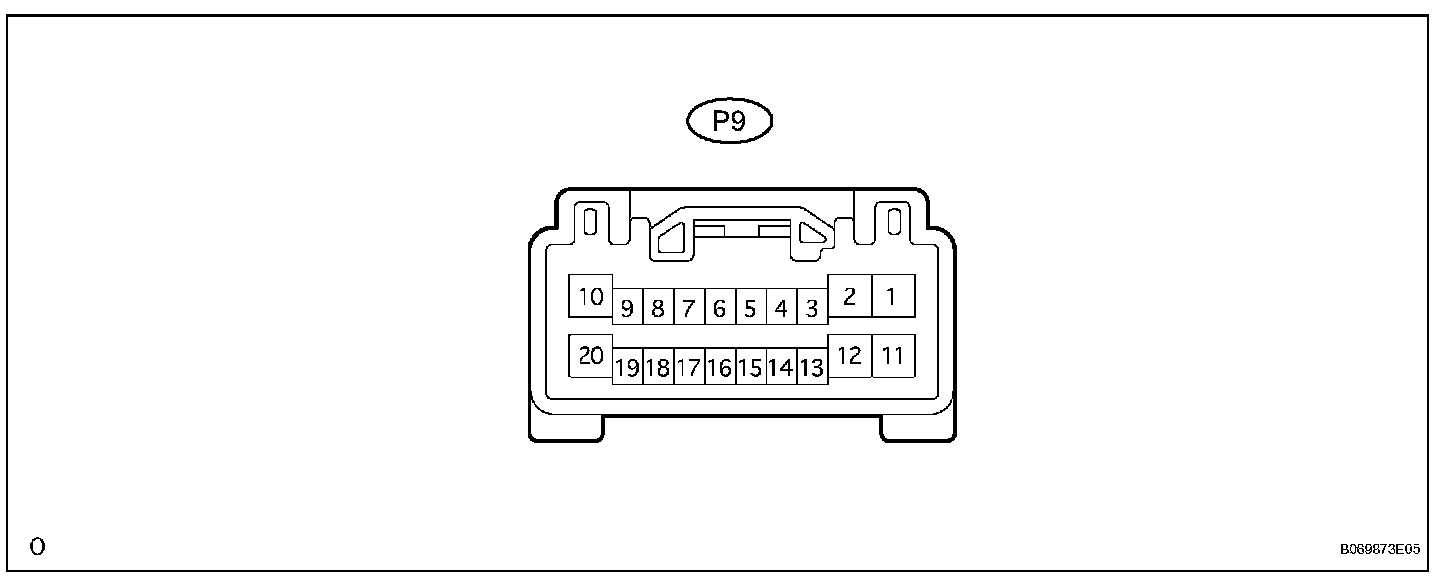

Terminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch Assembly:

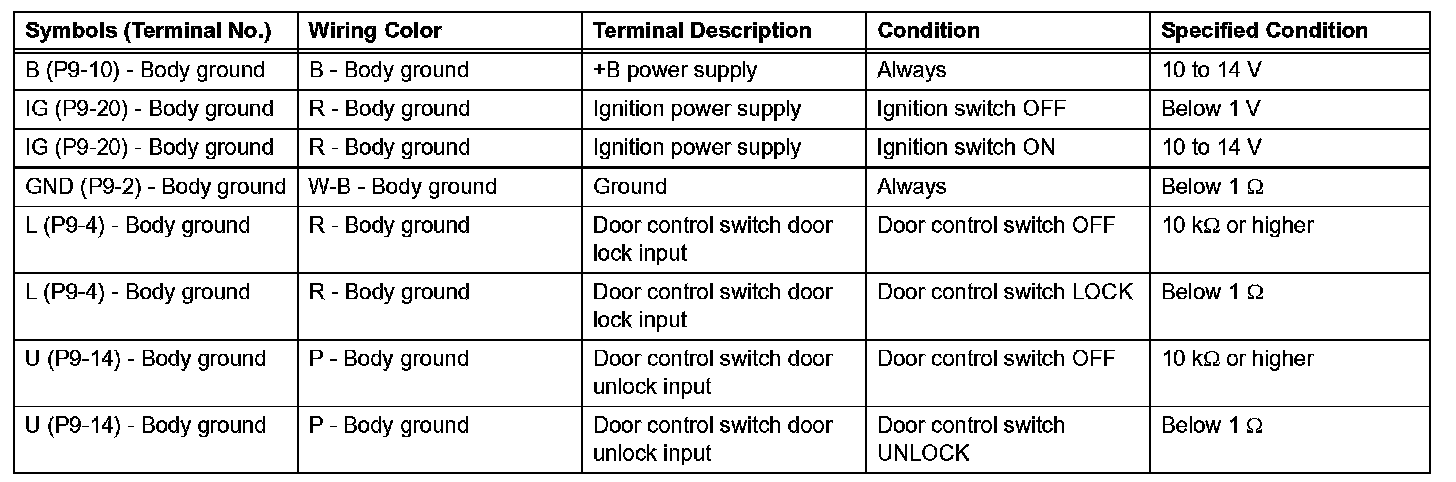

b. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
HINT:After disconnecting the P9 switch connector, be sure to reconnect it and then reset the power window motor.
Terminals Of Control Module/Pinouts - Check Instrument Panel Junction Block Assembly (Integration Relay):
2. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY (INTEGRATION RELAY)
a. Disconnect the 1A, 1B, 1E, 1G and 1H junction block connectors.
b. Disconnect the I6 relay connector.
Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assembly (Part 1):
Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assembly (Part 2):

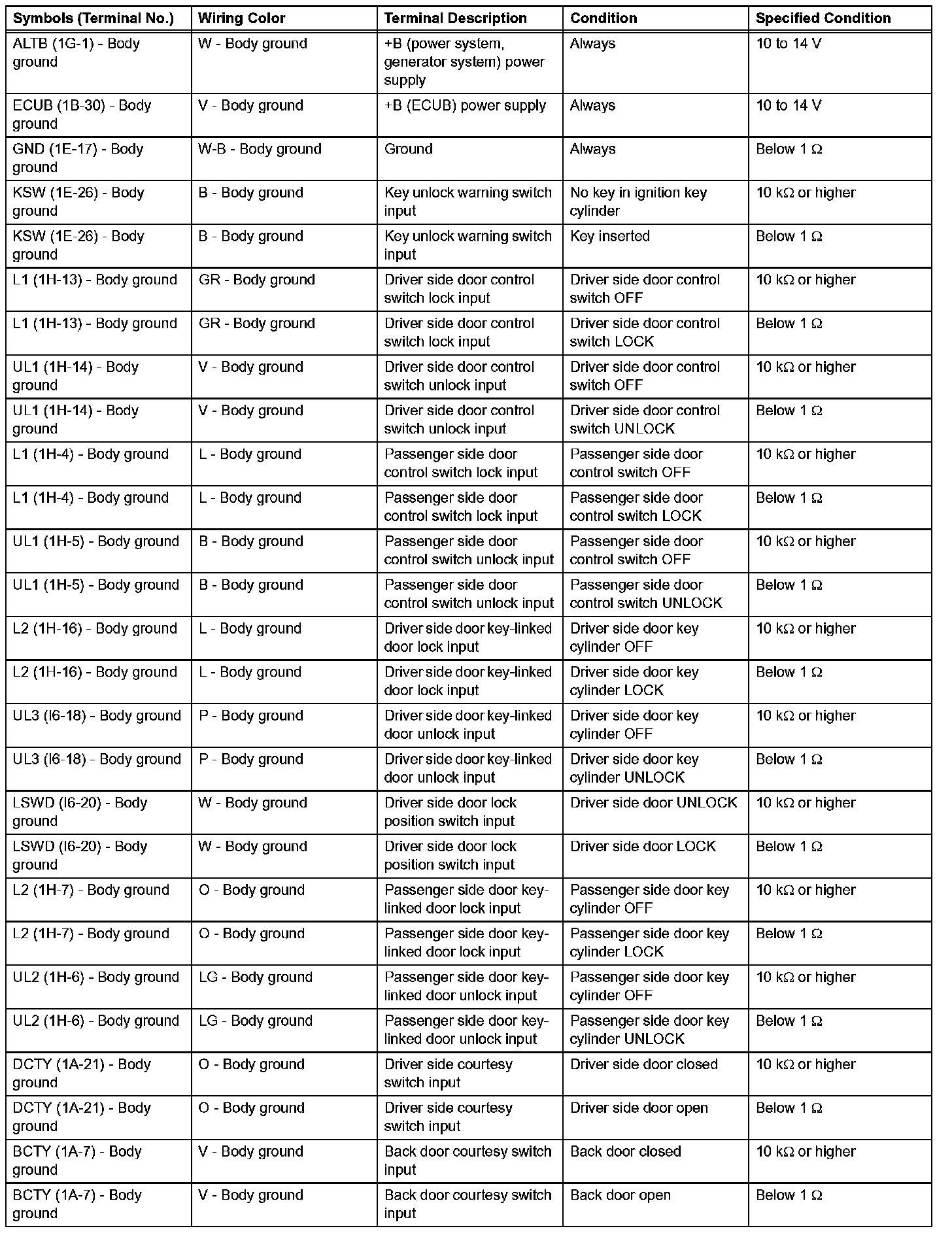

c. Measure the voltage and resistance of the wire harness side connectors.
If the result is not as specified, there may be a malfunction on the wire harness side.
d. Reconnect the 1A, 1B, 1E, 1G and 1H junction block connectors.
e. Reconnect the I6 relay connector.
Part 1:
Part 2:

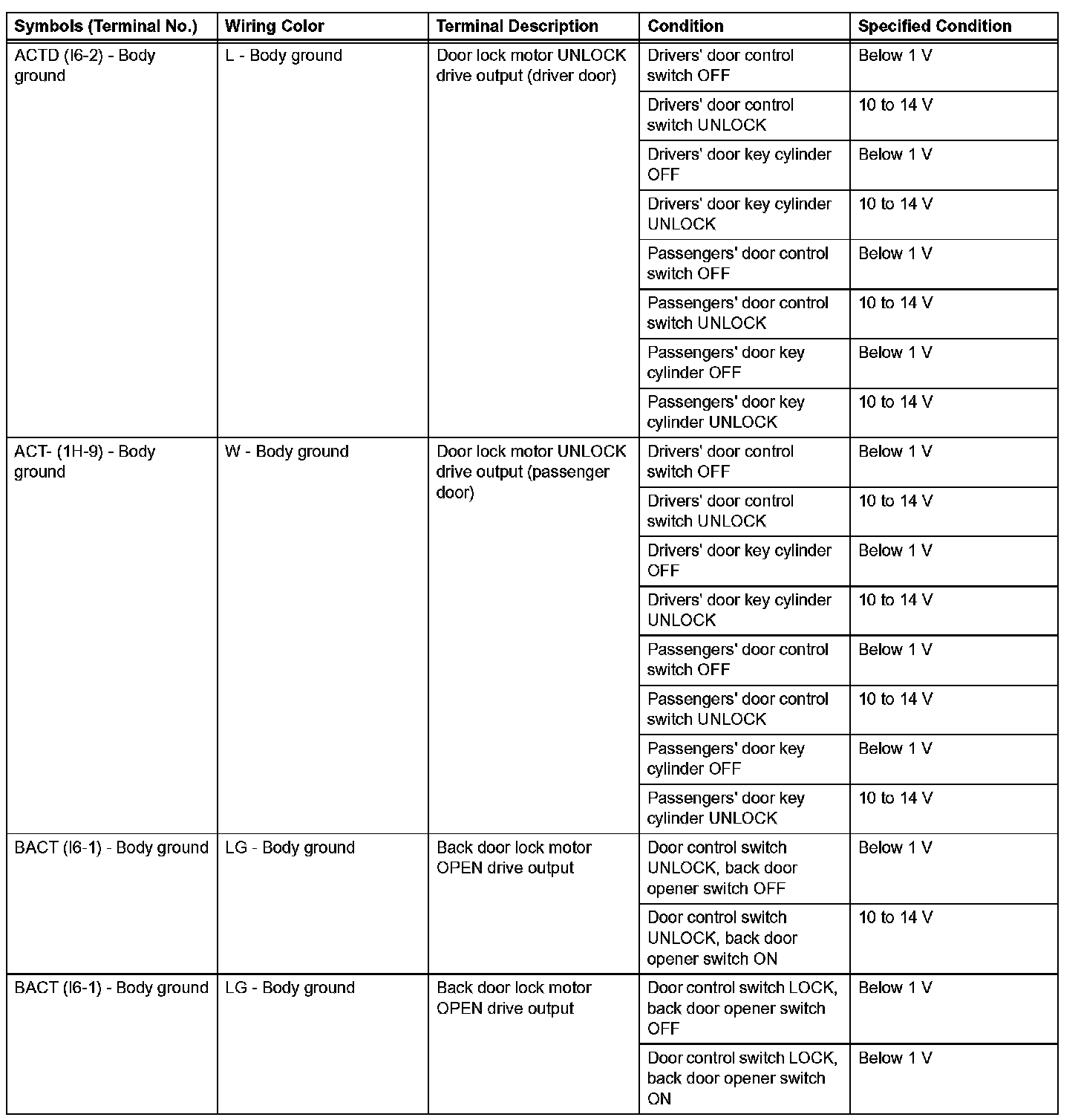

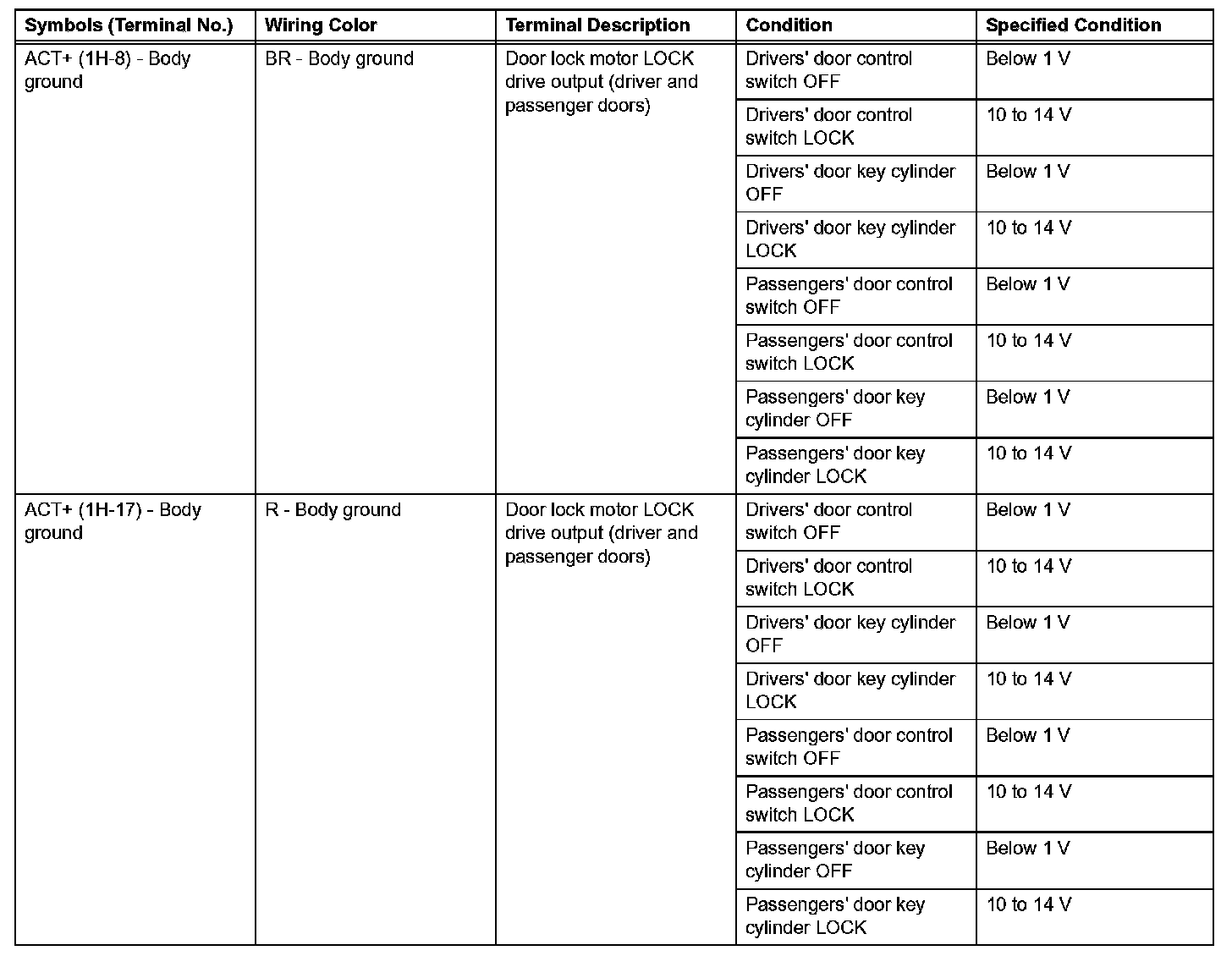

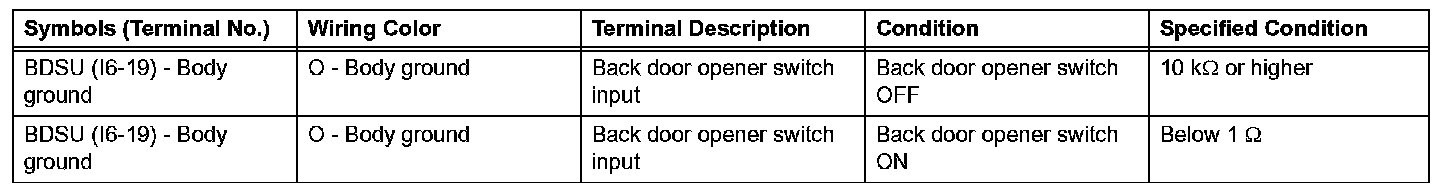

f. Measure the voltage of the connectors.
If the result is not as specified, the junction block (integration relay) may have a malfunction.
