Key Reminder Warning System
TERMINALS OF ECUTerminals Of Control Module/Pinouts - Check Combination Meter Assembly:
1. CHECK COMBINATION METER ASSEMBLY

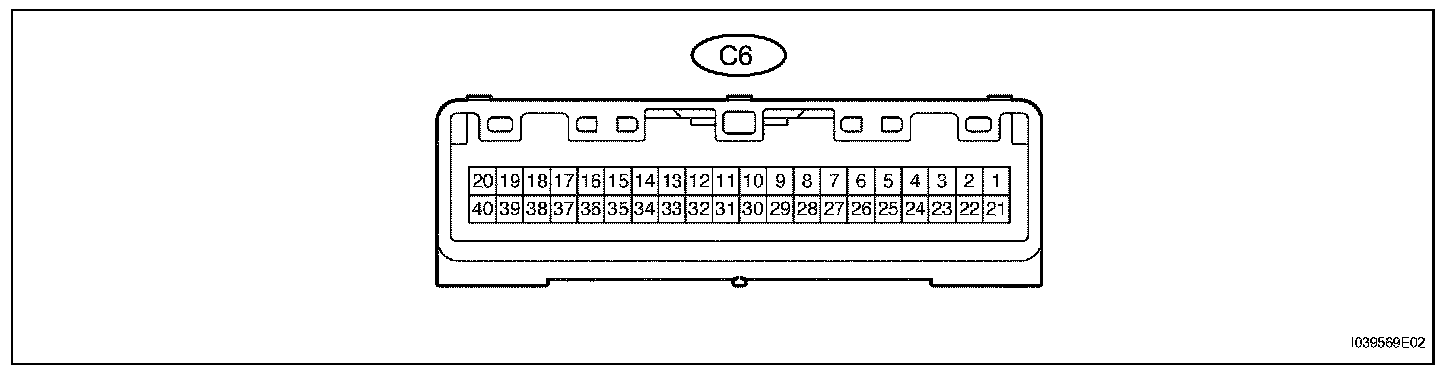

a. Disconnect the C6 meter connector.

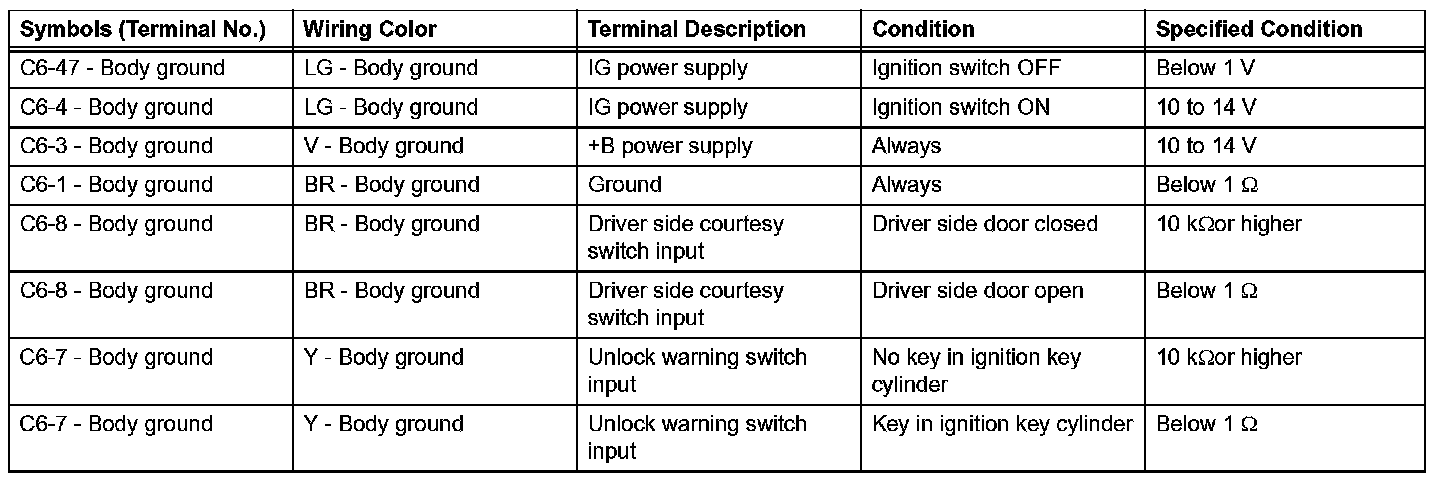

b. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
