Front Door: Testing and Inspection
FRONT DOORON-VEHICLE INSPECTION
1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH

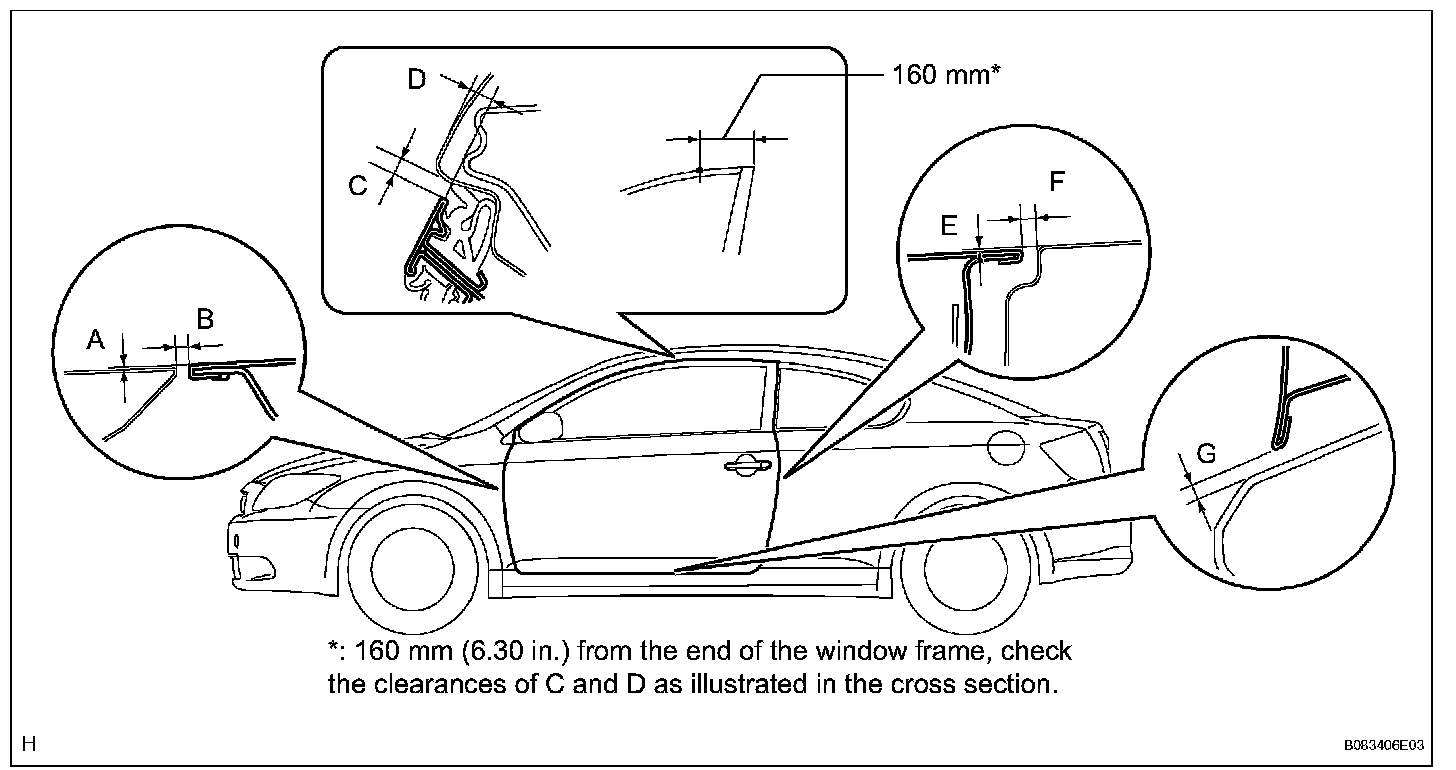

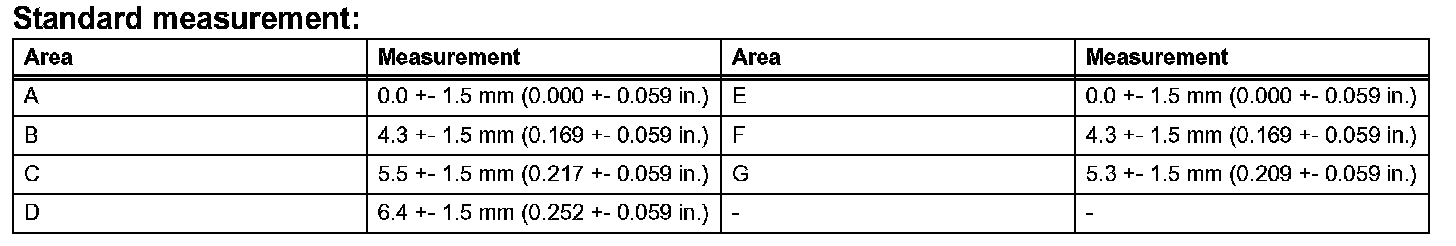

(a) Check that the clearance measurements of areas A to G are within the standard range.
ON-VEHICLE INSPECTION
1. INSPECT FRONT DOOR PANEL SUB-ASSEMBLY LH
(a) Check that the clearance measurements of areas A to G are within the standard range.
