Home >> Scion >> 2006 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests

Component Tests

INSPECTION

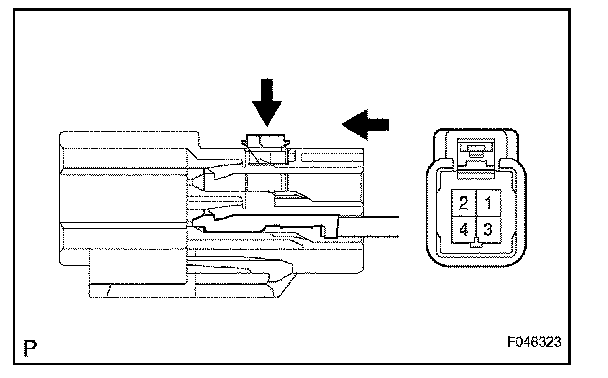

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

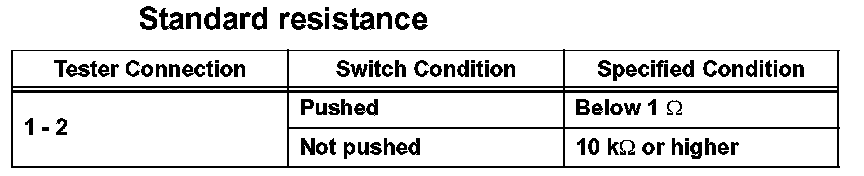

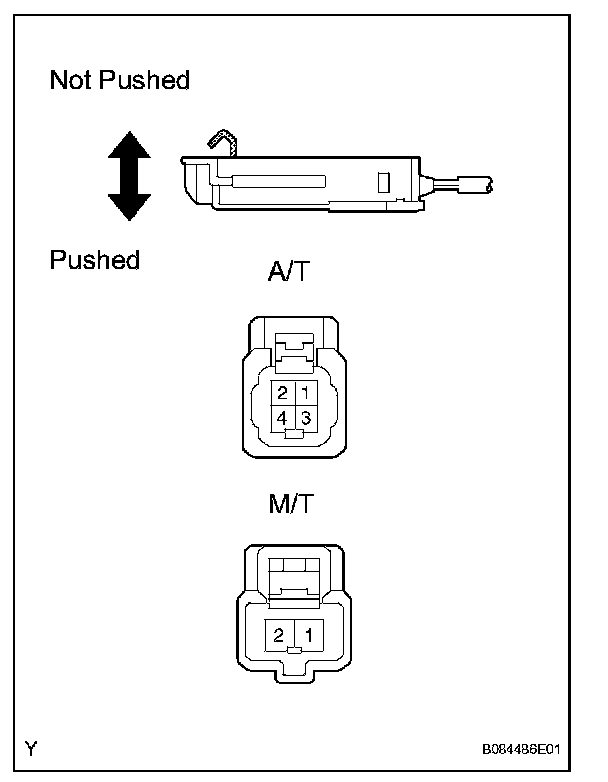

a. Measure the resistance of the switch.
If the result is not as specified, replace the switch assembly.
