Wireless Door Lock Control System

SYSTEM DESCRIPTION

1. This system locks and unlocks the vehicle's doors remotely. The wireless control system has the following features:
- The door control receiver performs the code identification process and the instrument panel junction block (integration relay) operates the door lock control. A serial data link is provided for communication between the receiver and integration relay.
- A key-integrated type transmitter is used and it has a door lock switch, door unlock switch and panic switch.

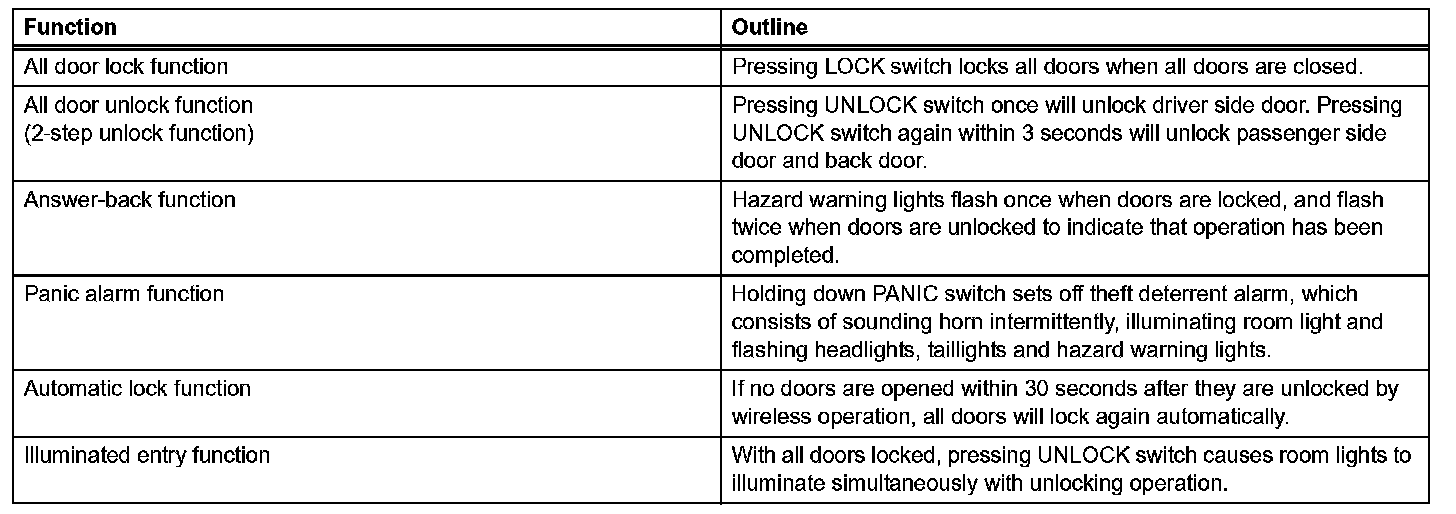

2. The wireless door lock control system has the functions:
