Antenna Amplifier: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE TONNEAU COVER ASSEMBLY
3. REMOVE DECK BOARD SUB-ASSEMBLY
4. REMOVE BACK DOOR SCUFF PLATE
5. REMOVE DECK FLOOR BOX LH
6. REMOVE DECK FLOOR BOX RH
7. REMOVE ROPE HOOK
8. REMOVE REAR NO.1 FLOOR BOARD
9. REMOVE REAR SEAT CUSHION ASSEMBLY
10. REMOVE REAR SEATBACK ASSEMBLY RH
11. REMOVE FRONT DOOR SCUFF PLATE RH
12. REMOVE NO.1 LUGGAGE COMPARTMENT TRIM HOOK
13. REMOVE NO.1 SIDE TRIM ASSEMBLY RH
14. REMOVE NO.2 LUGGAGE COMPARTMENT TRIM HOOK
15. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH
16. REMOVE ROOF ANTENNA POLE SUB-ASSEMBLY
17. REMOVE ANTENNA NUT

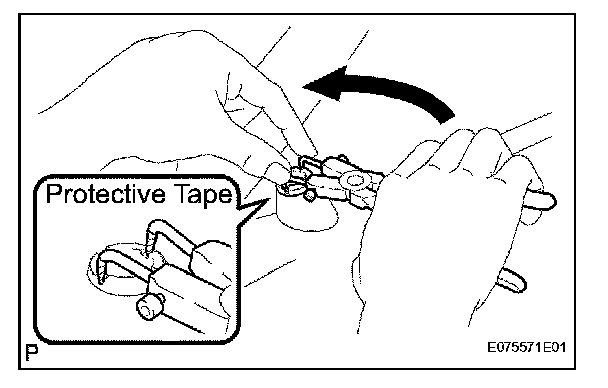

a. Using snap ring pliers, remove the antenna nut as shown in the illustration.
HINT: Wrap the tip of the snap ring pliers with protective tape to prevent damage to the parts.
18. REMOVE ANTENNA ORNAMENT

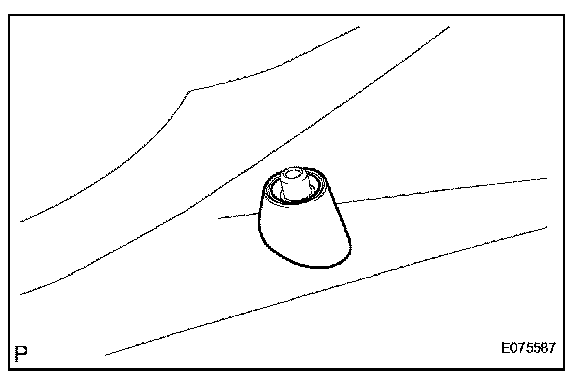

a. Remove the antenna ornament.
19. REMOVE AMPLIFIER ANTENNA ASSEMBLY
a. Disconnect the connector.

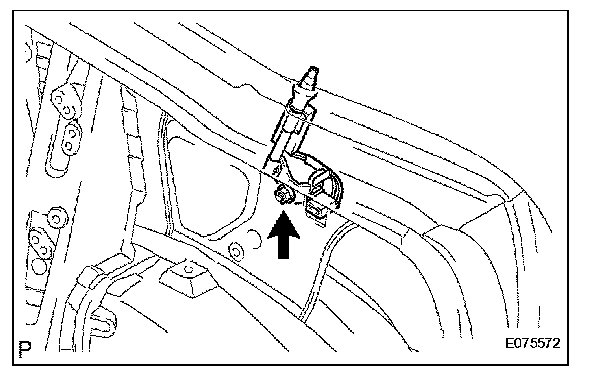

b. Remove the nut.

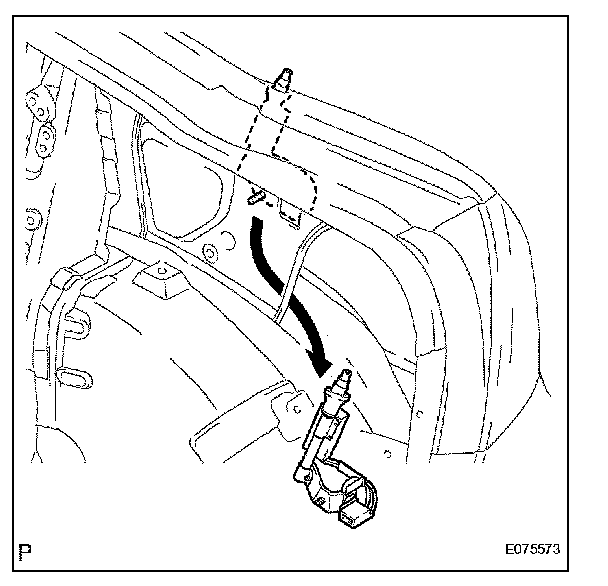

c. Remove the amplifier antenna in the direction shown by the arrow in the illustration.
INSTALLATION
1. INSTALL AMPLIFIER ANTENNA ASSEMBLY
a. Install the amplifier antenna to its original position.

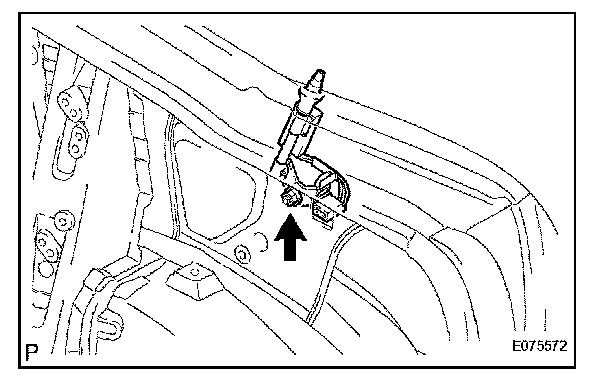

b. Install the nut.
c. Connect the connector.
2. INSTALL ANTENNA ORNAMENT

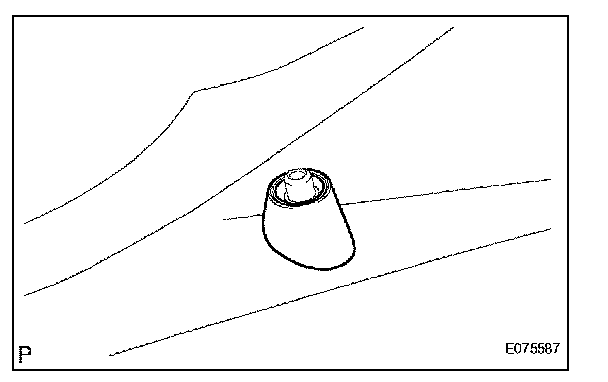

a. Install the antenna ornament.
3. INSTALL ANTENNA NUT
a. Using snap ring pliers, install the antenna nut.
HINT: Wrap the tip of the snap ring pliers with protective tape to prevent damage to the parts.
4. INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY
5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
6. INSTALL NO.1 LUGGAGE COMPARTMENT TRIM HOOK
7. INSTALL NO.1 SIDE TRIM ASSEMBLY RH
8. INSTALL NO.2 LUGGAGE COMPARTMENT TRIM HOOK
9. INSTALL FRONT DOOR SCUFF PLATE RH
10. INSTALL REAR SEATBACK ASSEMBLY RH
11. INSTALL REAR SEAT CUSHION ASSEMBLY
12. INSTALL REAR NO.1 FLOOR BOARD
13. INSTALL ROPE HOOK
14. INSTALL DECK FLOOR BOX RH
15. INSTALL DECK FLOOR BOX LH
16. INSTALL BACK DOOR SCUFF PLATE
17. INSTALL DECK BOARD SUB-ASSEMBLY
18. INSTALL TONNEAU COVER ASSEMBLY
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
20. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
