P2716

DTC P2716 Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

DESCRIPTION

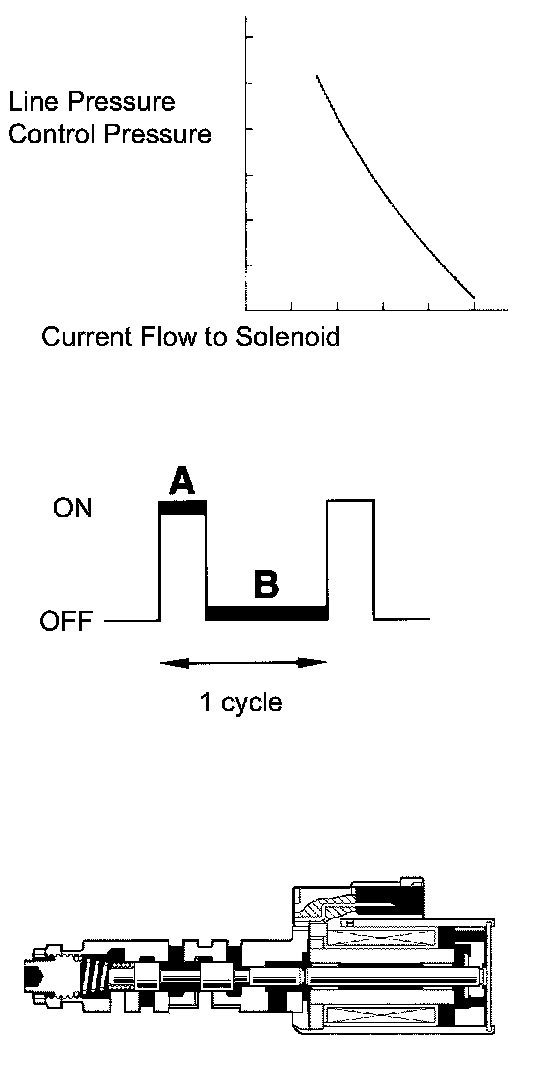

The throttle pressure that is applied to the primary regulator valve (which modulates the line pressure) causes the solenoid valve SLT, under electronic control, to precisely modulate and generate the line pressure according to the extent that the accelerator pedal is depressed or the output of engine power.

This controls the line pressure and provides smooth shifting characteristics.

Upon receiving a signal of the throttle valve opening angle, the ECM controls the line pressure by sending a predetermined duty ratio* to the solenoid valve, modulating the line pressure and generating throttle pressure.

P2716:

HINT: *: The duty ratio is the ratio of the current ON time (A) to the total of the current ON and OFF time (A + B). Duty Ratio (%) = A / (A + B) x 100

Reference::

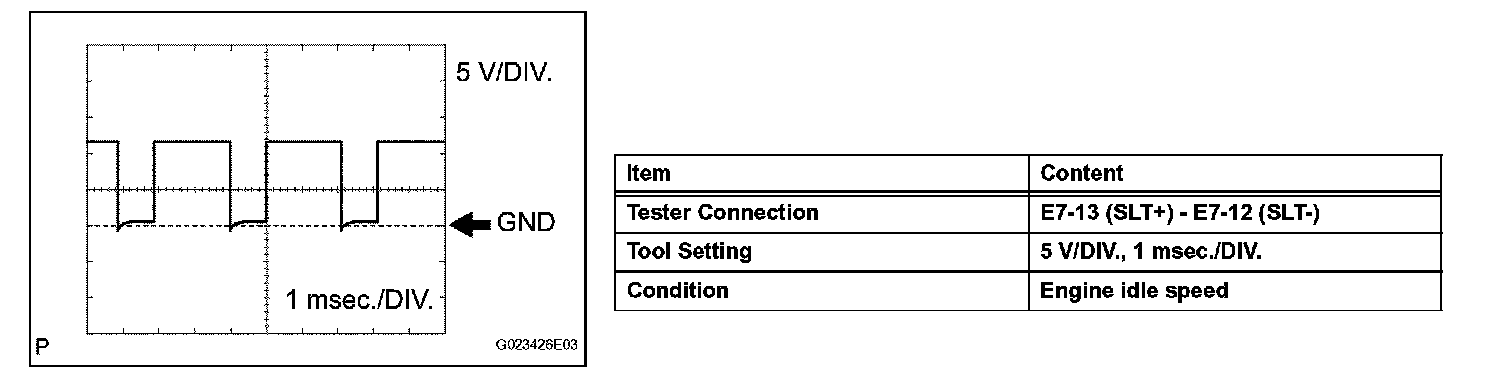

1. Reference: Inspect using an oscilloscope.
Check the waveform of the ECM connector.
OK: Refer to illustration.

MONITOR DESCRIPTION

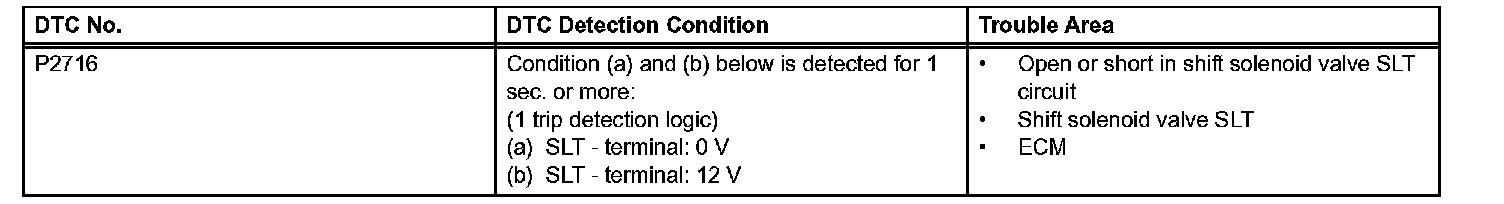

When an open or short in the linear solenoid valve SLT circuit is detected, the ECM interprets this as a fault. The ECM will illuminate the MIL and store the DTC.

MONITOR STRATEGY:

MONITOR STRATEGY

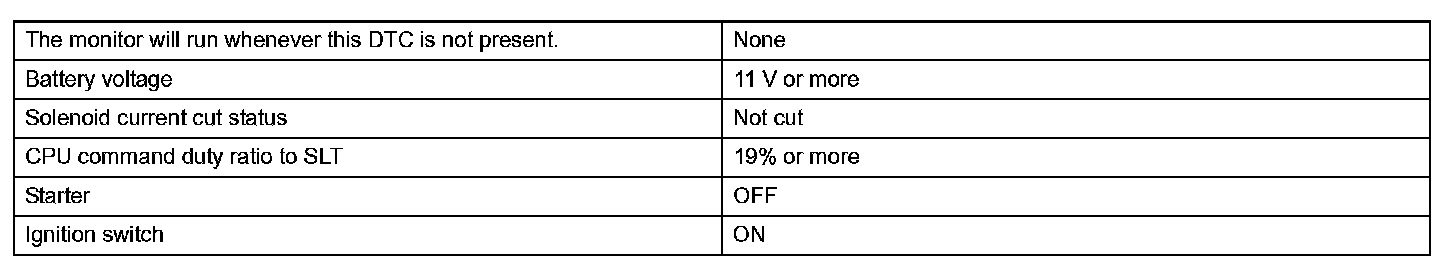

TYPICAL ENABLING CONDITIONS:

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS:

TYPICAL MALFUNCTION THRESHOLDS

COMPONENT OPERATING RANGE:

COMPONENT OPERATING RANGE

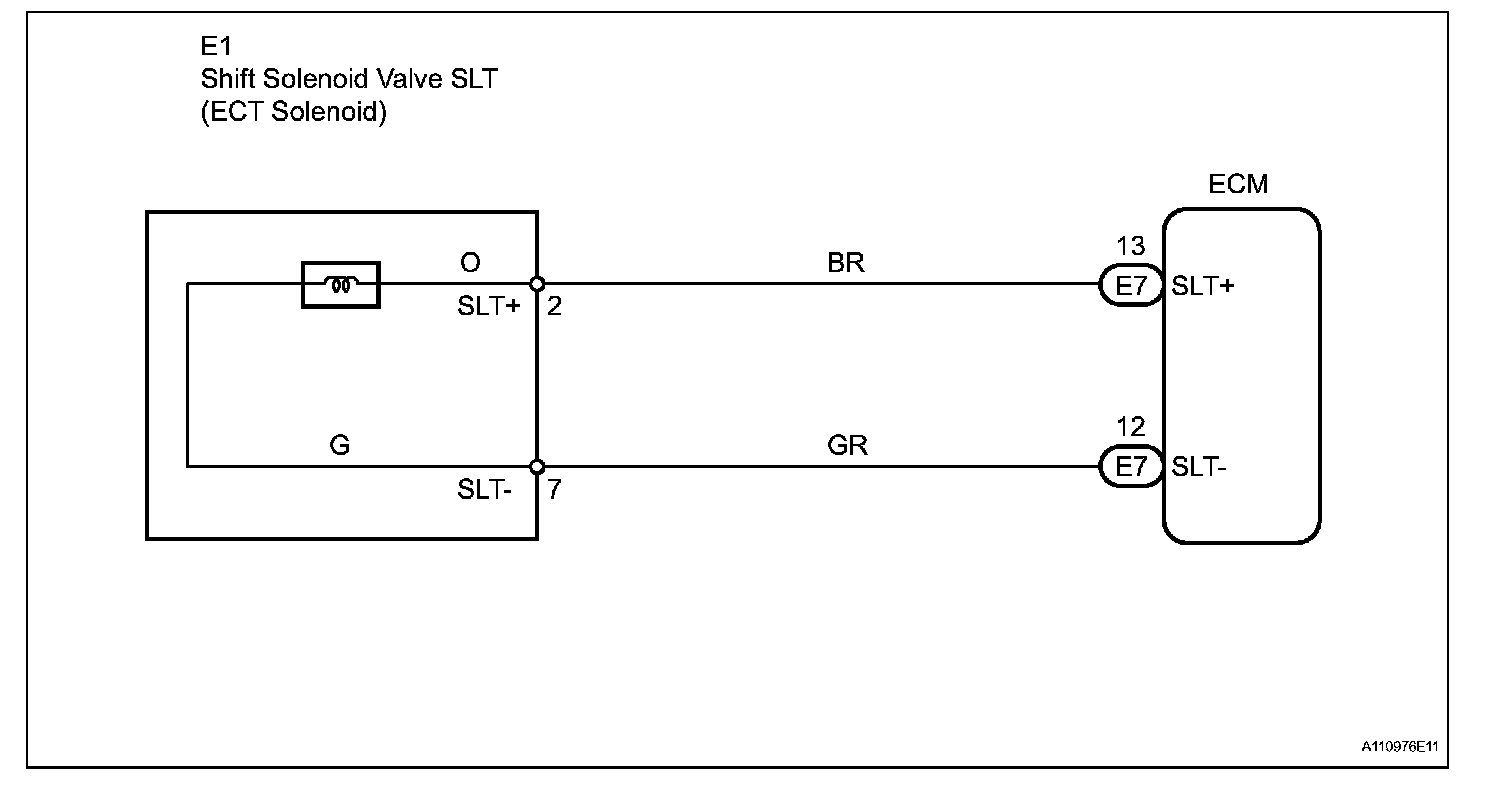

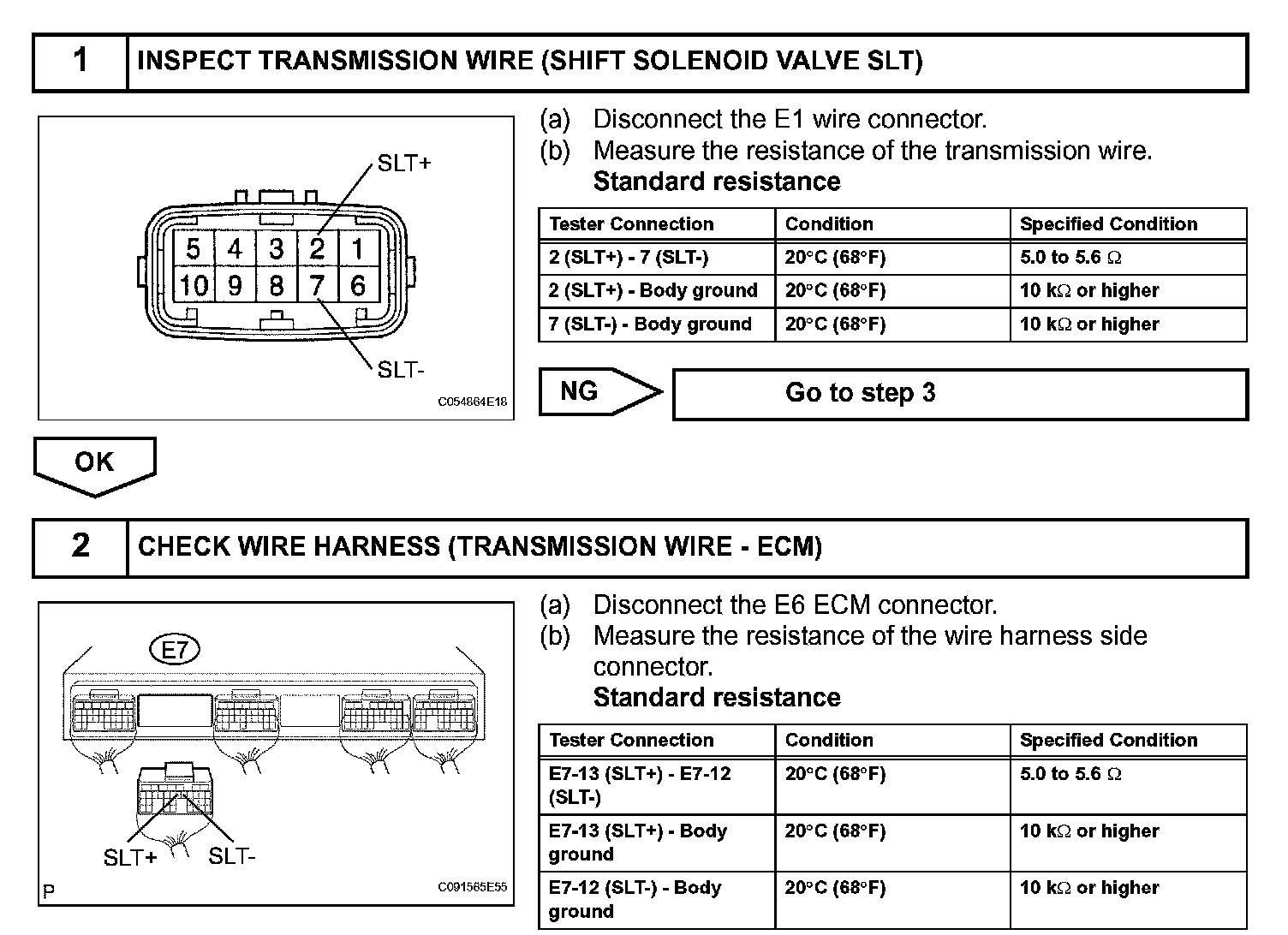

WIRING DIAGRAM:

WIRING DIAGRAM
