DTC 37

DTC B1655/37 Driver Side Seat Belt Buckle Switch Circuit Malfunction

DESCRIPTION

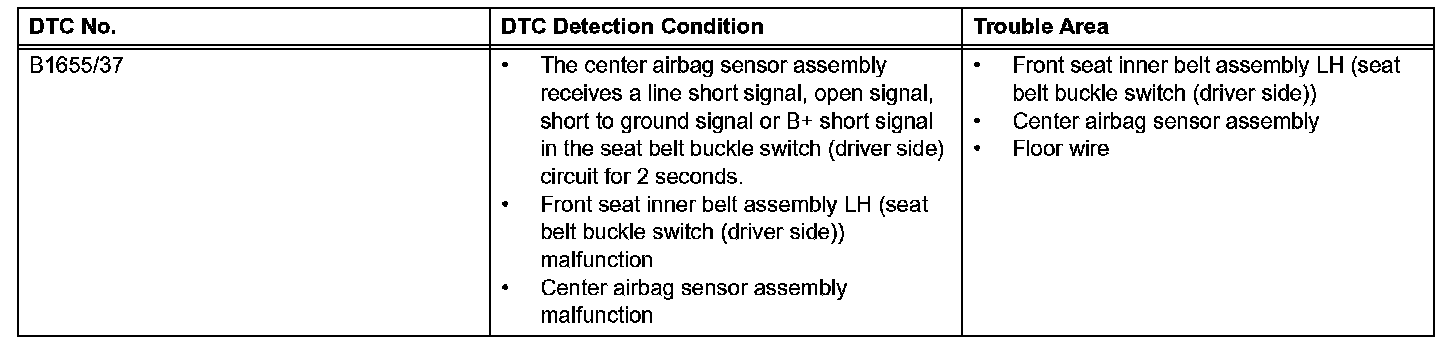

DTC Detection Condition:

The seat belt buckle switch (driver side) circuit consists of the center airbag sensor and the front seat inner belt LH (seat belt buckle switch (driver side)).
DTC B1655/37 is recorded when a malfunction is detected in the seat belt buckle switch (driver side) circuit.

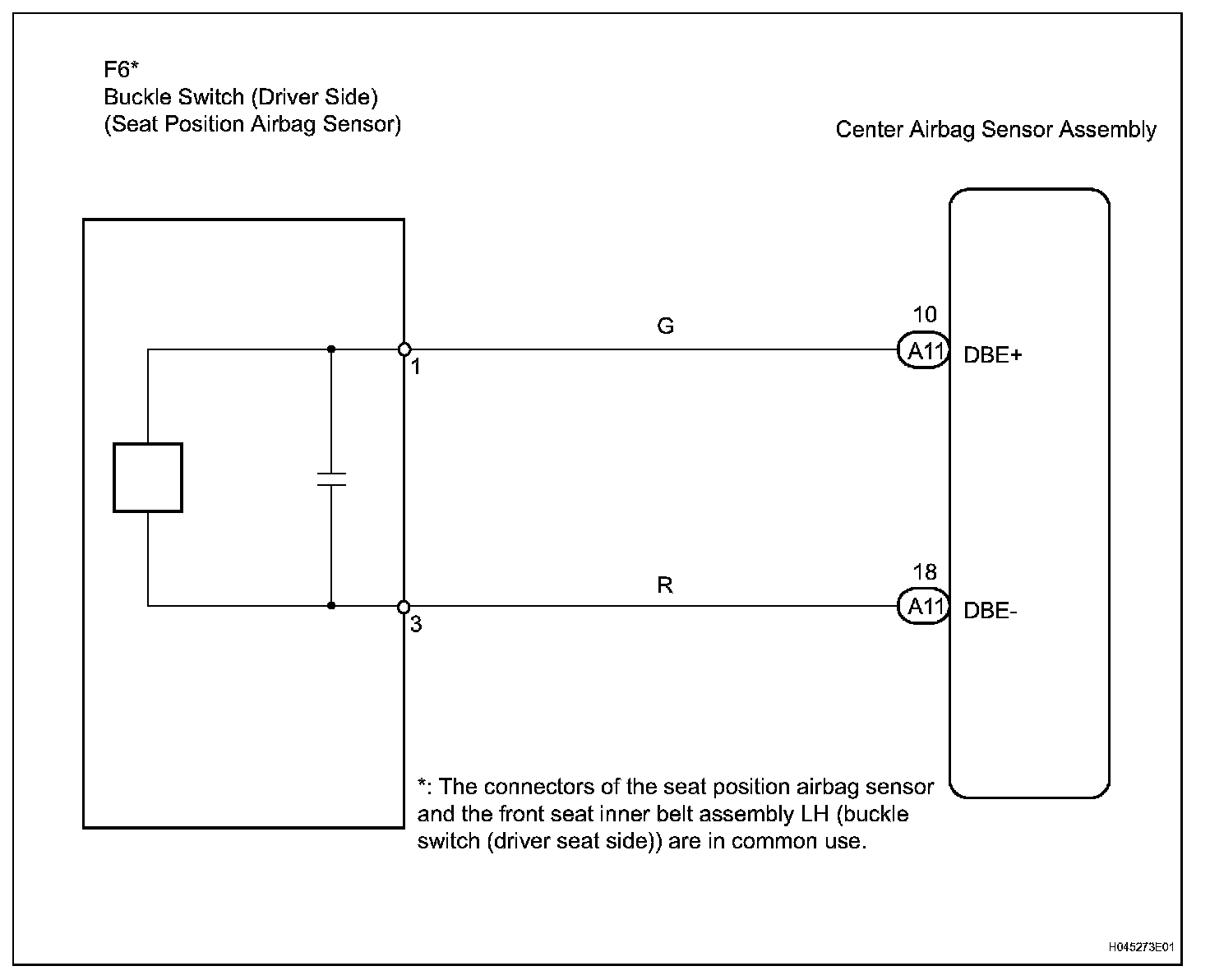

Wiring Diagram:

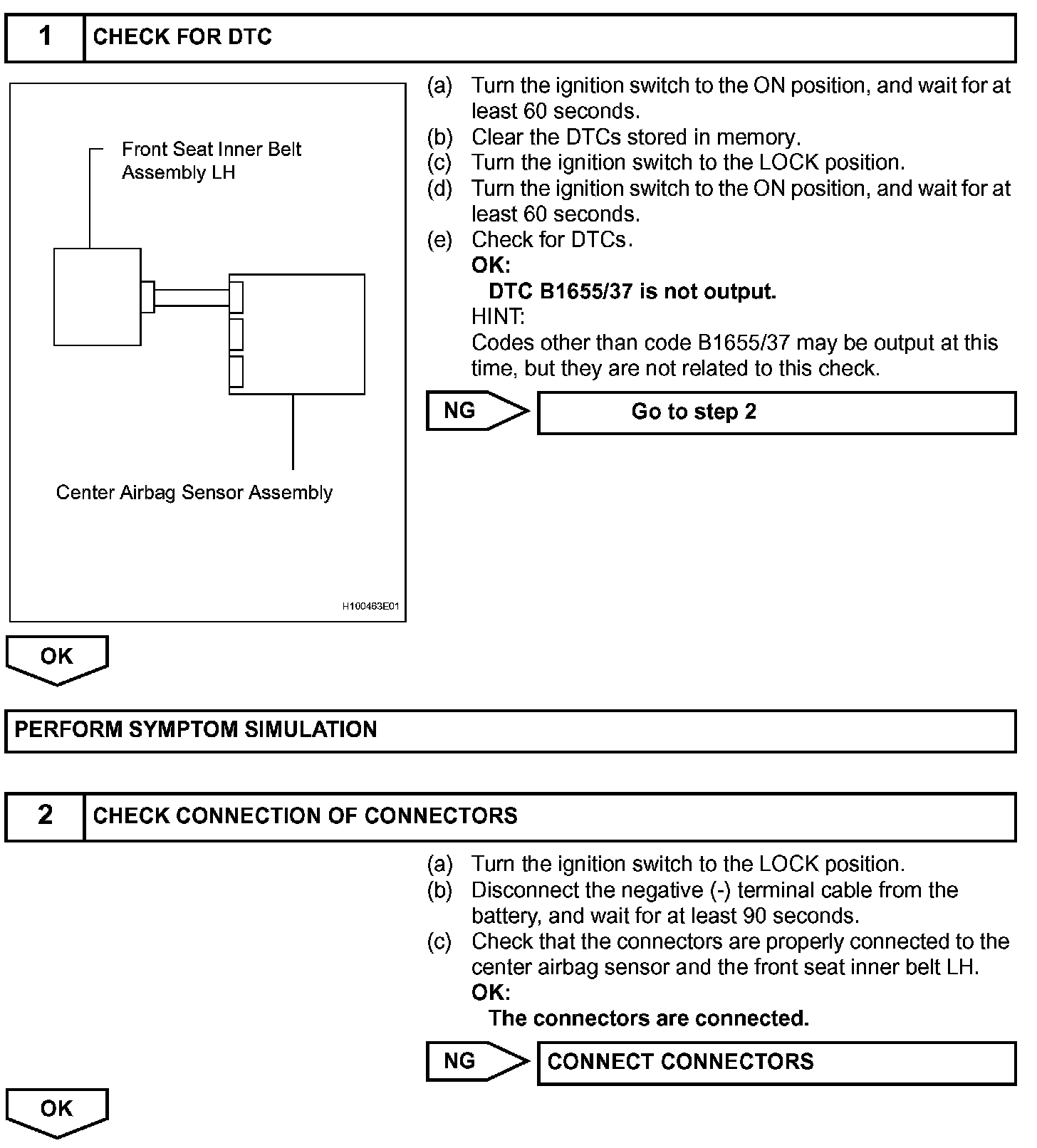

Step 1-2:

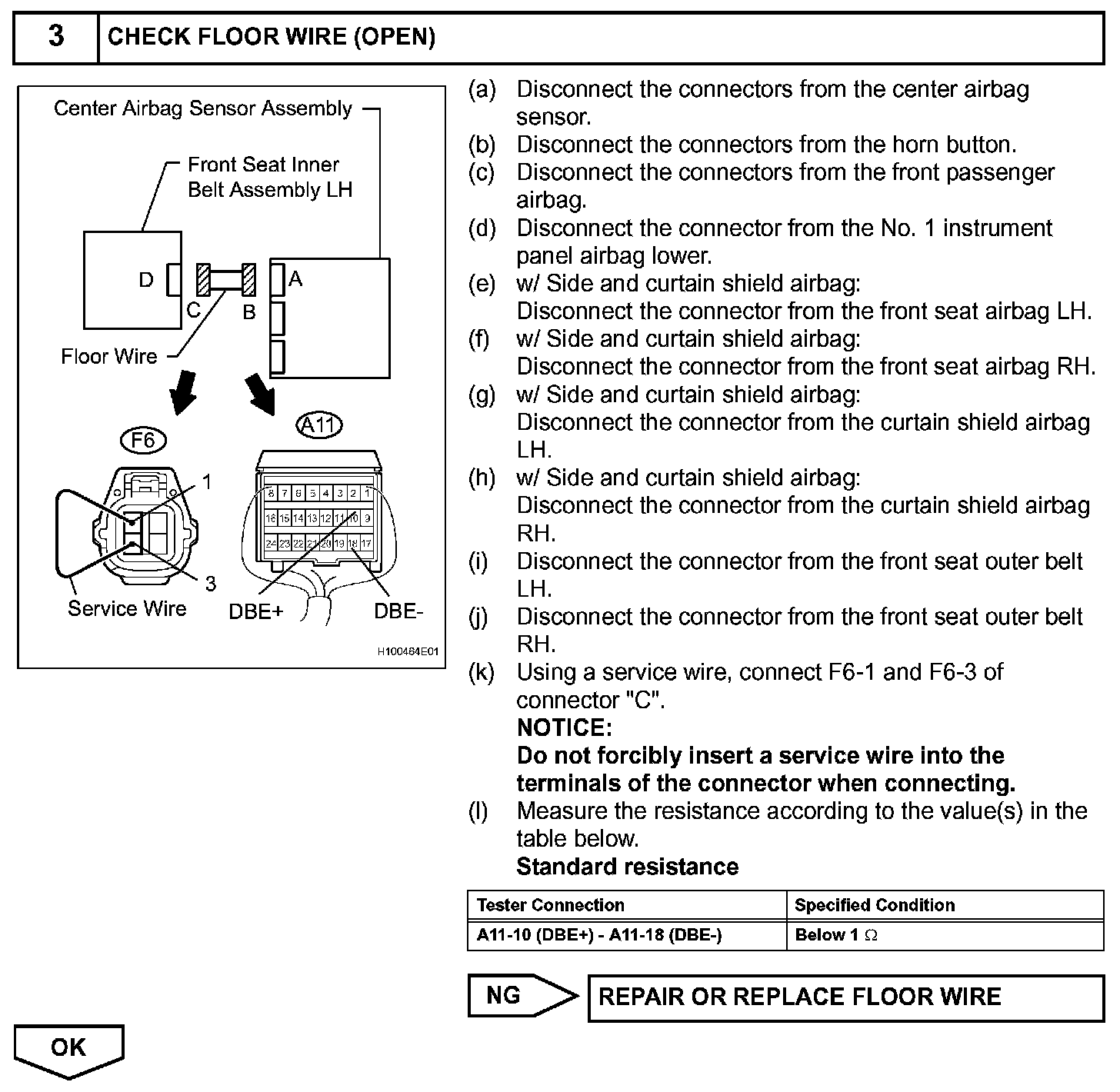

Step 3:

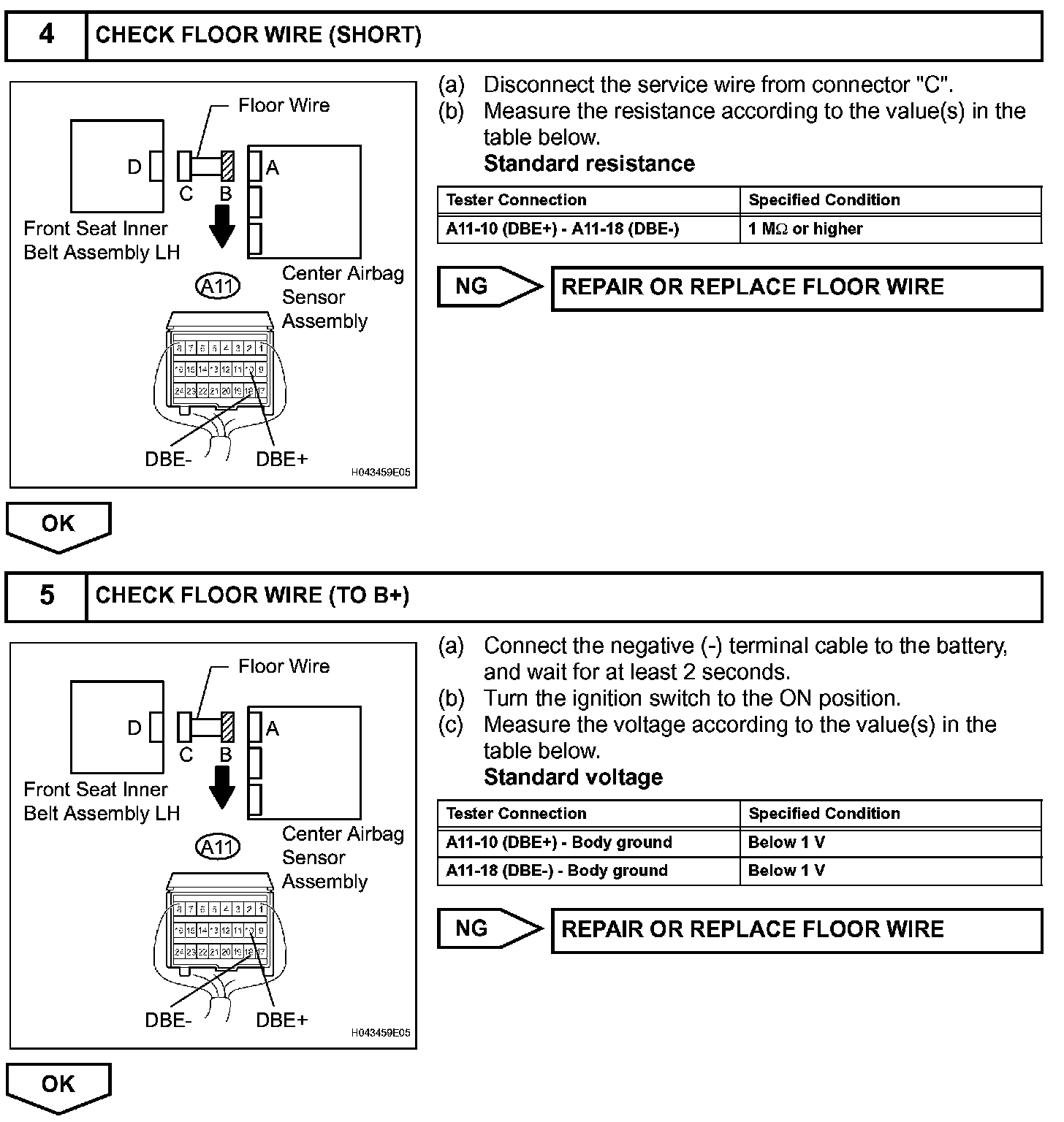

Step 4-5:

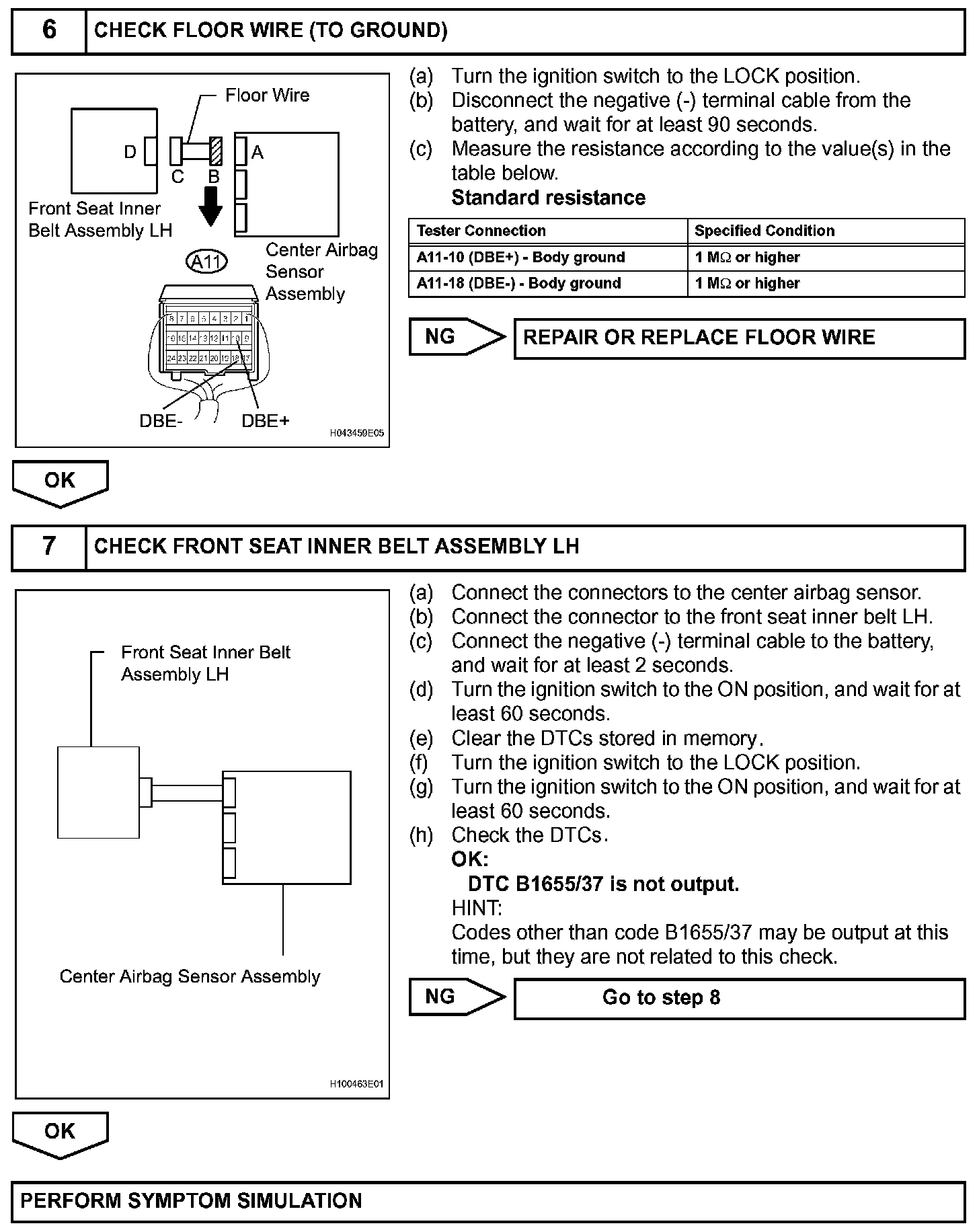

Step 6-7:

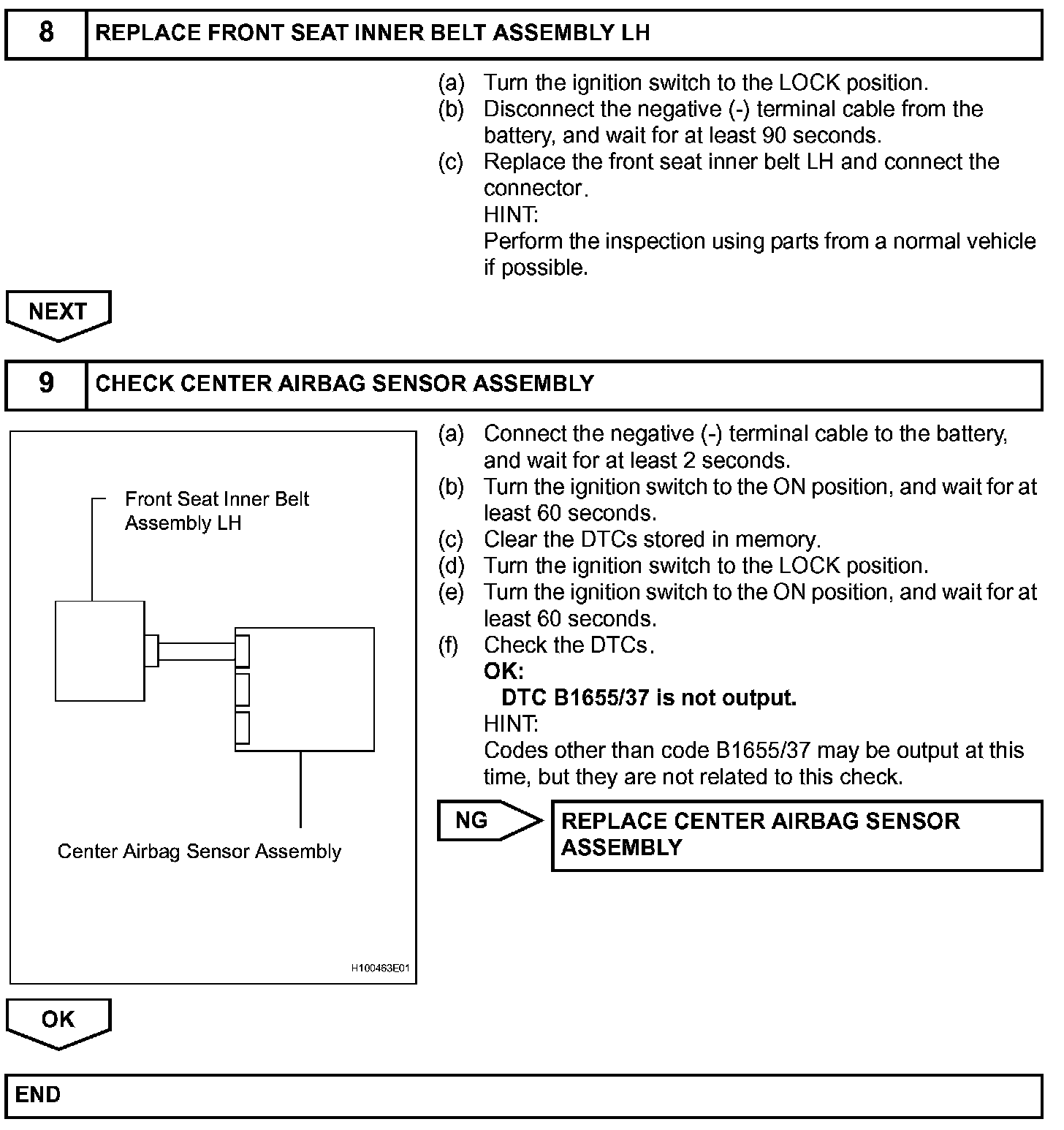

Step 8-9:

INSPECTION PROCEDURE
