A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Airbag System
Airbag System

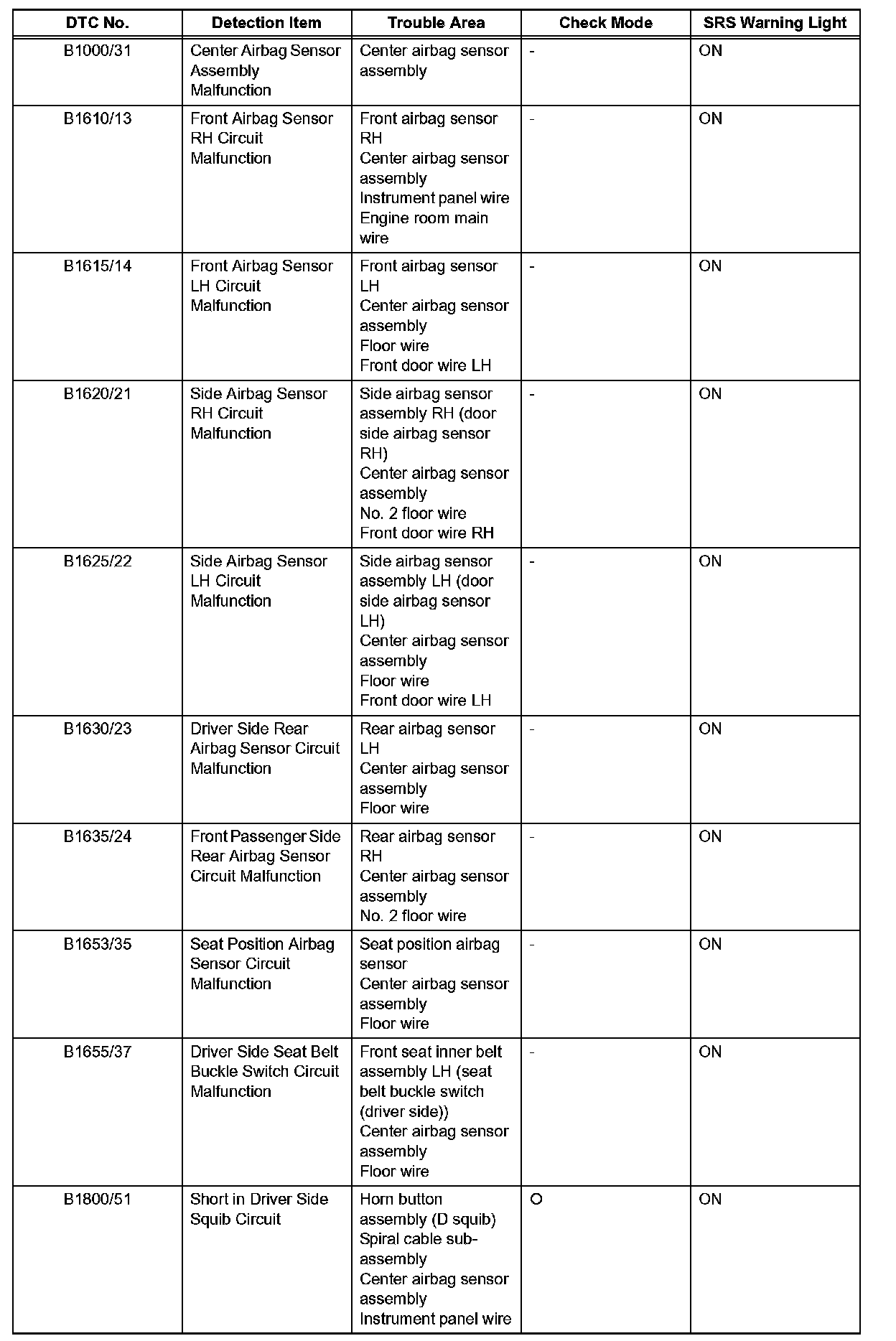

B1000/31-1800/51:

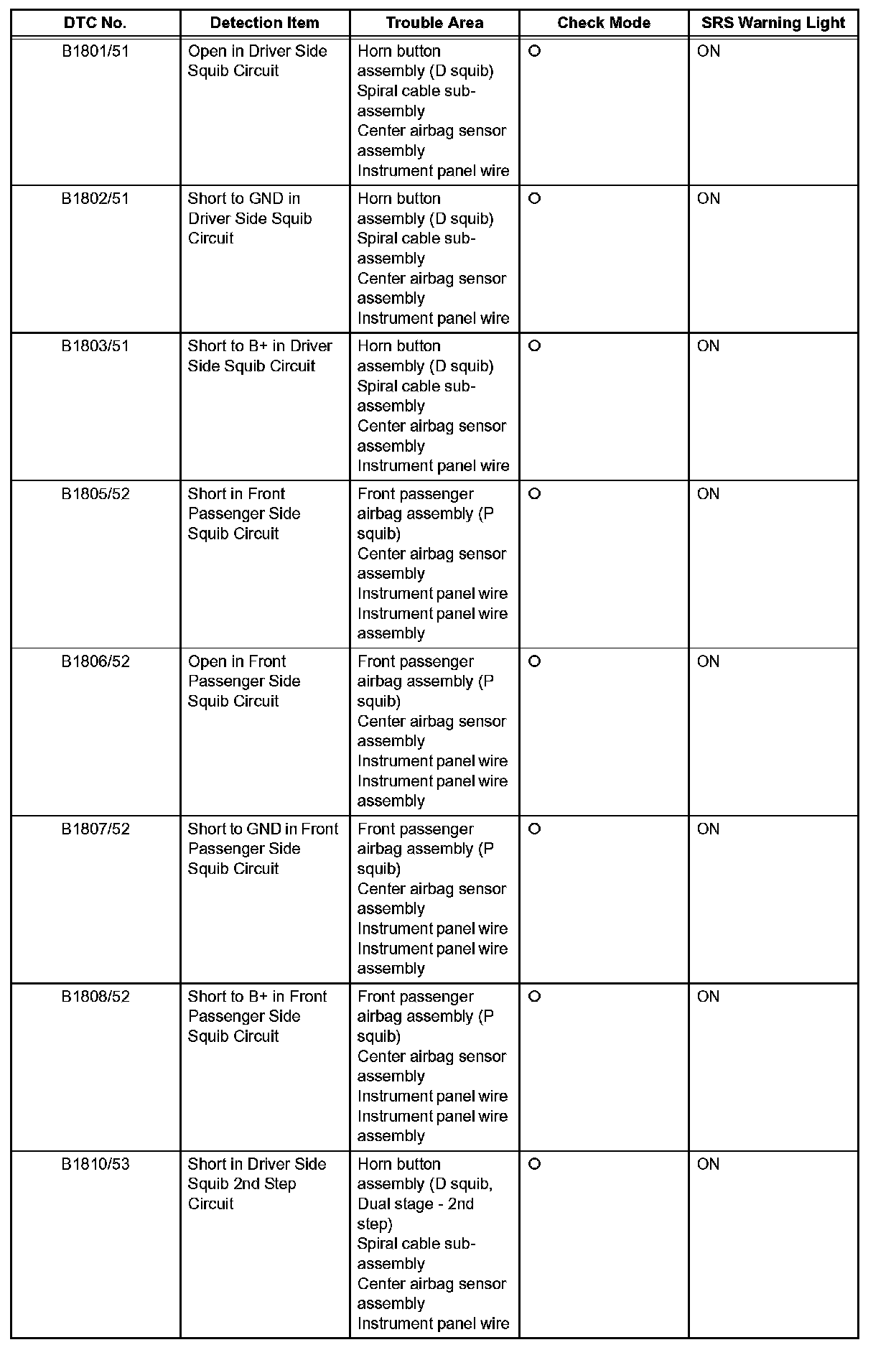

B1801/51-1810/53:

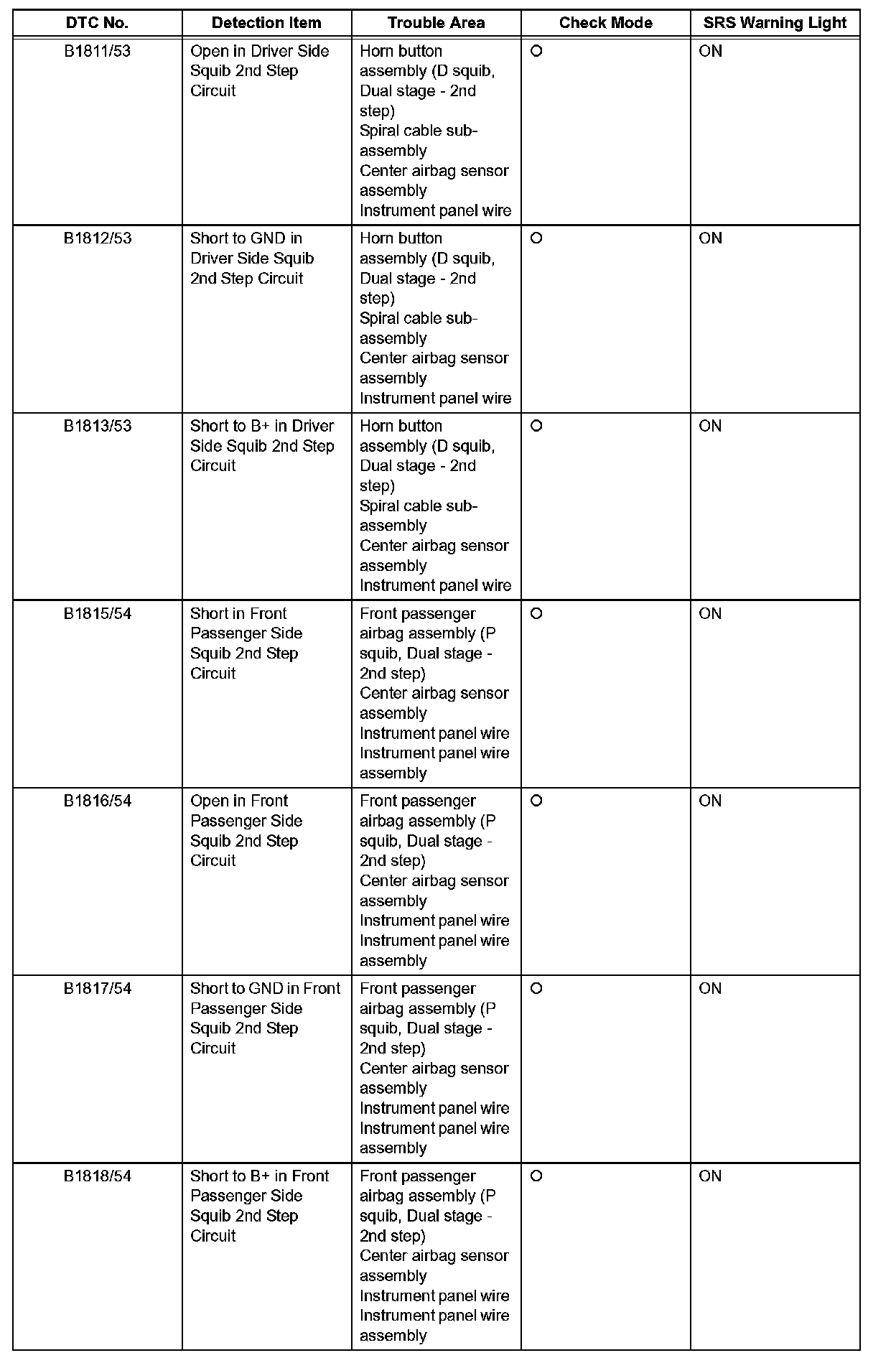

B1811/53-1818/54:

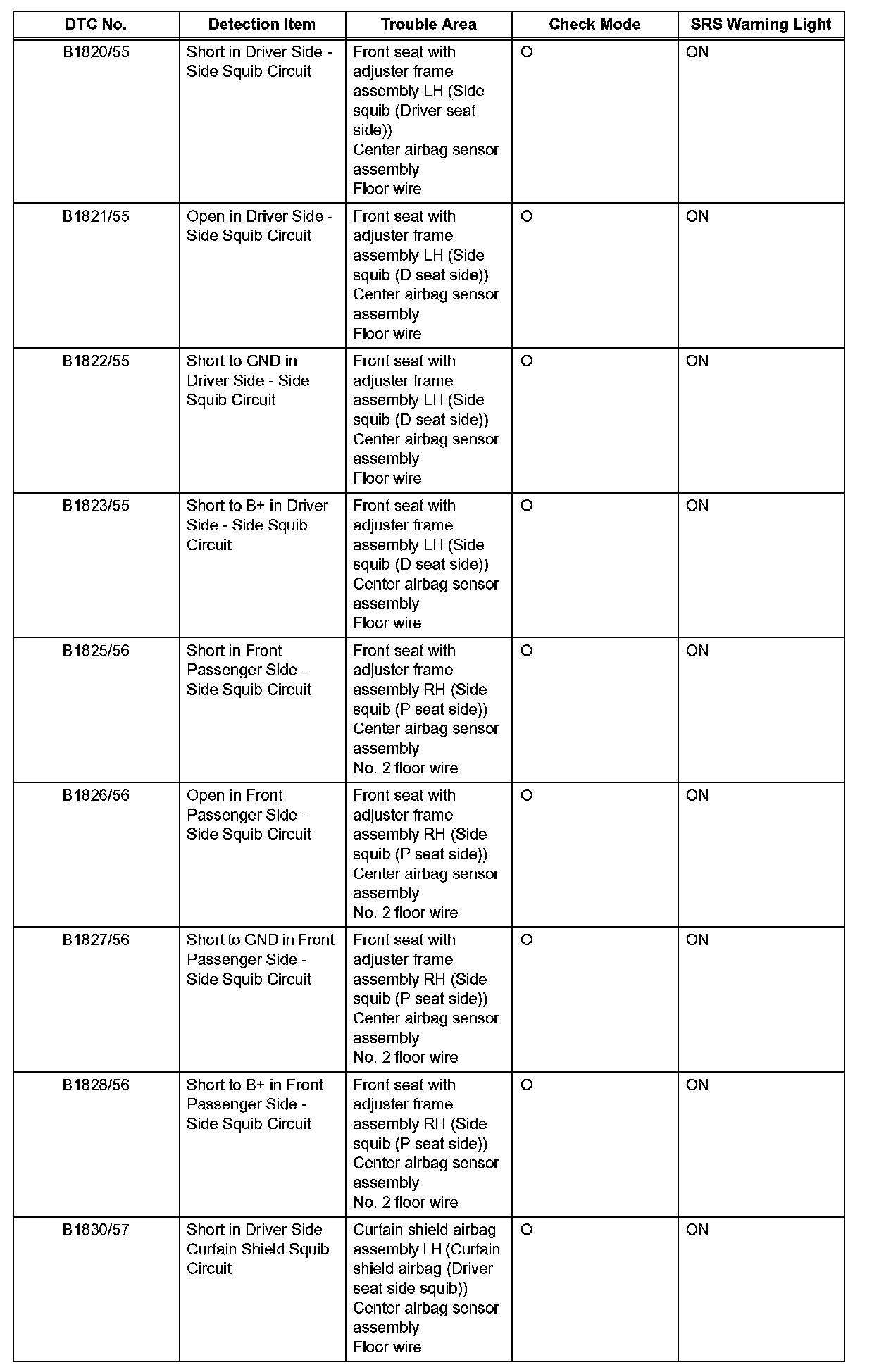

B1820/55-1830/57:

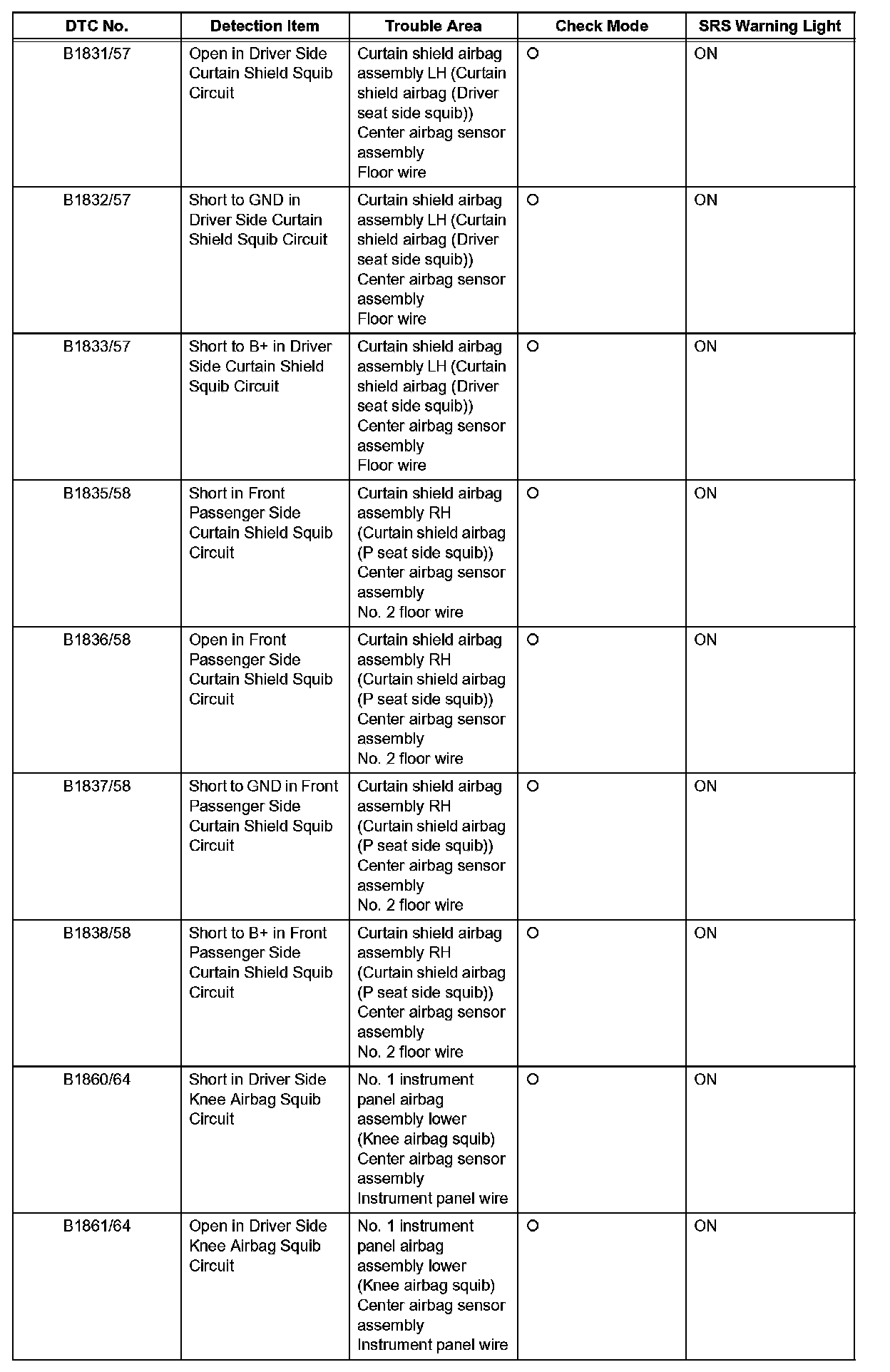

B1831/57-1861/64:

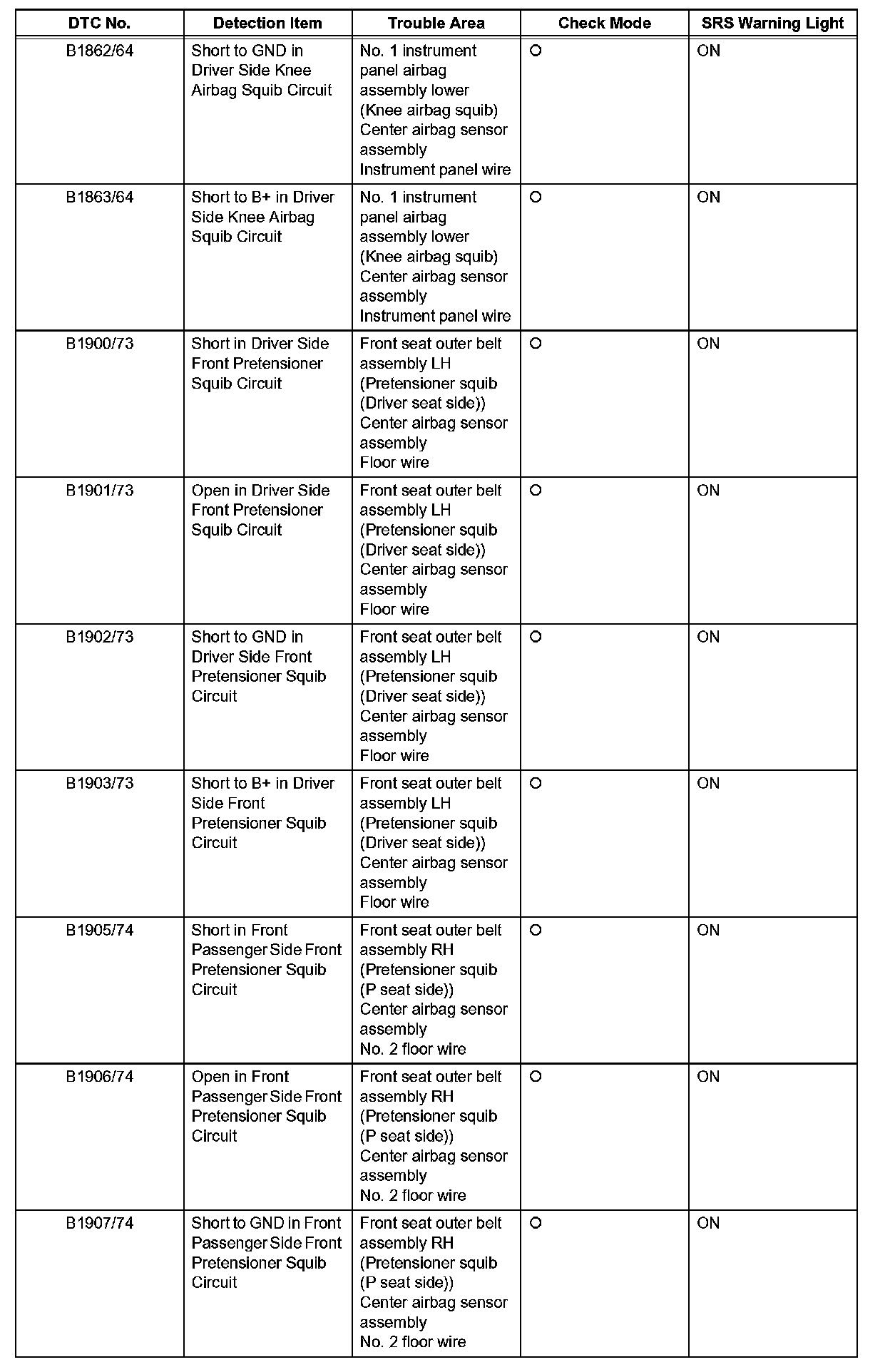

B1862/64-1907/74:

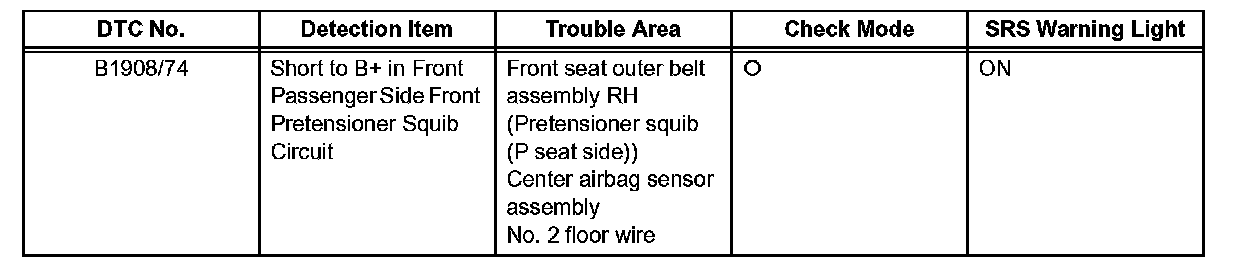

B1908/74:
