B2784

DTC B2784 Antenna Coil Open / Short

DESCRIPTION

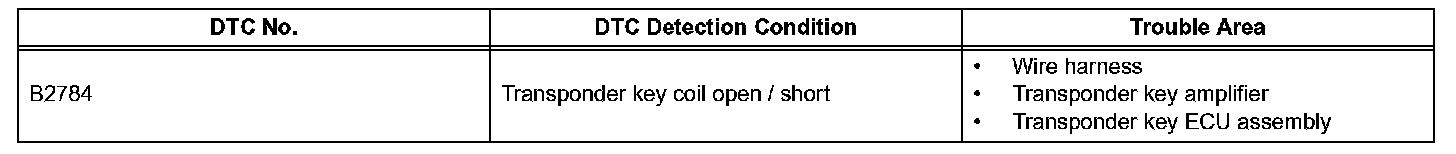

DTC Detection Condition:

This DTC is detected when the transponder key coil is open or short circuited.

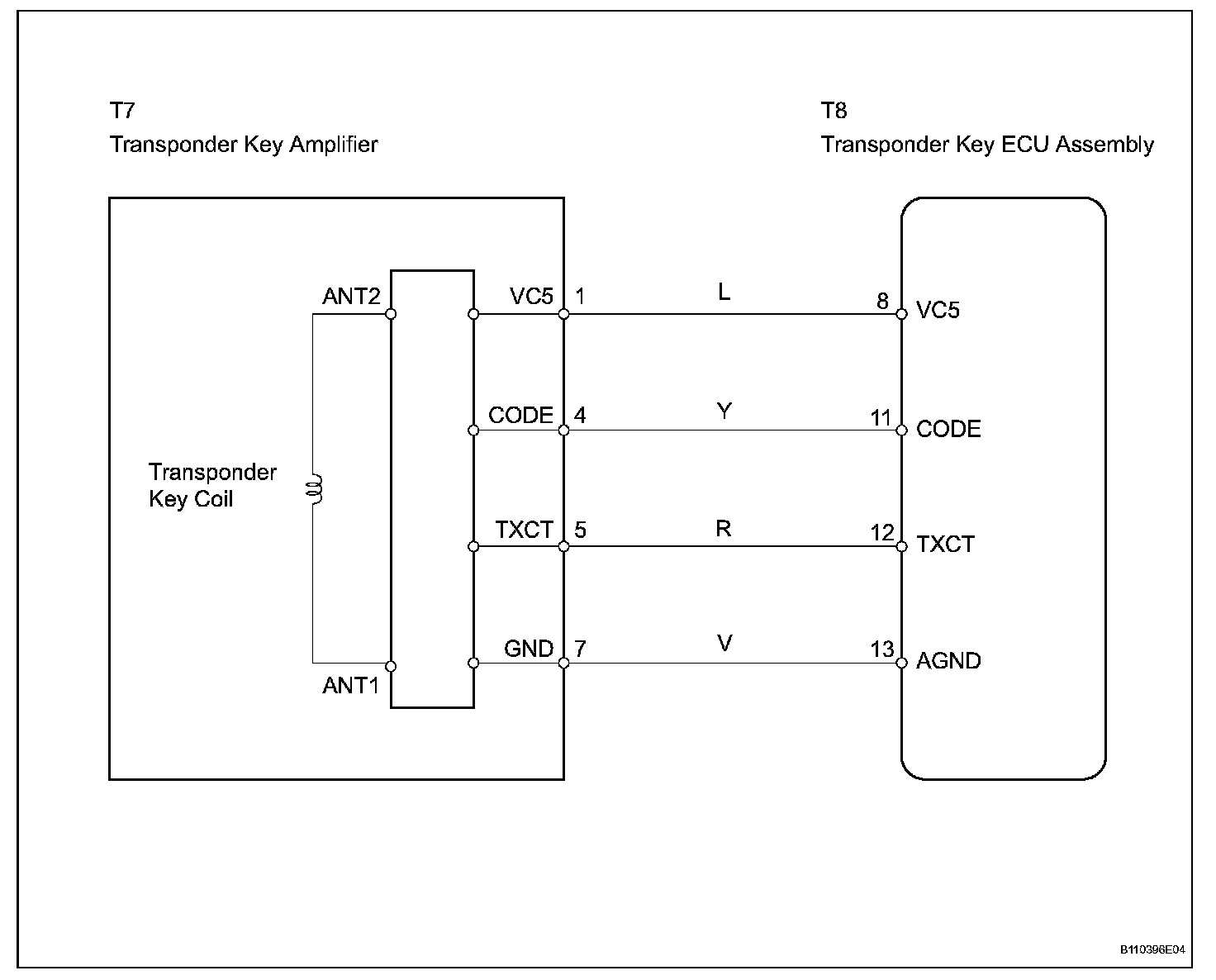

Wiring Diagram:

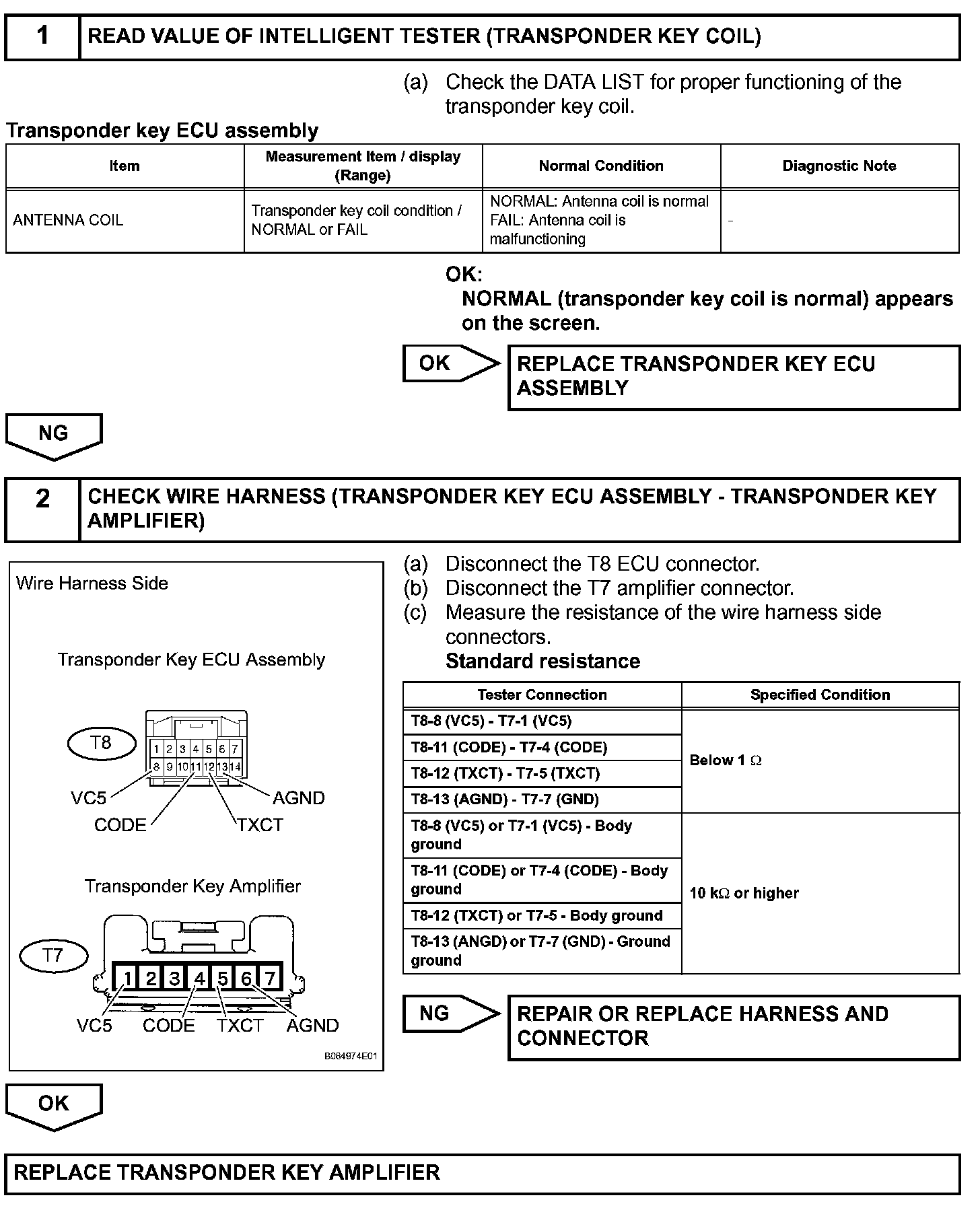

Step 1-2:

INSPECTION PROCEDURE
