Rear Wiper Motor
REAR WIPER MOTOR ASSEMBLYREPLACEMENT
1. REMOVE BACK DOOR TRIM BOARD
2. REMOVE REAR WIPER ARM COVER
3. REMOVE RR WIPER ARM & BLADE ASSEMBLY
4. REMOVE REAR WIPER MOTOR GROMMET
5. REMOVE REAR WIPER MOTOR ASSEMBLY
a. Disconnect the connector.

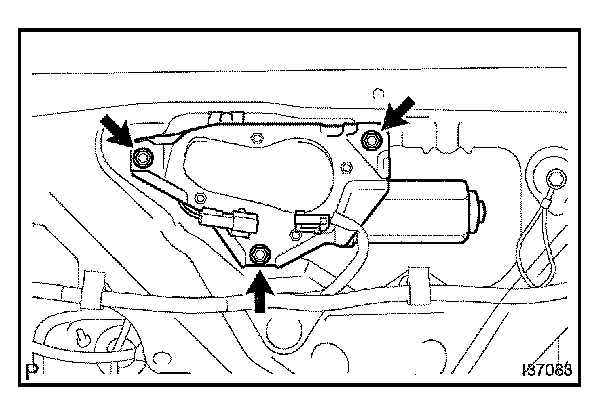

b. Remove the 3 bolts and rear wiper motor assembly.
6. INSTALL REAR WIPER MOTOR ASSEMBLY

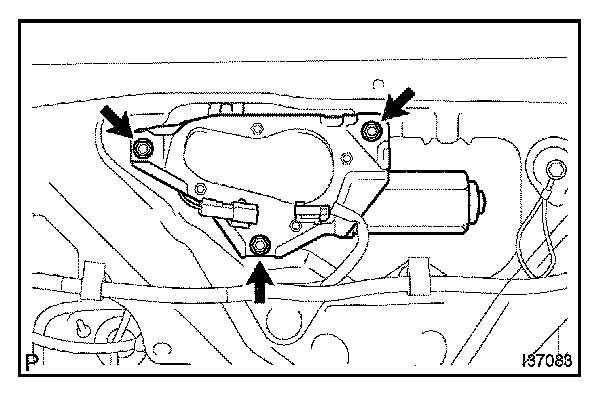

a. Install the rear wiper motor assembly with the 3 bolts.
Torque: 5.4 Nm (55 kgf.cm, 47 in.lbf)
b. Connect the connector.
7. INSTALL REAR WIPER MOTOR GROMMET

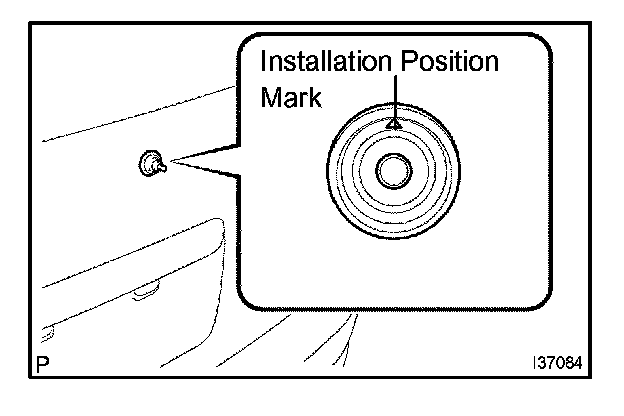

a. Install the rear wiper motor grommet as shown in the illustration.
8. INSTALL RR WIPER ARM & BLADE ASSEMBLY
a. Operate the wiper, and stop the windshield wiper motor assembly in the automatic stop position.
b. Scrape off the serration part of the wiper arm with a round file or equivalent.

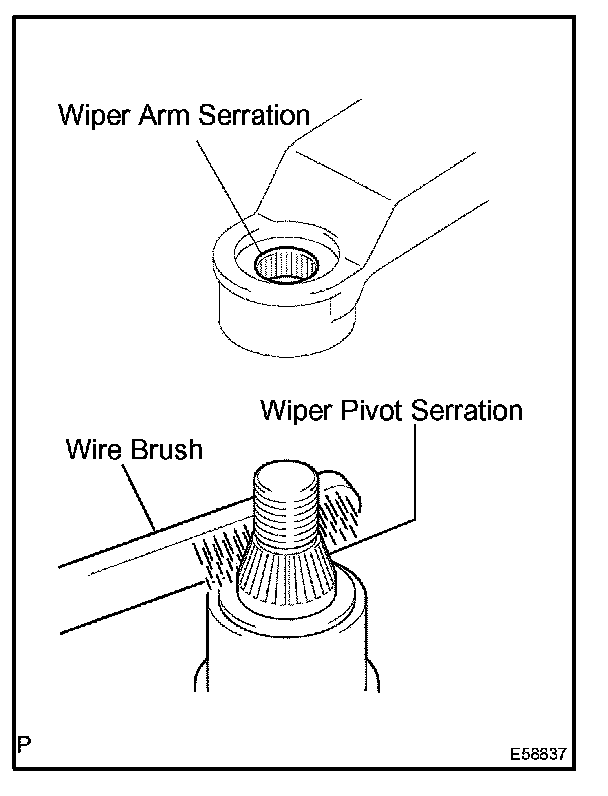

c. Clean the wiper pivot serration with a wiper brush.

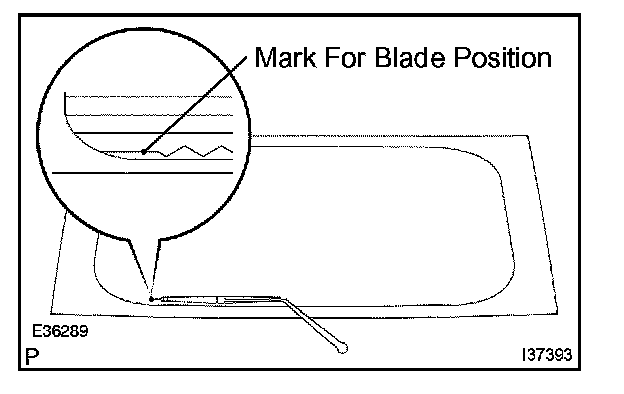

d. Install the RR wiper arm & blade assembly with the nut in the position as shown in the illustration.
Torque: 5.4 Nm (55 kgf.cm, 47 in.lbf)
HINT: Hold the arm hinge by hand to fasten the nut.
e. Operate the wiper while running water or washer fluid over the window, and check the wiping condition and that the rear wiper does not hit against the vehicle's body.
