Rear Door Glass Weatherstrip

REAR DOOR GLASS WEATHERSTRIP ASSEMBLY OUTER LH

REPLACEMENT

HINT:
- The installation procedures are removal procedures in reverse order.
- Use the same procedures for the RH side and LH side.

1. REMOVE DOOR PULL HANDLE
2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR
3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
4. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH
5. REMOVE REAR DOOR SERVICE HOLE COVER LH
6. REMOVE REAR DOOR GLASS WEATHERSTRIP ASSEMBLY OUTER LH

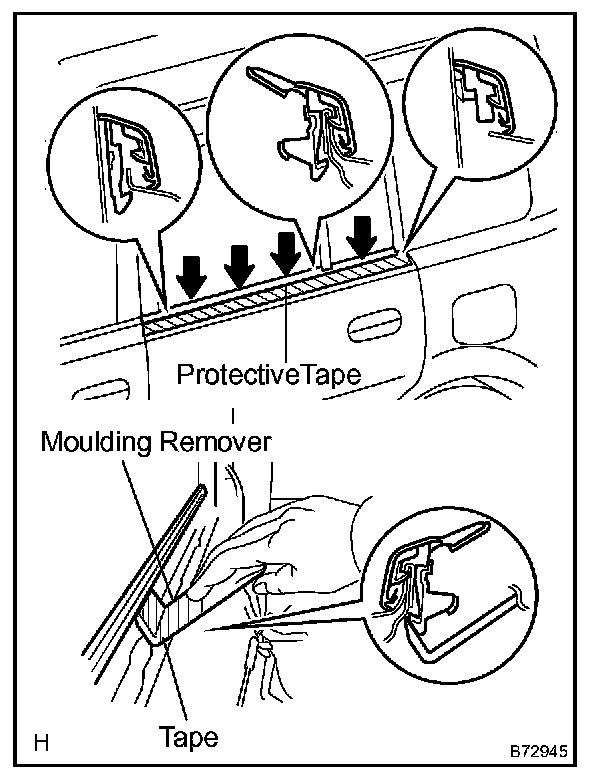

a. Put protective tape under the weatherstrip.
b. Using a moulding remover, pry out the weatherstrip as shown in the illustration.

HINT: Tape the remover tip before use.
