Front Door Glass Weatherstrip

FRONT DOOR GLASS WEATHERSTRIP ASSEMBLY OUTER LH

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- Use the same procedures for the RH side and LH side.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
2. REMOVE DOOR PULL HANDLE
3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
5. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY LH
6. REMOVE FRONT DOOR SERVICE HOLE COVER LH
7. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
8. REMOVE FRONT DOOR GLASS WEATHERSTRIP ASSEMBLY OUTER LH

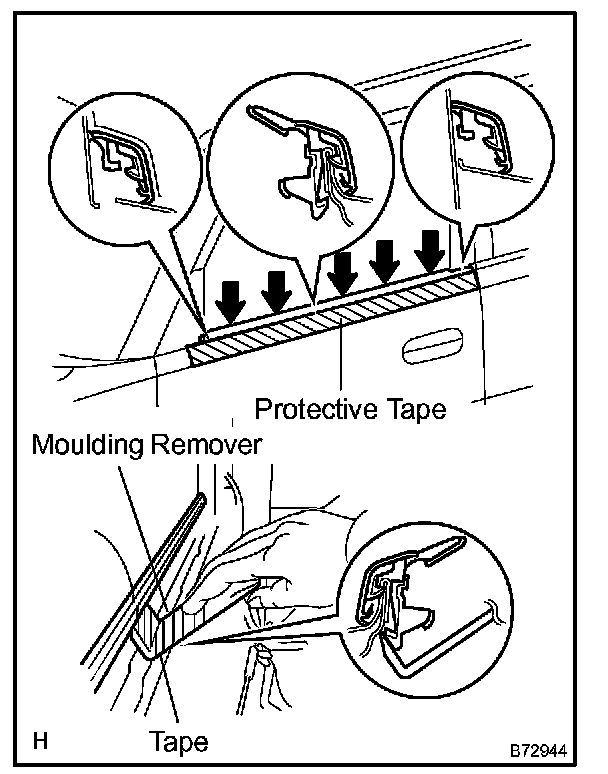

a. Put protective tape under the weatherstrip.
b. Using a moulding remover, pry out the weatherstrip as shown in the illustration.

HINT: Tape the remover tip before use.
