Manual Transmission/Transaxle: Testing and Inspection

MANUAL TRANSAXLE SYSTEM (MTM)

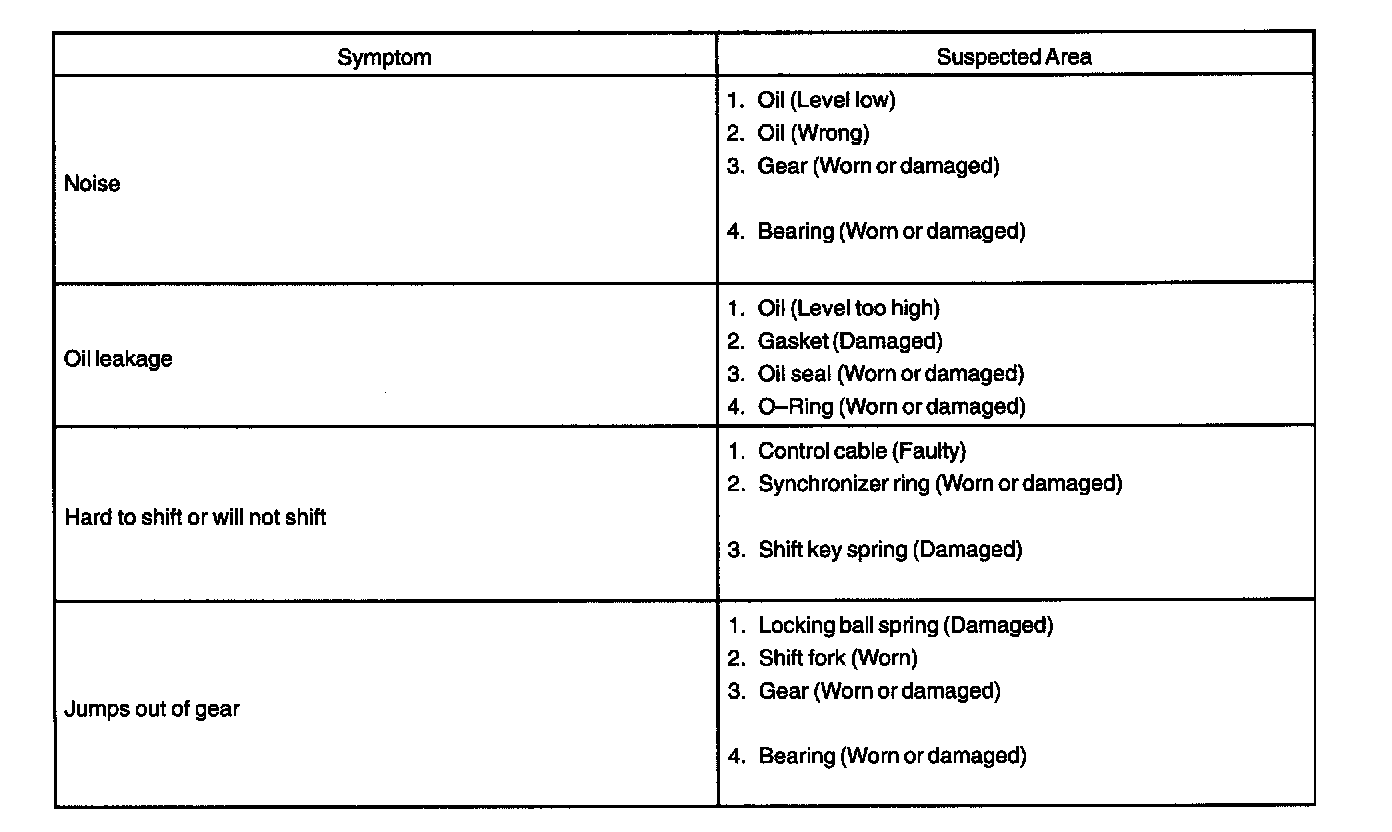

PROBLEM SYMPTOMS TABLE





Use the table, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps.
