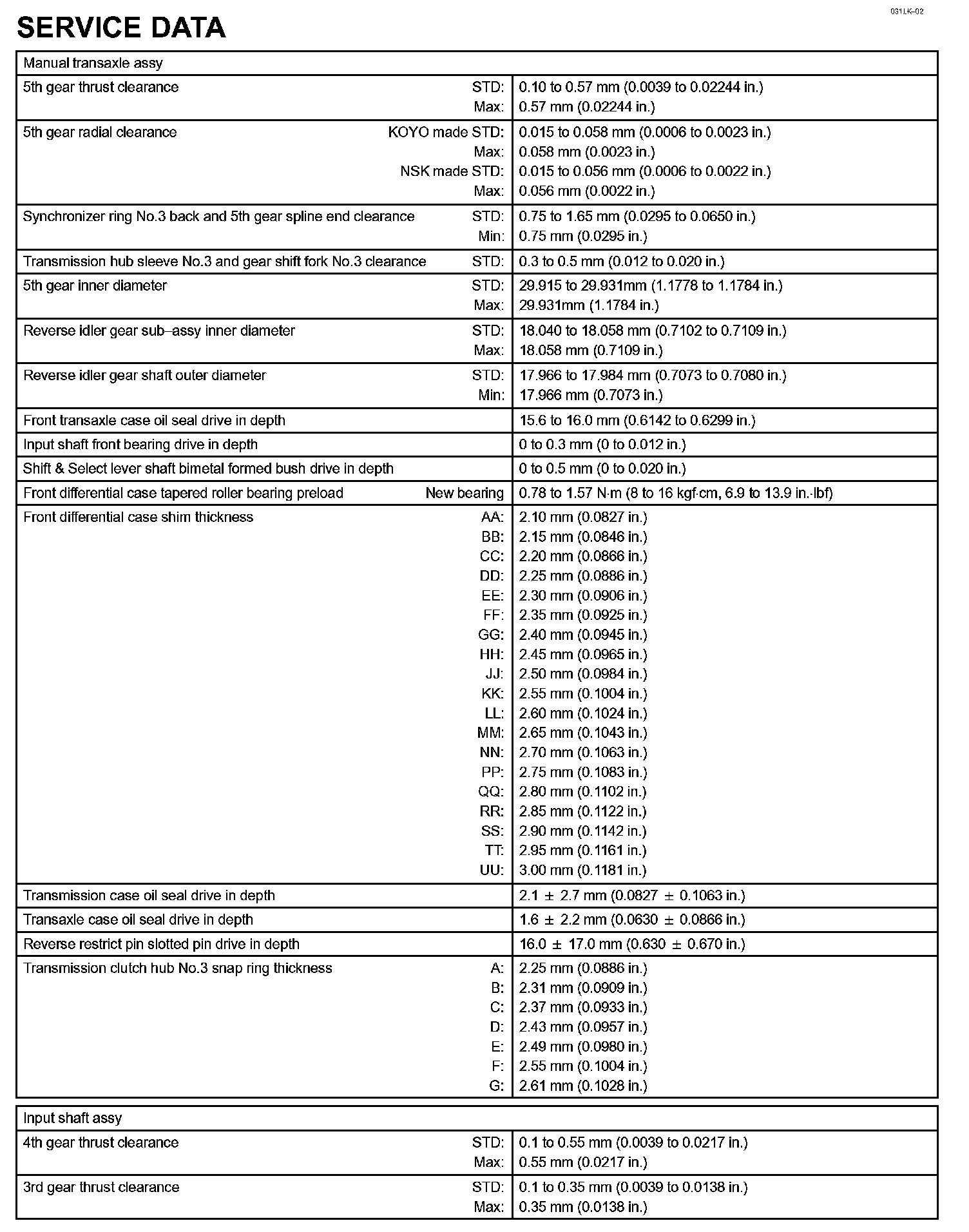

Manual Transmission / Transaxle - Service Data Part 1:

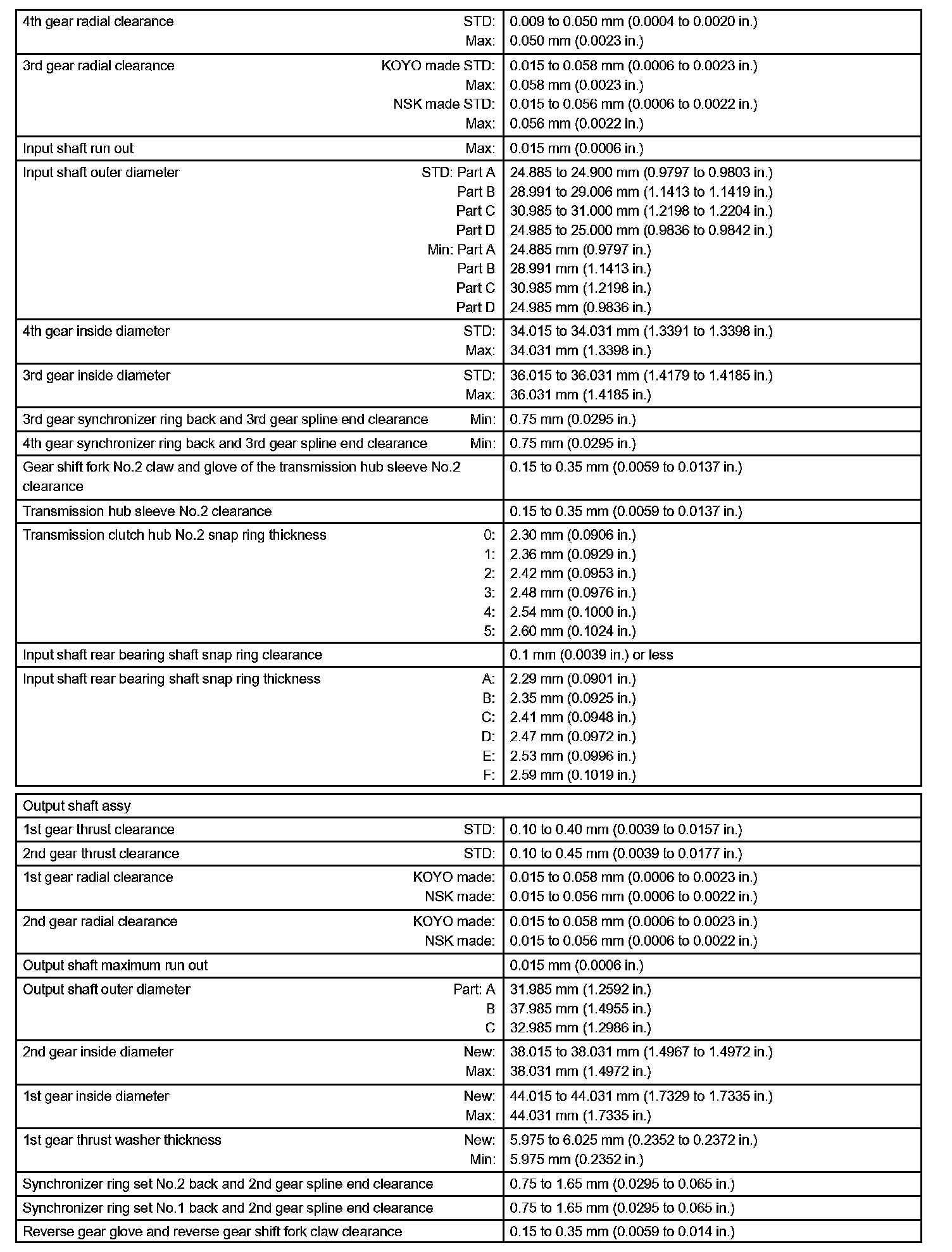

Manual Transmission / Transaxle - Service Data Part 2:

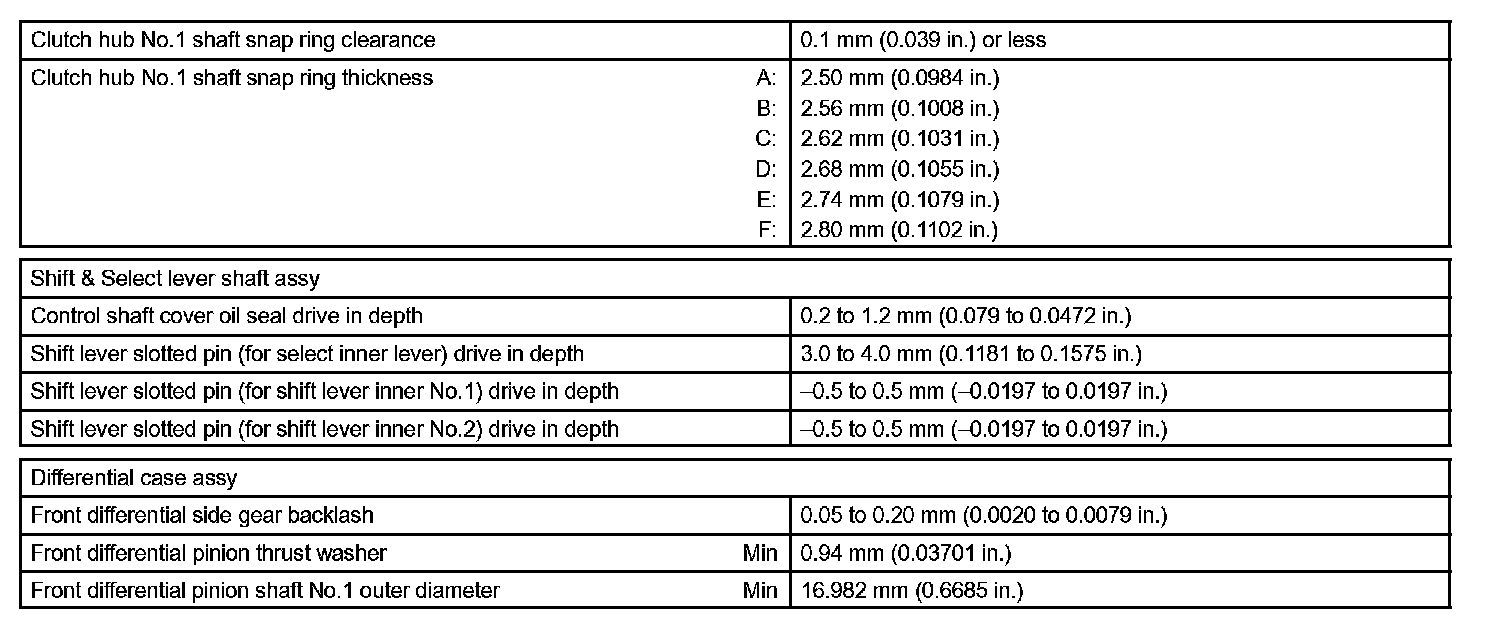

Manual Transmission / Transaxle - Service Data Part 3:
