Shift & Select Lever Shaft Assembly

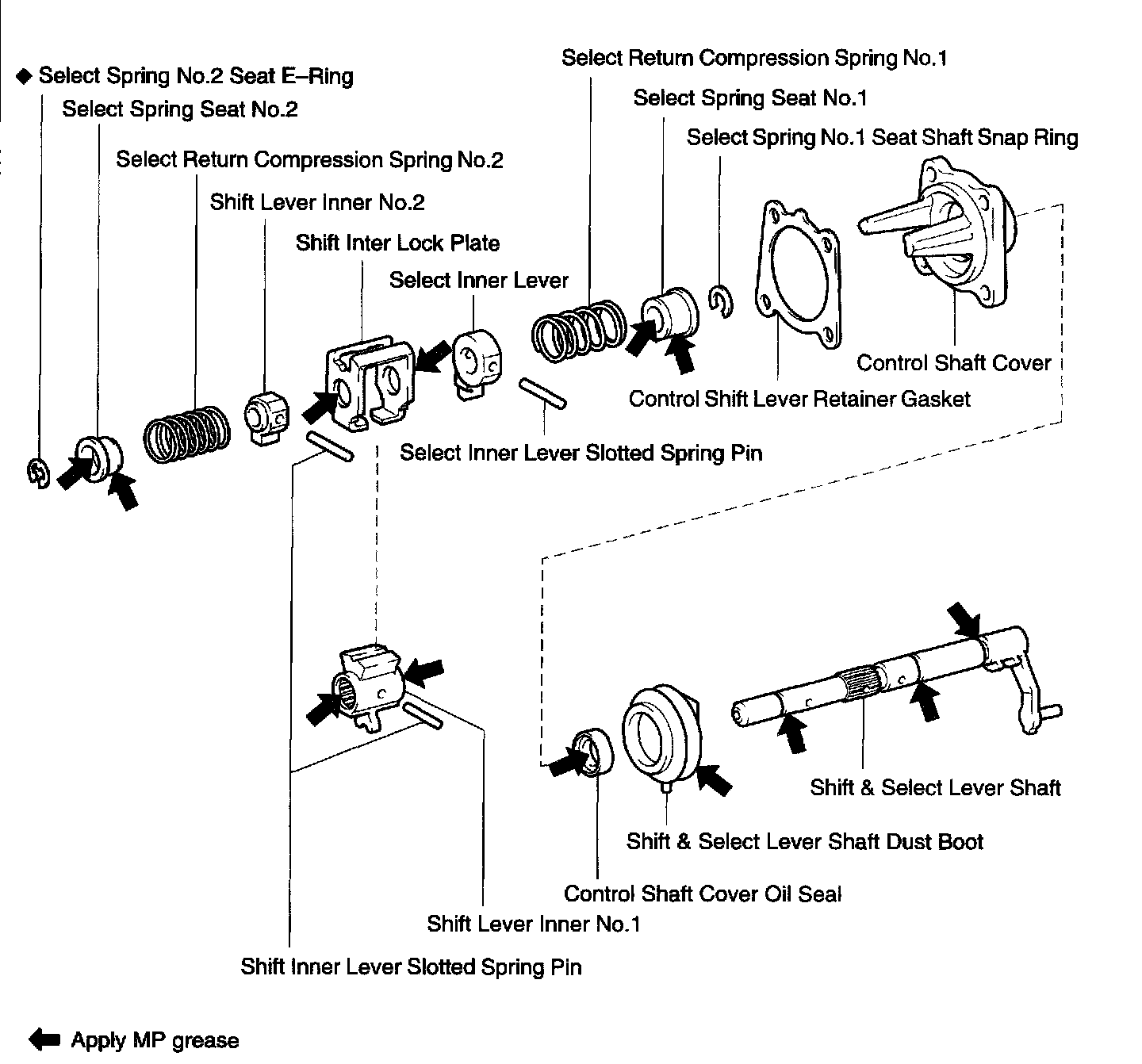

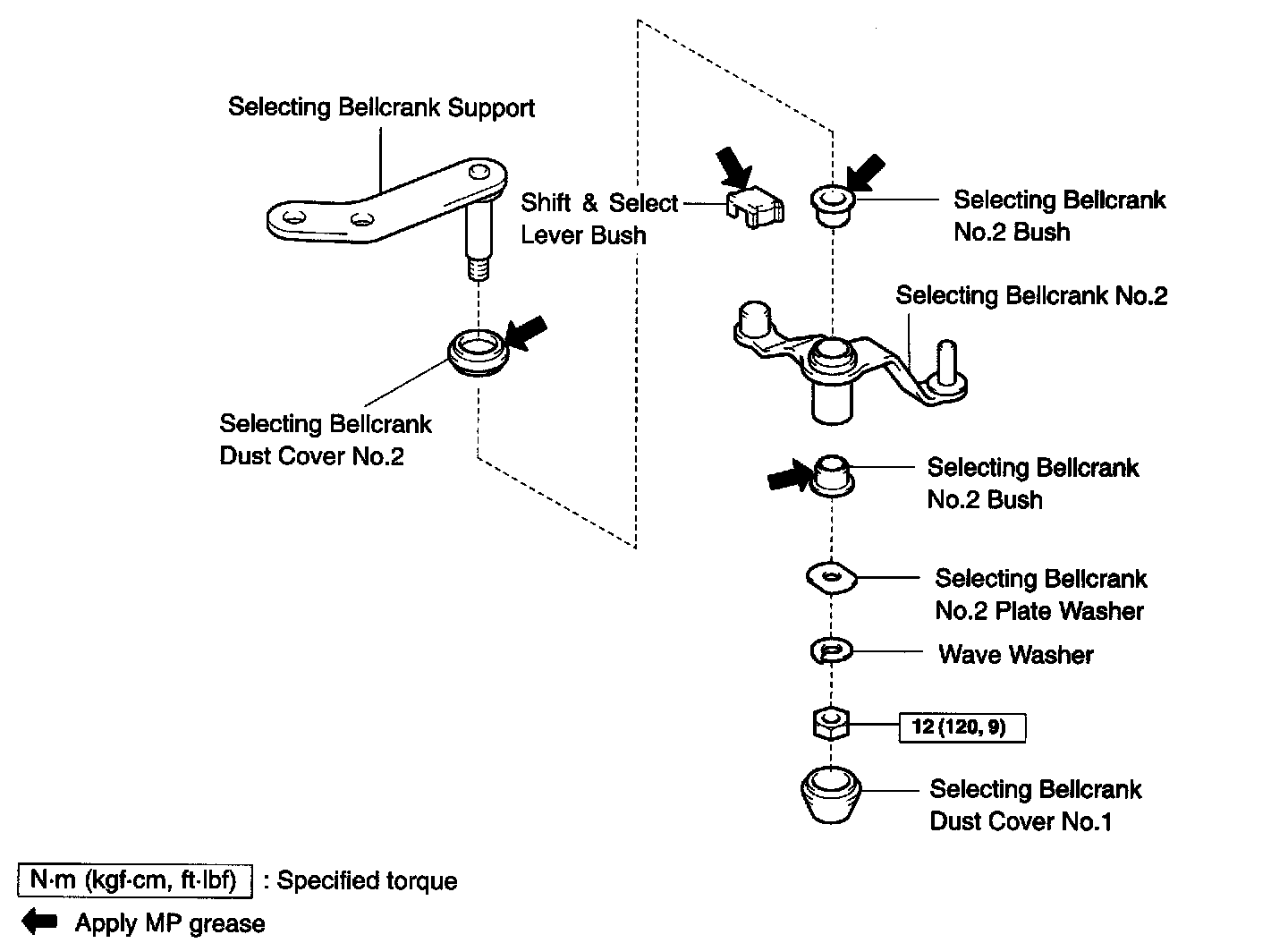

SHIFT & SELECT LEVER SHAFT ASSEMBLY (C50) OVERHAUL W/ RELATED COMPONENTS
