Shifter A/T: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

FLOOR SHIFT ASSEMBLY (ATM)
OVERHAUL

HINT: COMPONENTS: FLOOR SHIFT ASSEMBLY

1. REMOVE CONSOLE BOX REAR COVER
2. REMOVE CONSOLE BOX CARPET

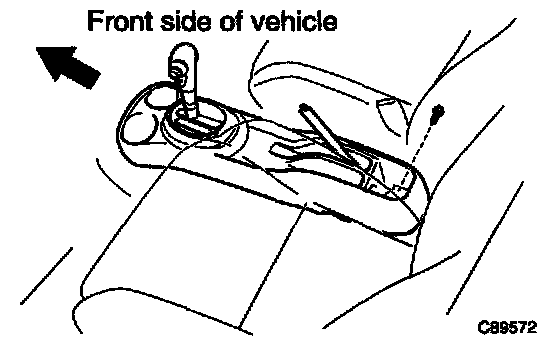

3. REMOVE CONSOLE BOX SUB-ASSEMBLY REAR

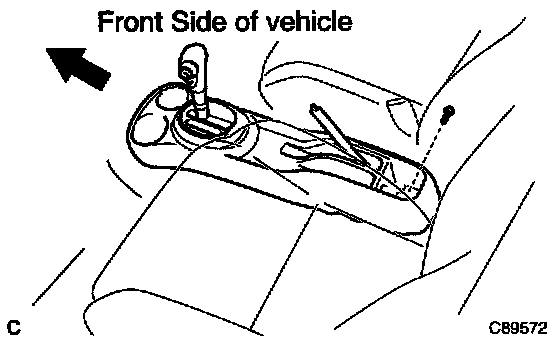

a. Remove the console box sub-assembly rear from the vehicle.

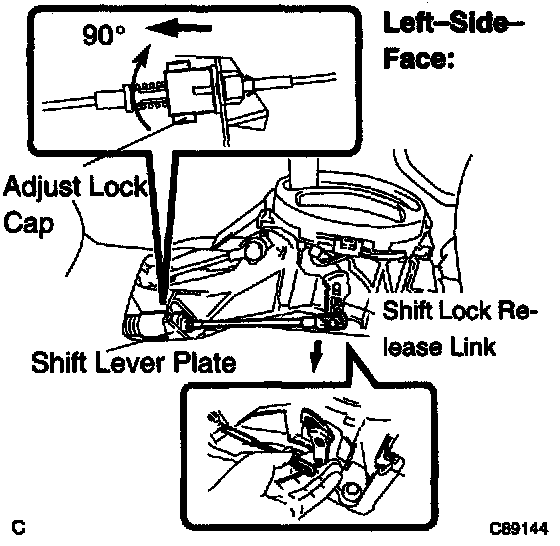

4. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY

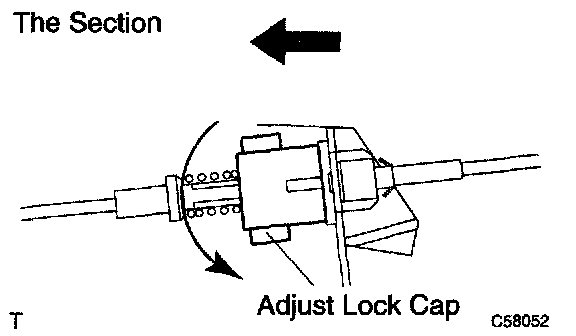

a. Rotate the adjust lock cap clockwise by 90° facing the front of the vehicle, and release it.

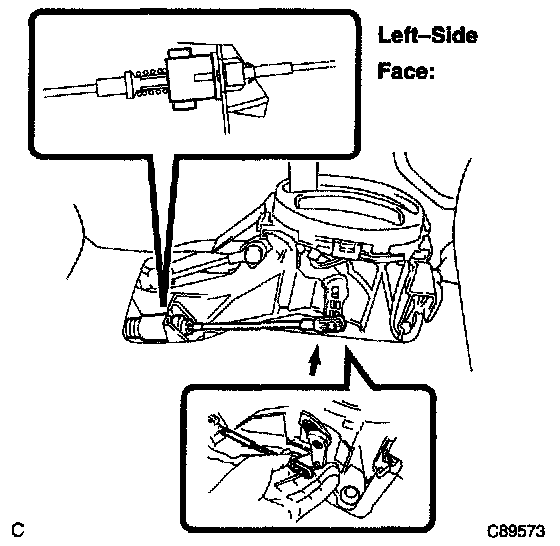

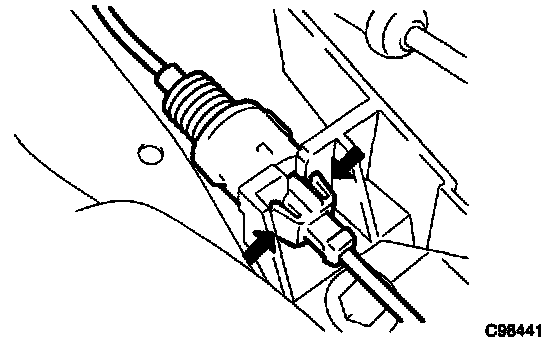

b. Push the claw and disconnect the floor shift parking lock cable assembly from the shift lock release link.





c. Using a screw driver, disconnect the floor shift parking lock cable assembly from the shift lever plate.





5. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

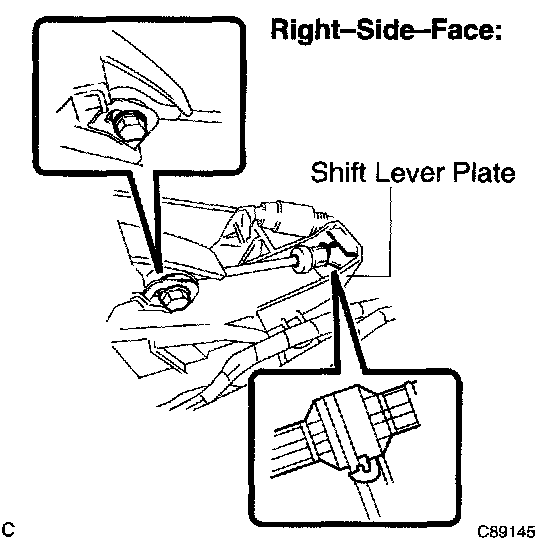

a. Remove the nut, and disconnect the transmission control cable assembly from the floor shift assembly.
b. Using a screwdriver, disconnect the transmission control cable assembly from the shift lever plate.





6. REMOVE FLOOR SHIFT ASSEMBLY
a. Disconnect the 2 connectors.
b. Remove the 2 wire harness clamps from the floor shift assembly.

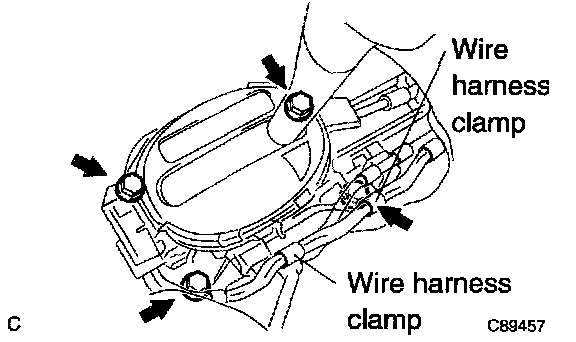

c. Remove the 4 bolts and floor shift assembly.





7. REMOVE TRANSMISSION CONTROL SWITCH

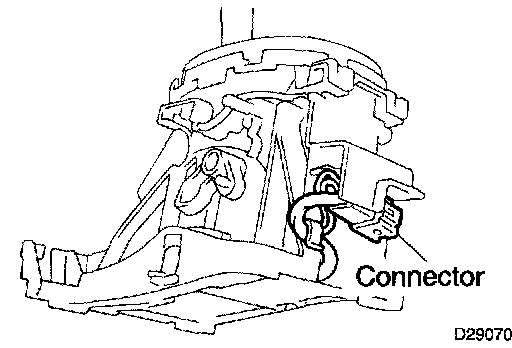

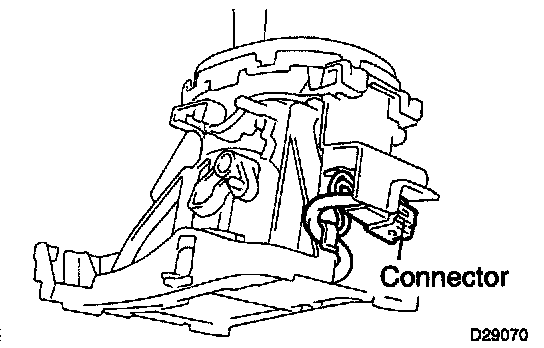

a. Remove the connector from the shift lever plate.





b. Remove the transmission control switch connector from the shift lever plate.

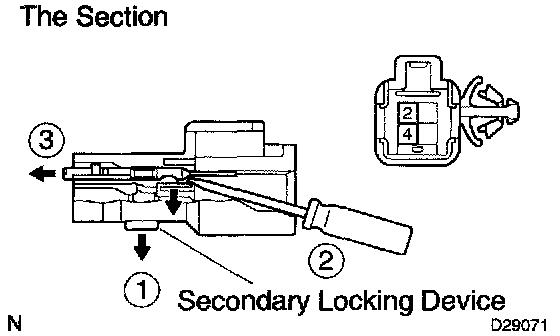

c. Disengage the secondary locking device.
d. Release the locking lug of terminals 2 and 4, and then pull out the terminals from the rear.





8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

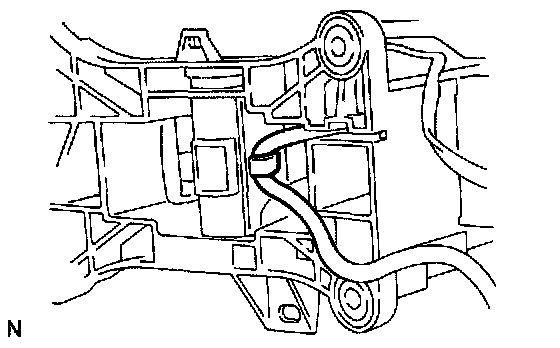

a. Separate the wire harness of the transmission control switch from the shift lever plate.
b. Remove the 2 screws and shift lever knob sub-assembly.

NOTICE: Be careful not to apply excessive force to the Transmission control switch wire harness.

c. Remove the shift lever knob cover.
d. Remove the shift lever knob button and spring.





e. Remove the transmission control switch.

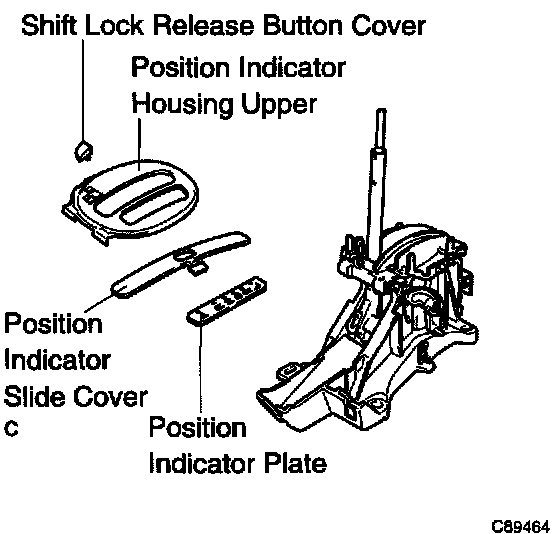

9. REMOVE POSITION INDICATOR HOUSING UPPER
a. Remove the shift lock release button cover from the position indicator housing upper.
b. Remove the position indicator housing upper from the shift lever assembly.
c. Remove the position indicator slide cover from the shift lever plate.
d. Remove the position indicator plate from the position indicator housing upper.





10. REMOVE SHIFT LOCK CONTROL SWITCH

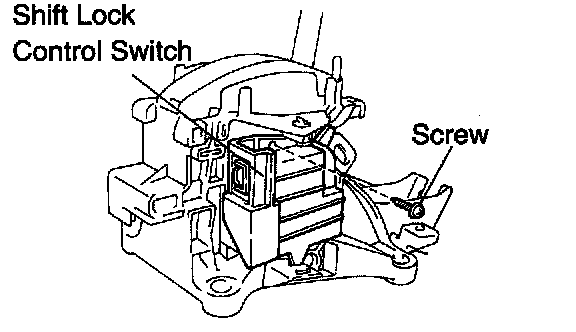

a. Remove the screw and shift lock control switch.

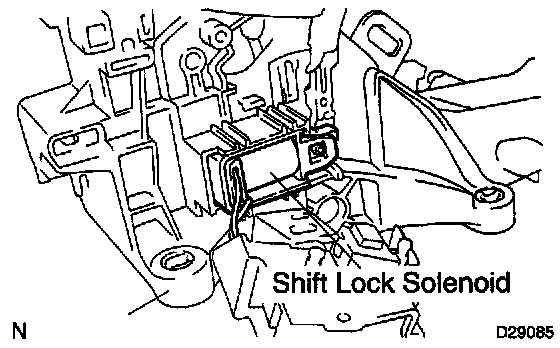

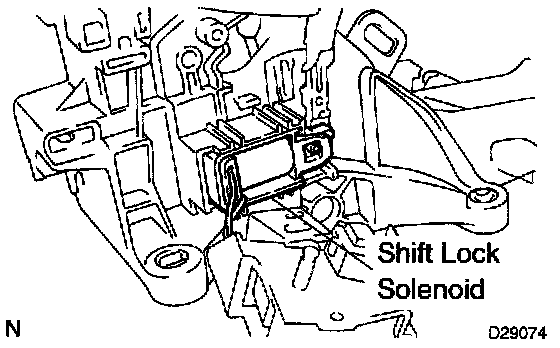

11. REMOVE SHIFT LOCK SOLENOID
a. Remove the shift lock solenoid from the floor shift assembly.

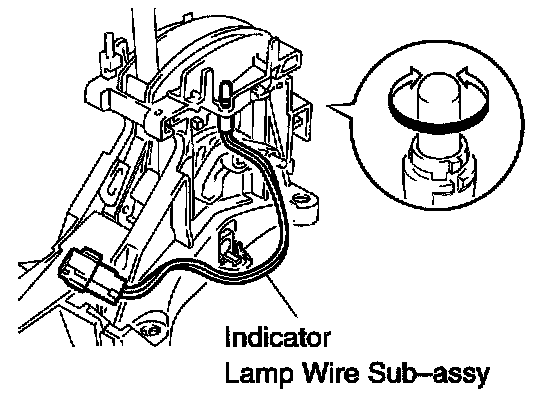

12. REMOVE INDICATOR LAMP WIRE SUB-ASSEMBLY
a. Remove the indicator lamp wire sub-assembly from the floor shift assembly.

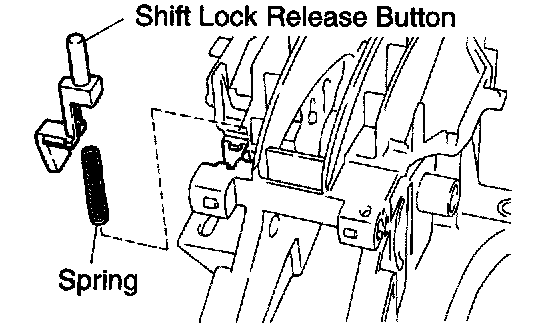

13. REMOVE SHIFT LOCK RELEASE BUTTON
a. Remove the shift lock release button and spring from the floor shift assembly.

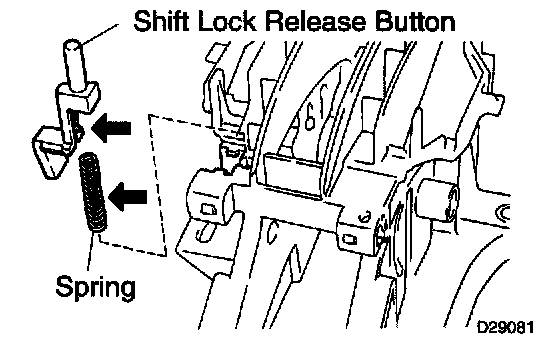

14. INSTALL SHIFT LOCK RELEASE BUTTON
a. Apply MP grease on the shift lock release button and spring.
b. Install the shift lock release button and spring to the floor shift assembly.

HINT: Ensure that the claws fit tightly.

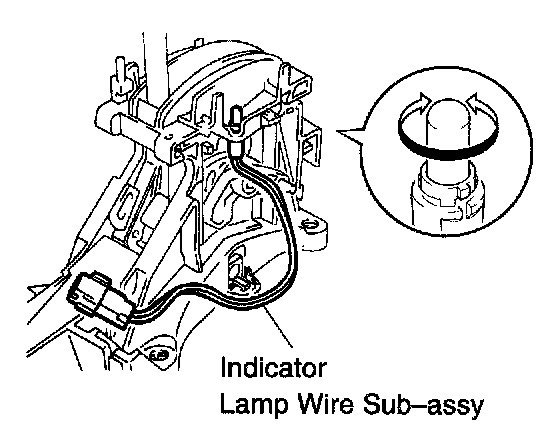

15. INSTALL INDICATOR LAMP WIRE SUB-ASSEMBLY
a. Install the indicator lamp wire sub-assembly to the floor shift assembly.





16. INSTALL SHIFT LOCK SOLENOID
a. Install the shift lock solenoid to the floor shift assembly.





17. INSTALL SHIFT LOCK CONTROL SWITCH

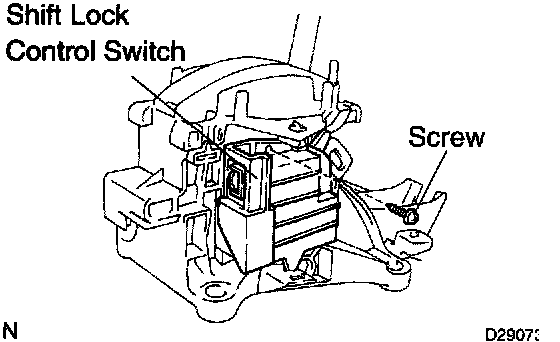

a. Install the shift lock control switch to the floor shift assembly with the screw.
Torque: 2.2 Nm (22 kgf-cm, 19 in. lbs.)





18. INSTALL POSITION INDICATOR HOUSING UPPER
a. Install the position indicator plate on the position indicator housing upper.
b. Install the position indicator slide cover on the shift lever plate.
c. Install the position indicator housing upper on the shift lever assembly.
d. Install the shift lock release button cover on the position indicator housing upper.

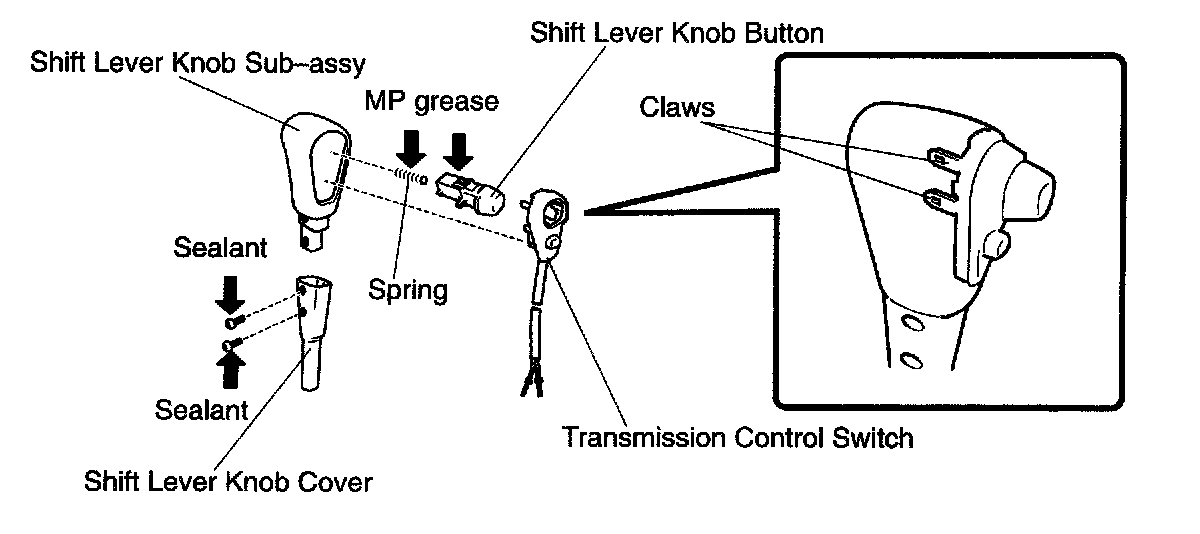

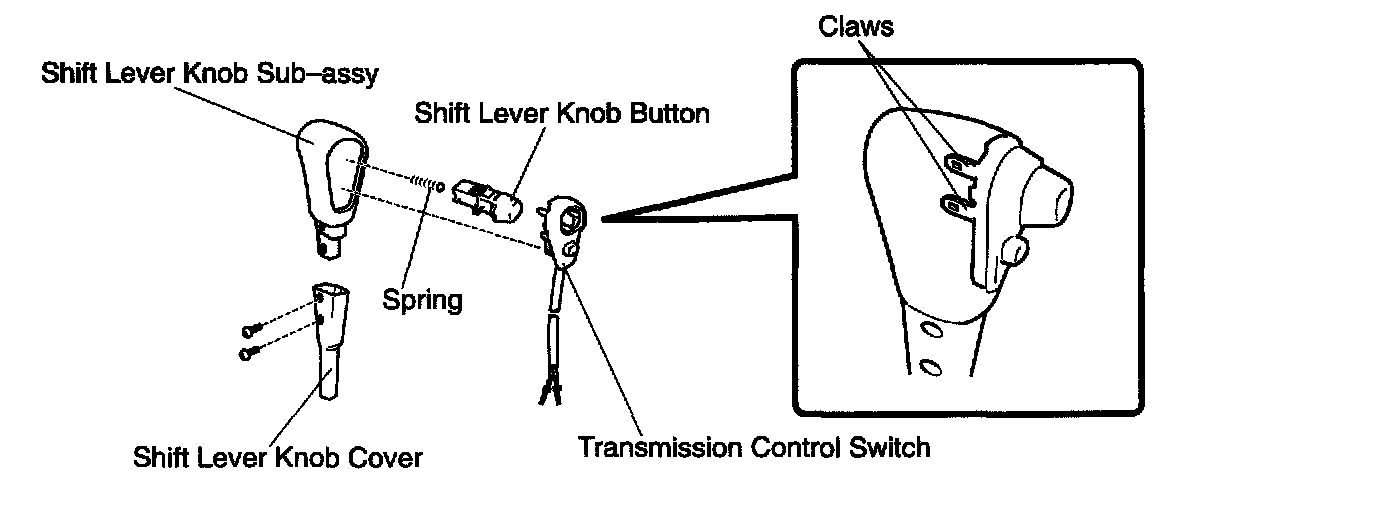

19. INSTALL TRANSMISSION CONTROL SWITCH
a. Apply MP grease to the shift lever knob button and spring.
b. Install the shift lever knob button and spring to the shift lever knob sub-assembly.
c. Install the transmission control switch to the shift lever knob sub-assembly.
d. Install the shift lever knob cover to the shift lever assembly with the 2 screws.

HINT: Coat the threads of screws with sealant.

Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent





NOTICE:
^ Be careful not to catch the Transmission control switch wire harness.
^ Ensure that the claws fit tightly claws.





20. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

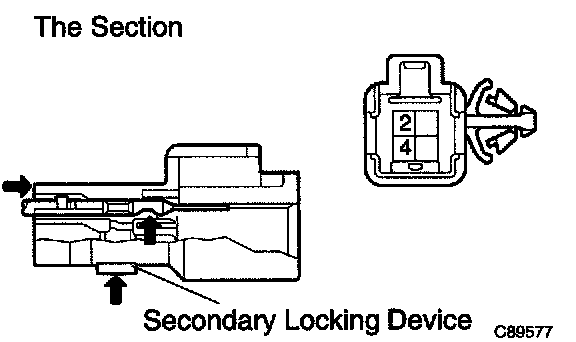

a. Install the 2 terminals into the indicator lamp wire connector.





b. Clamp the wire harness and connector to the shift lever plate.





21. INSTALL FLOOR SHIFT ASSEMBLY

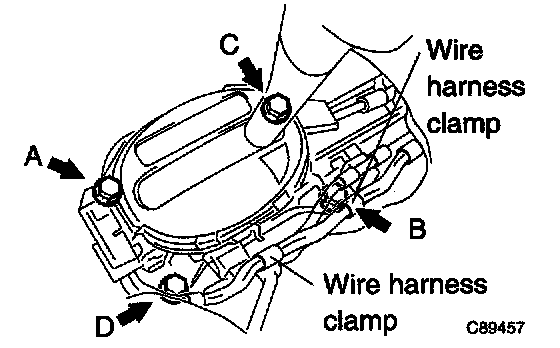

a. Install the floor shift assembly with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft. lbs.)

HINT: Tighten them in the order, A, B, C and D.

b. Install the 2 wire harness clamps on the shift lever plate.





22. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
a. Adjust the shift lever to the N position, push the lever to the R position side and hold it there.
b. While pulling the cable, connect the transmission control cable assembly with the nut.
Torque: 12 Nm (122 kgf-cm, 9 ft. lbs.)
c. Connect the 2 connectors.





23. CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY
a. Insert the floor shift parking lock cable end rod ([diameter]4) in the slit of the shift lever plate.

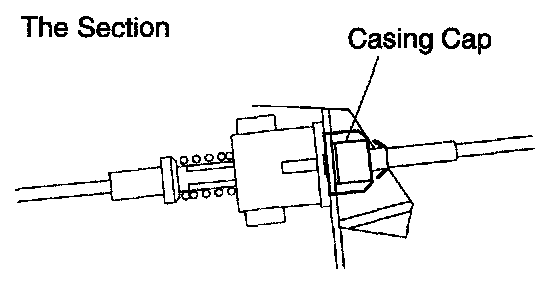

b. Insert the casing cap of the cable into the shift lever plate through-hole.

HINT: Check that it is inserted securely.





c. Insert the lever pin into the hole in the floor shift parking lock cable end.

HINT:
^ At this time, ensure that the shift lever is in the N position.
^ After installation, make sure that the lever pin is pulled by the floor shift parking lock cable and is stopped with the stopper.

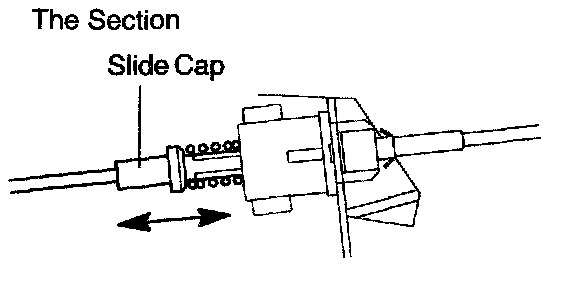

d. To check that the spring for automatic adjustment works properly, hold the slide cap and move it back and forth.





e. Rotate adjust lock cap shown in the illustration counterclockwise by 90° facing front of the vehicle.

HINT:
^ Install the floor shift parking lock cable on the shift lever side with the key in the ACC position.
^ Make sure the slide amount of the spring for automatic adjustment is 8 mm (0.31 in.).

24. INSPECT AND ADJUST SHIFT LEVER POSITION
a. Check that the starter operates when the shift lever is only the in P or N position and does not operate in other positions.
b. Operate the shift lever and check that the reading on the indicator conforms to the actual position.
c. Check that the ignition key can be pulled out with the shift lever in the P position.
d. Check that the ignition key cannot be turned to the LOCK position with the shift lever in any positions other than P.
e. Check that the shift lever can be shifted from the P position to other positions when the shift release button is depressed.
25. INSPECT SHIFT LEVER POSITION
26. ADJUST SHIFT LEVER POSITION





27. INSTALL CONSOLE BOX SUB-ASSEMBLY REAR
a. Install the console box sub-assembly to the vehicle.

NOTICE: While installing the console box sub-assembly, pay attention not to make defects on the shift lever knob and the indicator housing.

28. INSTALL CONSOLE BOX CARPET
29. INSTALL CONSOLE BOX REAR COVER
