Parking Lock Cable: Service and Repair
FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY (ATM)REPLACEMENT
HINT:
^ COMPONENTS: INSTRUMENT PANEL METER
^ SUPPLEMENTAL RESTRAINT SYSTEM
^ STEERING COLUMN
1. PRECAUTION
2. SEPARATE BATTERY NEGATIVE TERMINAL
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE HORN BUTTON ASSEMBLY
5. REMOVE STEERING WHEEL ASSEMBLY
6. REMOVE STEERING COLUMN COVER
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL
8. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
9. REMOVE CONSOLE BOX REAR COVER
10. REMOVE CONSOLE BOX CARPET
11. REMOVE CONSOLE BOX SUB-ASSEMBLY REAR
12. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY

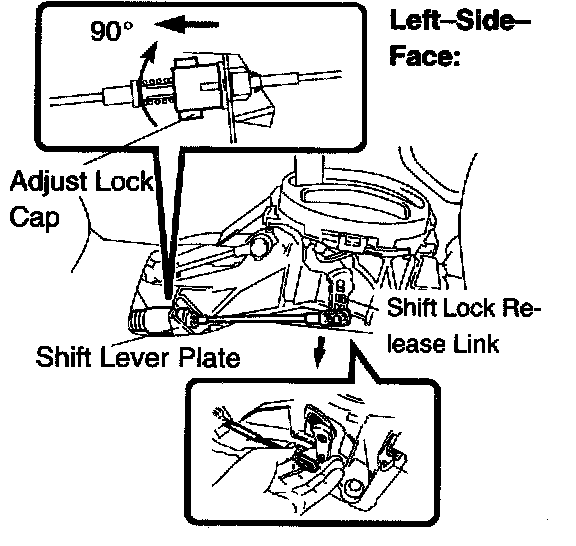

a. Rotate the adjust lock cap clockwise 90° facing the front of the vehicle, and release it.

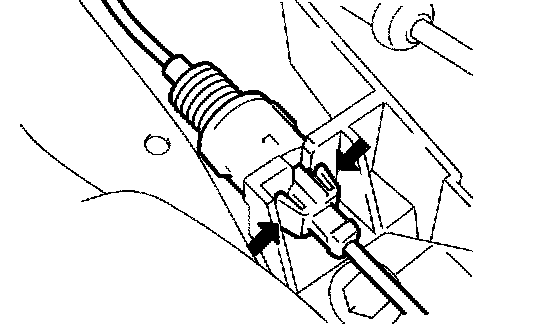

b. Push the claw and disconnect the floor shift parking lock cable assembly from the shift lock release link.
c. Using a screwdriver, disconnect the floor shift parking lock cable assembly from the shift lever plate.

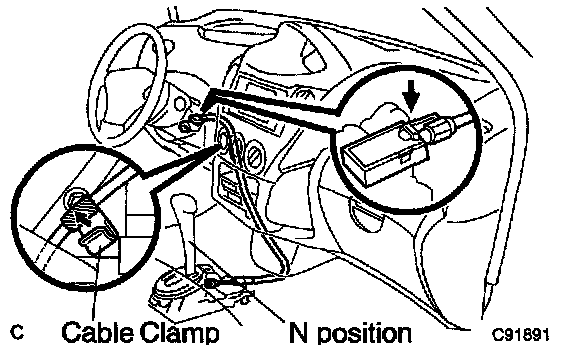

d. Disconnect the cable clamp.
e. Adjust the shift lever to the N position.
f. Disconnect the floor shift parking lock cable assembly from the upper bracket.
13. CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY

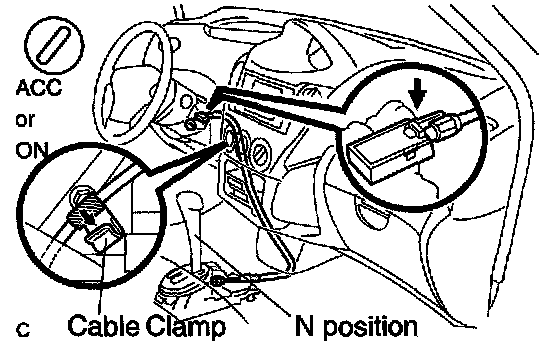

a. Turn the ignition switch to the ACC or ON position.
b. Connect the cable to the upper bracket.
HINT: After installation, make sure that the lever pin is pulled by the cable and is stopped with the stopper.
c. Connect the cable clamp.
d. Shift the shift lever to N position.

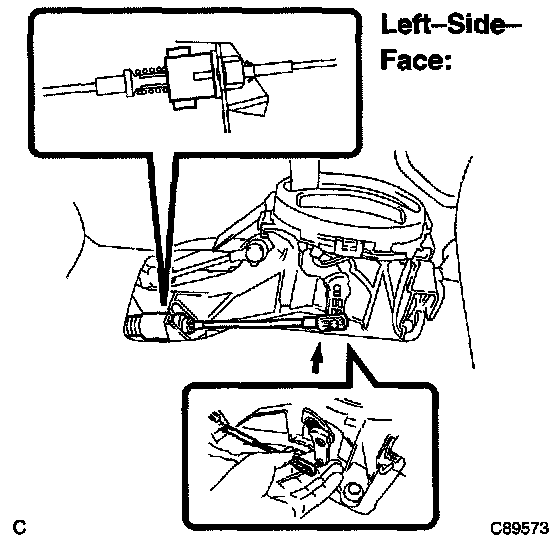

e. Insert the floor shift parking lock cable assembly of the shift lever plate.

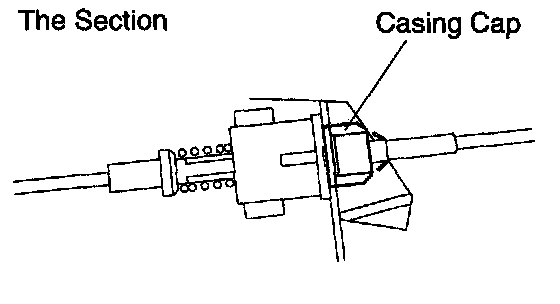

f. Insert the casing cap of the cable into the shift lever plate through-hole.
HINT: Check that it is inserted securely.
g. Insert the lever pin into the hole in the floor shift parking lock cable end.
HINT:
^ At this time, ensure that the shift lever is in the N position.
^ After installation, make sure that the lever pin is pulled by the floor shift parking lock cable and is stopped with the stopper.

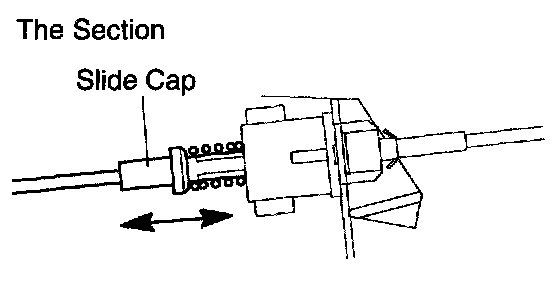

h. To check that the spring for automatic adjustment works properly, hold the slide cap and move it back and forth.

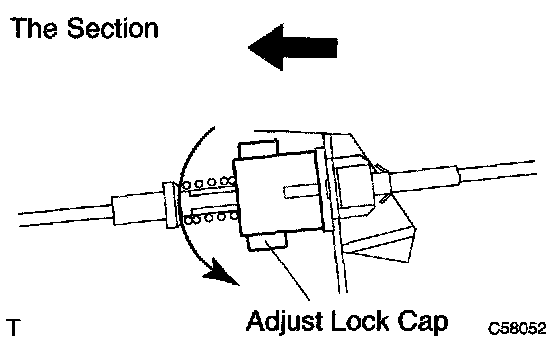

i. Rotate adjust lock cap shown in the illustration counterclockwise by 90° facing the front of the vehicle.
HINT:
^ Install the floor shift parking lock cable on the shift lever side with the key in the ACC position.
^ Make sure the slide amount of the spring for automatic adjustment is 8 mm (0.31 in.).
14. INSTALL CONSOLE BOX SUB-ASSEMBLY REAR
15. INSTALL CONSOLE BOX CARPET
16. INSTALL CONSOLE BOX REAR COVER
17. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
18. INSTALL INSTRUMENT CLUSTER FINISH PANEL
19. INSTALL STEERING COLUMN COVER
20. INSTALL STEERING WHEEL ASSEMBLY
21. STEERING WHEEL CENTER POINT
22. INSTALL HORN BUTTON ASSEMBLY
23. CONNECT BATTERY NEGATIVE TERMINAL
24. INSPECT HORN BUTTON ASSEMBLY
25. INSPECT SRS WARNING LIGHT
26. CHECK KEY INTERLOCK OPERATION
