Stabilizer Bar: Service and Repair

STABILIZER BAR FRONT
REPLACEMENT

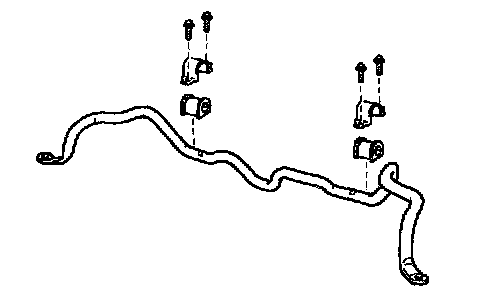

HINT: COMPONENTS: See Suspension; Diagrams; Exploded Views.

1. REMOVE FRONT WHEELS
2. REMOVE HOOD SUB-ASSEMBLY
3. SUSPEND ENGINE ASSEMBLY
4. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 LH
SST 09628-00011
5. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 RH
SST 09628-00011

HINT: Separation of the RH is the same as that of the LH.

6. SEPARATE STABILIZER BAR FRONT
7. SEPARATE POWER STEERING LINK ASSEMBLY
8. SEPARATE PRESSURE FEED TUBE ASSEMBLY
9. SEPARATE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY





10. REMOVE STABILIZER BAR FRONT
a. Remove the 4 bolts and the 2 bushings front stabilizer bracket No.1 LH and RH.
b. Remove the stabilizer bar front.





11. INSTALL STABILIZER BAR FRONT
a. Install the stabilizer bar, the 2 bushings, and the brackets with the 4 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft. lbs.)

NOTICE: Install the bushings with the slit facing to the rear side of the vehicle.

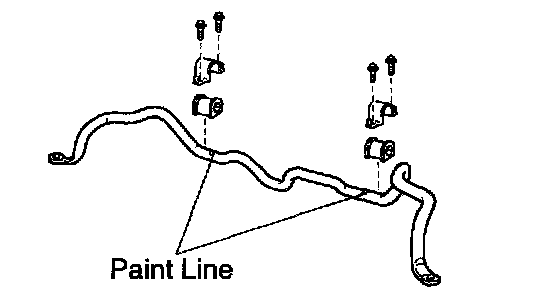

HINT: Install the bushings on the outside of each paint line.

12. CONNECT FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY
13. CONNECT PRESSURE FEED TUBE ASSEMBLY
14. CONNECT POWER STEERING LINK ASSEMBLY
15. CONNECT STABILIZER BAR FRONT
16. CONNECT FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 LH
17. CONNECT FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 RH

HINT: Connection of the RH is the same as that of the LH.

18. INSTALL FRONT WHEELS
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
19. INSTALL HOOD SUB-ASSEMBLY
20. INSPECT HOOD SUB-ASSEMBLY
21. ADJUST HOOD SUB-ASSEMBLY
22. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
