Home >> Scion >> 2005 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> Service Data

Service Data

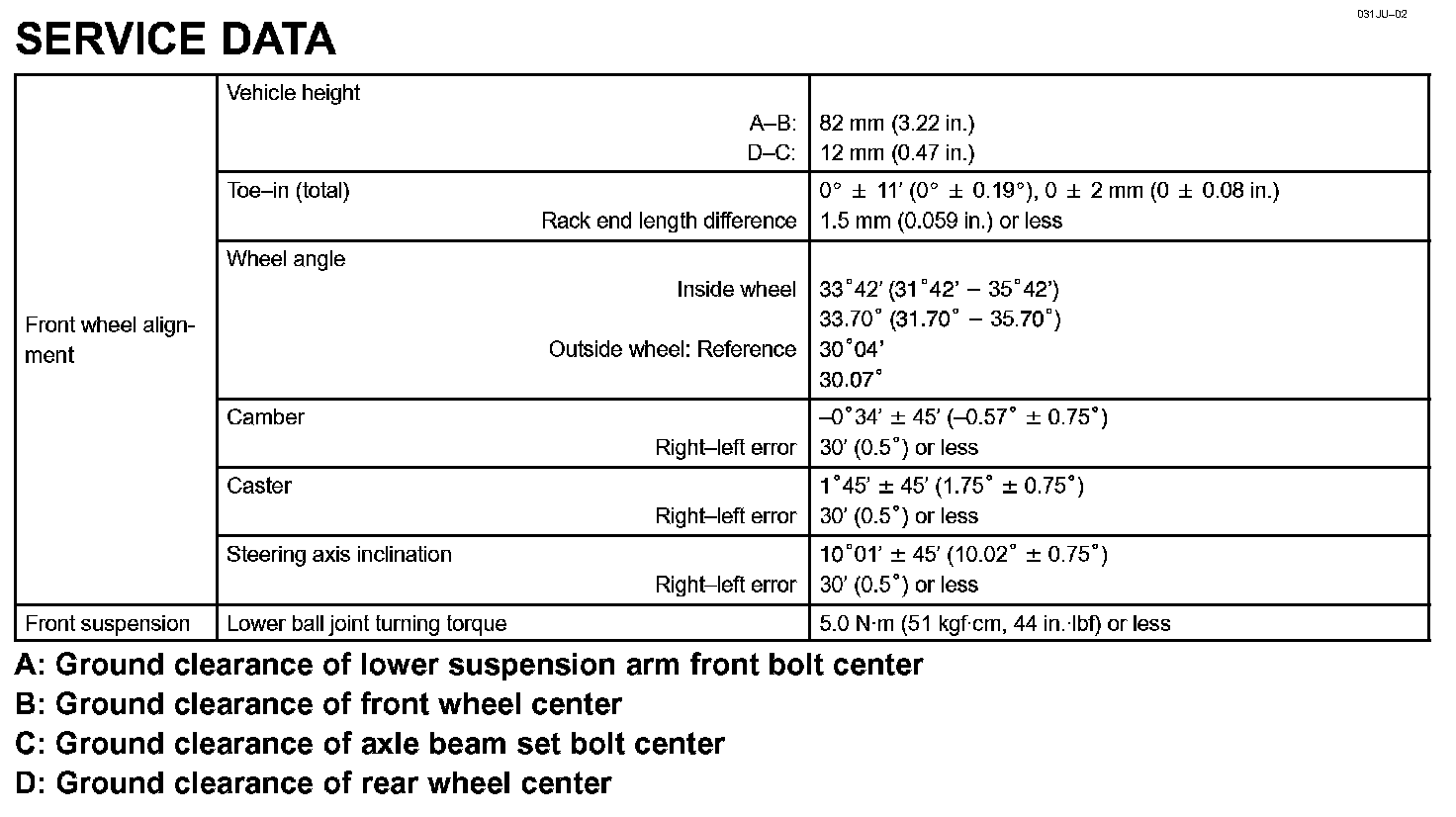

Front Suspension - Service Data:



Rear Suspension - Service Data:
