FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Scion
>>
2005
>>
xB L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
Torque
Torque

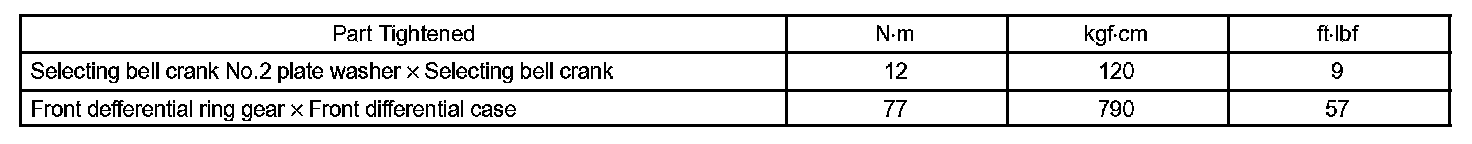

Manual Transmission / Transaxle - Torque Specification Part 1:

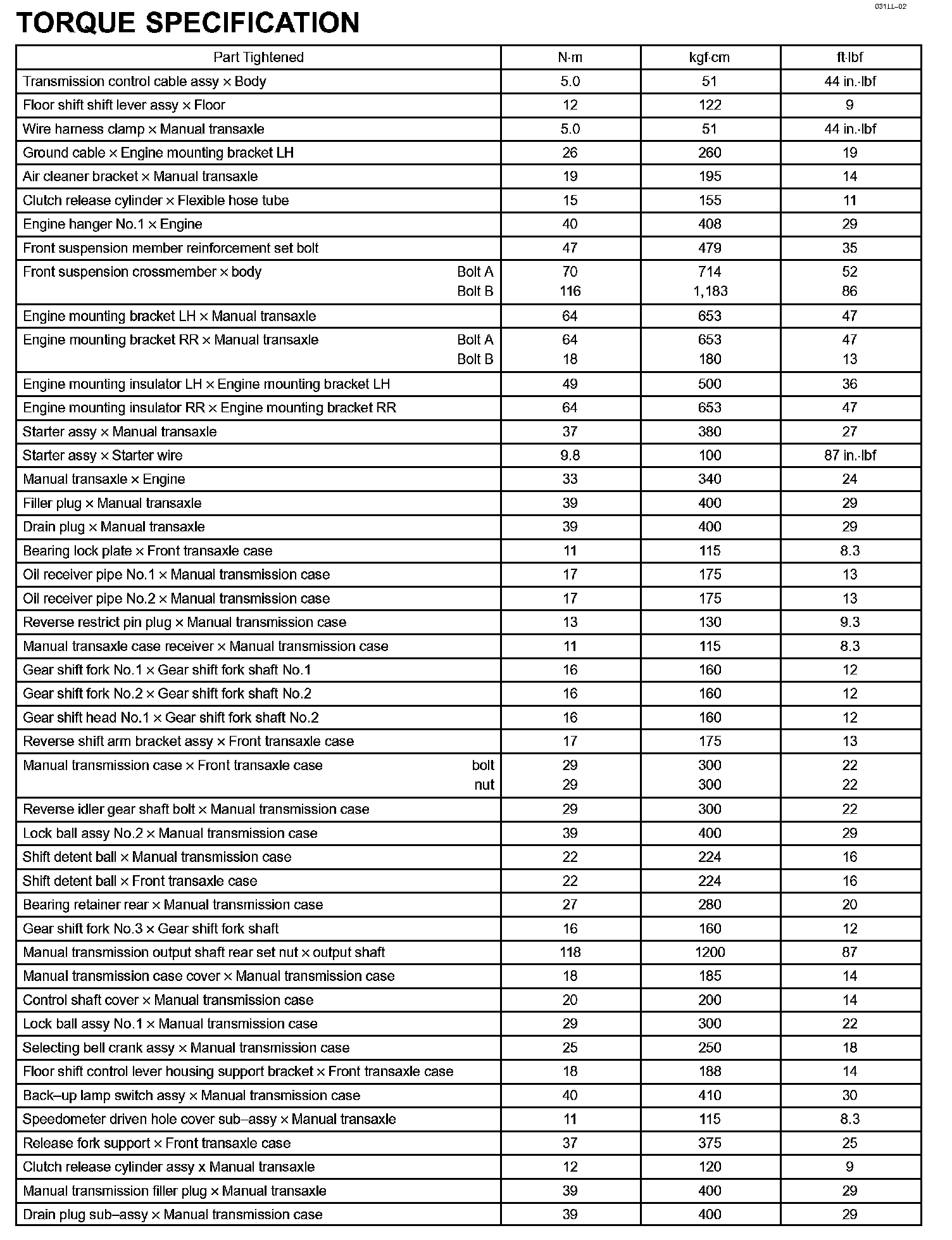

Manual Transmission / Transaxle - Torque Specification Part 2:
