Flywheel

Install the flywheel. (M/T)
Using several steps, uniformly install and tighten 6 new bolts in the sequence shown in the illustration.
Torque 49 Nm (500 kgf-cm, 36 ft. lbs.)

NOTICE: Do not reuse the flywheel bolt. It may cause breakage of the flywheel bolt.

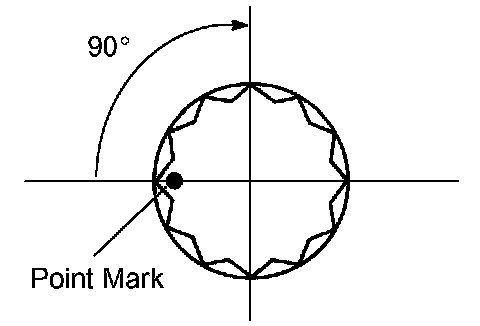

Mark the flywheel bolt with paint.
Retighten the flywheel bolts by an additional 90°.
Check that the paint mark is at 90° position from the original location.
