For Vehicles Equipped With Vehicle Skid Control (VSC) System

FOR VEHICLES EQUIPPED WITH VEHICLE SKID CONTROL (VSC) SYSTEM

a. NOTICES WHEN USING DRUM TESTER

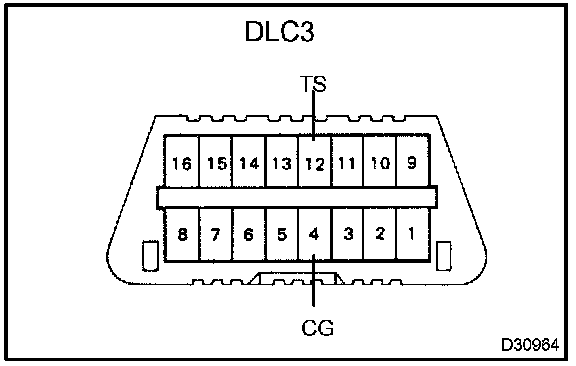

1. Before begining testing, disable the Vehicle Skid Control system (VSC). To disable the VSC, turn the ignition switch OFF and connect SST to terminals TS and CG of DLC3.

SST 09843-18040

NOTE:
- Confirm that the VSC warning light blinks.
- VSC system will be reset when the engine is restarted.
- Fasten the vehicle with lock chains.

b. NOTICES OF RELATED OPERATIONS TO VSC
1. Do not carry out unnecessary installation and removal as it might affect the adjustment of VSC related parts.
2. Be sure to follow the instructions for work preparation and final confirmation of proper operation of the VSC system.
