PROBLEM SYMPTOMS TABLE

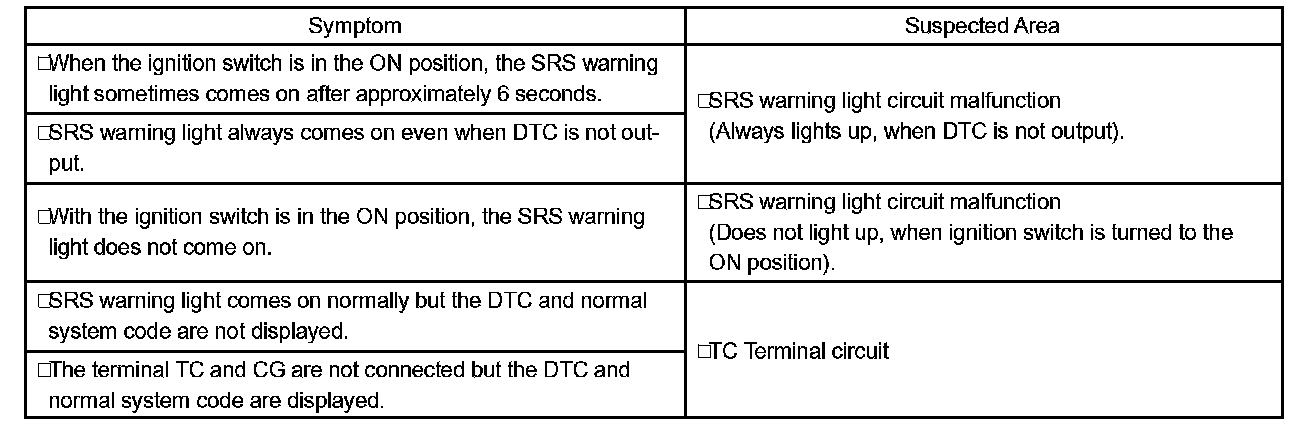

Problem Symptoms Table:
HINT:
Proceed to the troubleshooting for each circuit in the table.
