Without Scan Tool

DTC CHECK (USING SST CHECK WIRE)

a. Output the DTCs (Present trouble code).




1. Turn the ignition switch to the ON position, and wait for approximately 60 seconds.

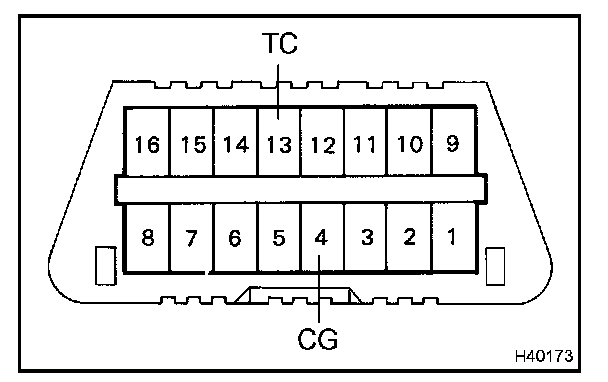

2. Using SST(s), connect terminals TC and CG of the DLC3.

SST 09843-18040

NOTE: Connect the terminals to the correct positions to avoid a malfunction.

b. Output the DTCs (Past trouble code).
1. Using SST(s), connect terminals TC and CG of the DLC3.

SST 09843-18040

NOTE: Connect the terminals to the correct positions to avoid a malfunction.

2. Turn the ignition switch to the ON position, and wait for approximately 60 seconds.

c. Read the DTCs.

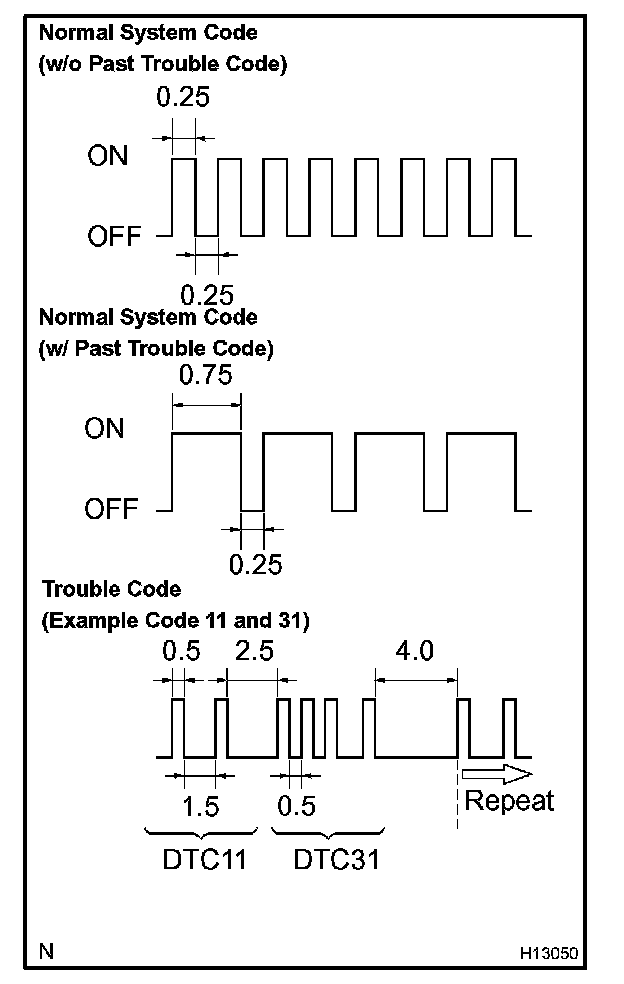

1. Read the blinking patterns of the DTCs. Examples of the blinking patterns for normal system code, codes 11 and 31 are shown in the illustration to the left.
- Normal system code indication (w/o past trouble code) The light blinks twice per second.
- Normal system code indication (w/ past trouble code) When the past trouble code is stored in the airbag sensor assembly center, the light blinks only once a second.
- Trouble code indication
The first blinking indicates the first DTC. The seconds blinking occurs after a 1.5 second pause.

If there are more than 1 code, there will be a 2.5 second pause between each code. After all codes are shown, there will be a 4.0 second pause, and they will all be repeated.

HINT:
- If 2 or more malfunctions are found, the indication begins with the smaller numbered code.
- If DTCs are indicated without connecting the terminals, proceed to the "TC terminal circuit".
