SRS Warning Light Circuit Malfunction (Does Not Light Up, When Ignition Switch Is Turned To On)

SRS WARNING LIGHT CIRCUIT MALFUNCTION (DOES NOT LIGHT UP, WHEN IGNITION SWITCH IS TURNED TO ON)

CIRCUIT DESCRIPTION

The SRS warning light is located on the combination meter assembly.

When the SRS is normal, the SRS warning light comes on for approximately 6 seconds after the ignition switch is turned from the LOCK position to the ON position, and then goes off automatically.

If there is a malfunction in the SRS, the SRS warning light comes on to inform the driver of a problem.

When terminals TC and CG of the DLC3 are connected, the DTC is displayed by blinking the SRS warning light.

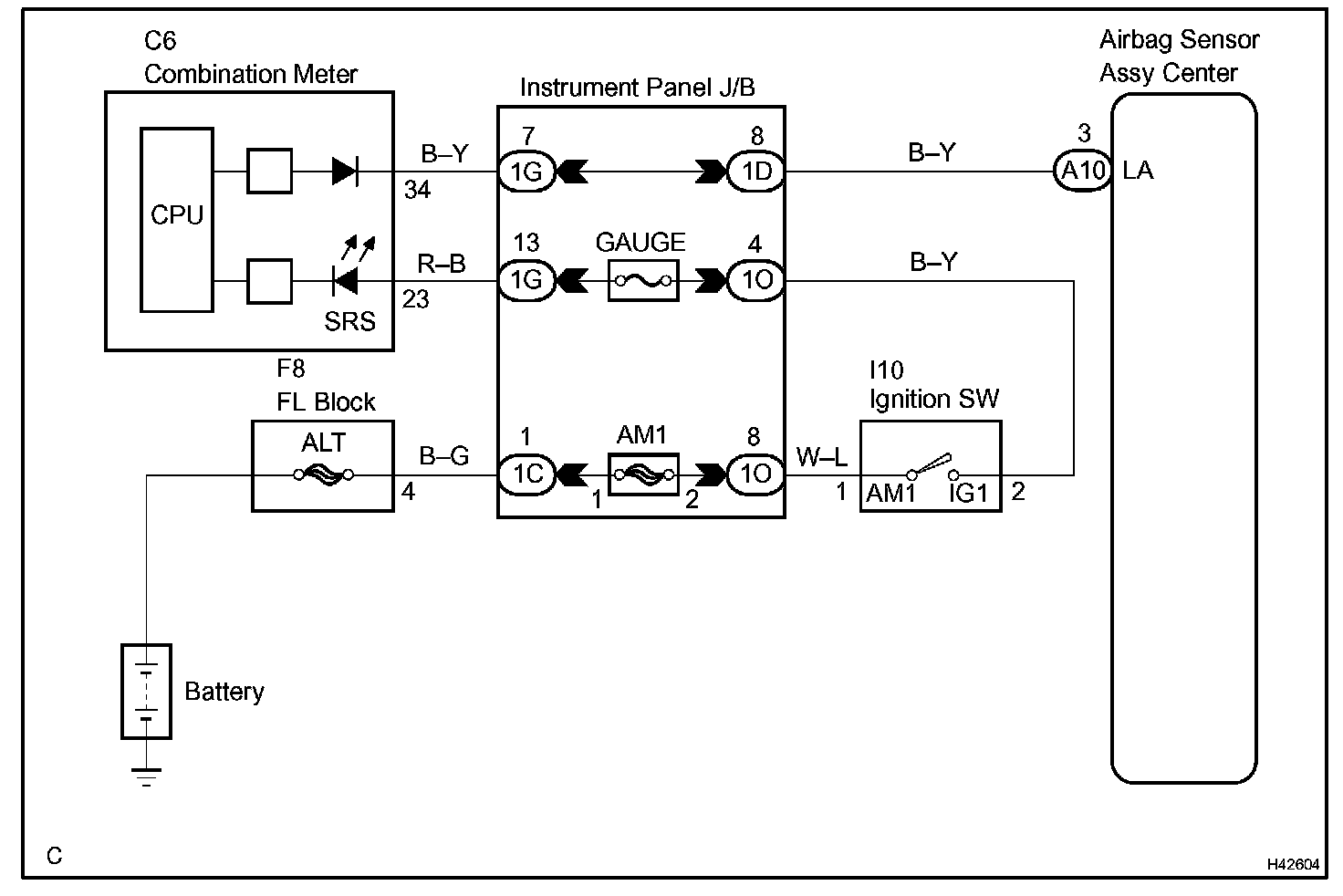

Wiring Diagram:

Step 1 - 2:

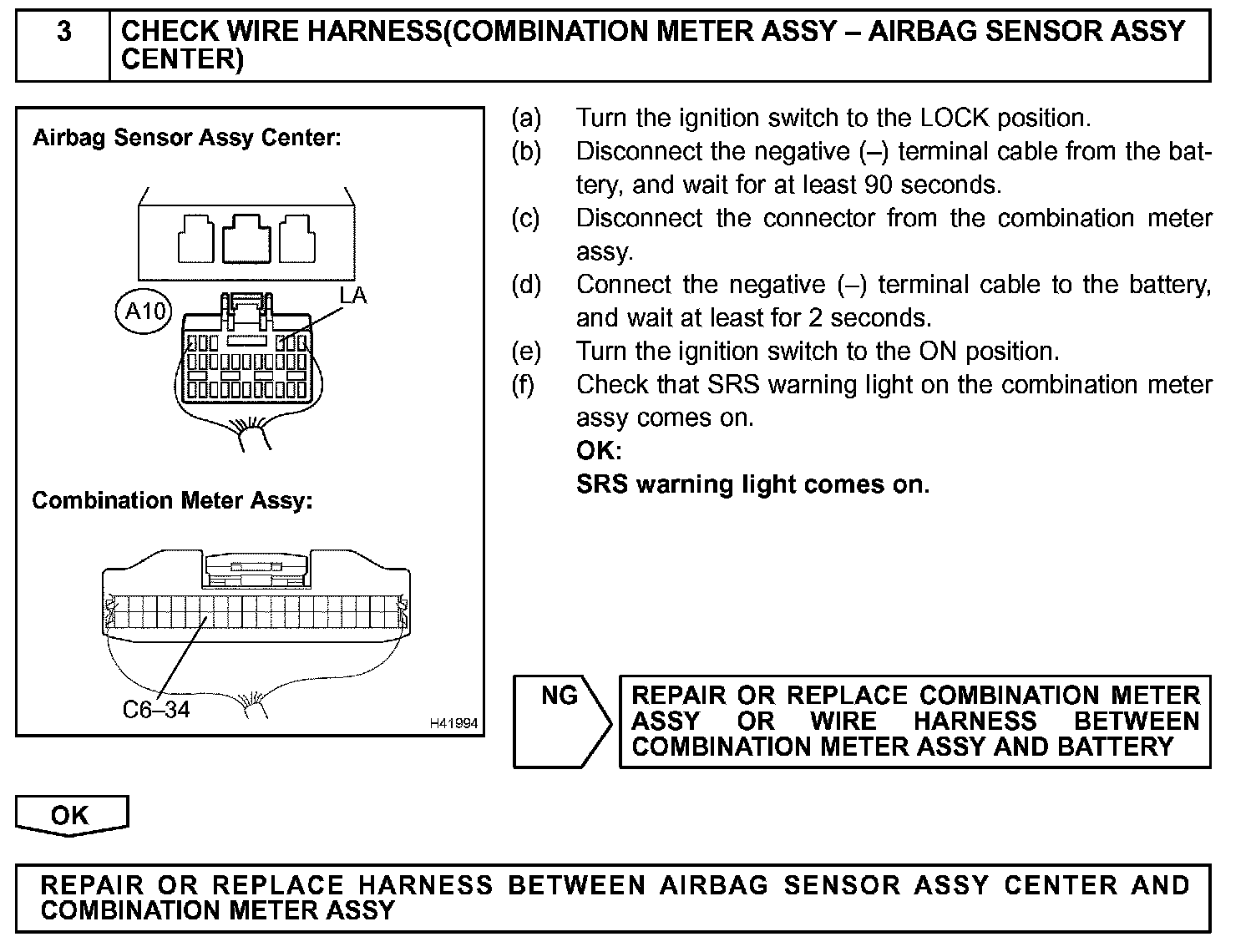

Step 3:

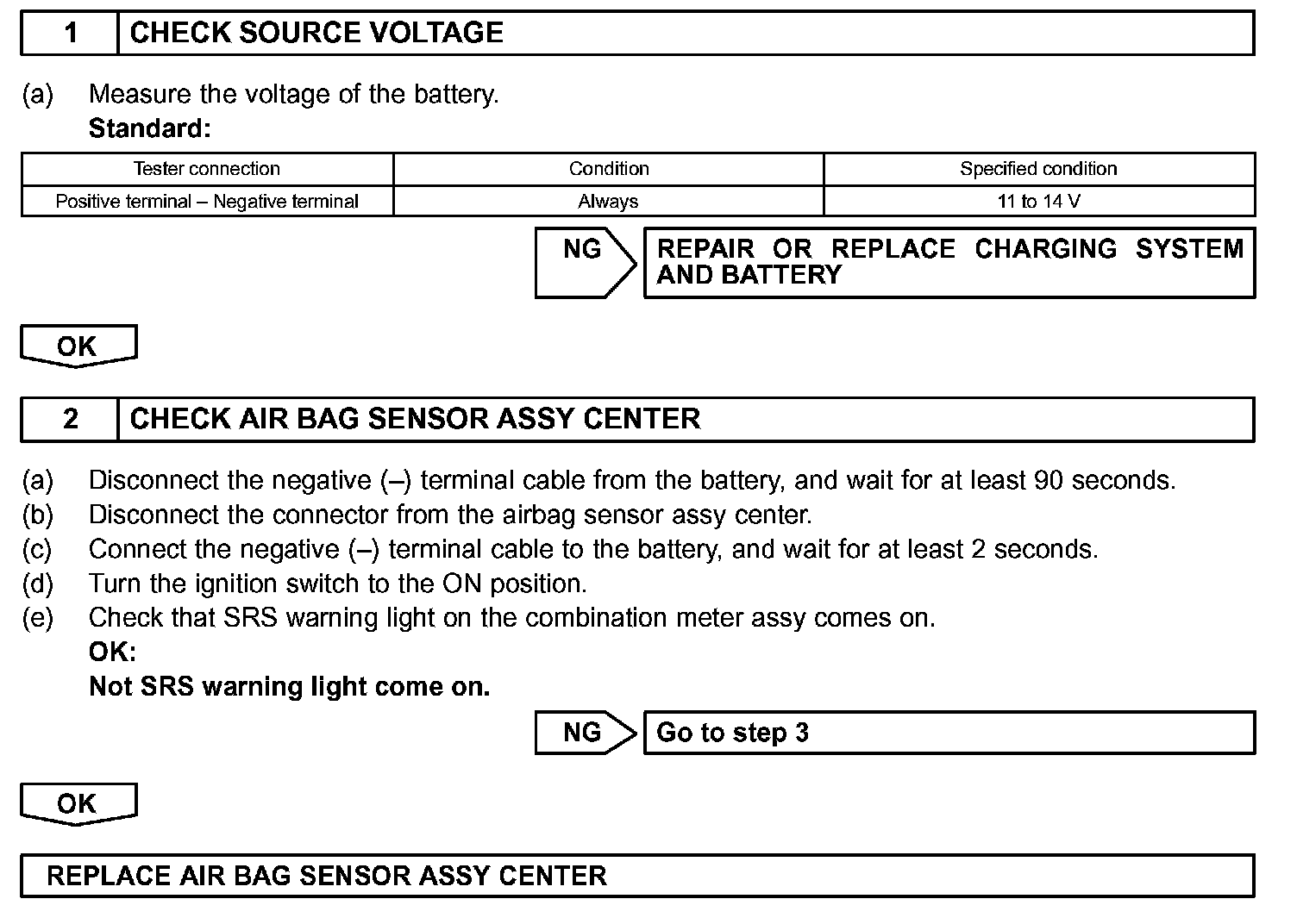

INSPECTION PROCEDURE
