Instrument Panel Passenger Airbag Assy

VEHICLE NOT INVOLVED IN COLLISION
a. Perform a diagnostic system check.

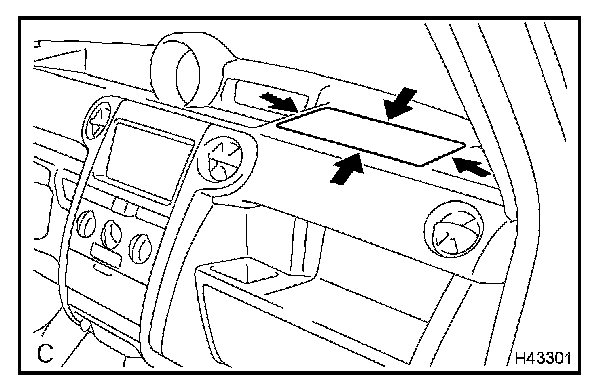

b. Perform a visual check which includes the following items with the instrument panel passenger airbag assembly installed in the vehicle: Cuts, minute cracks or marked discoloration on the instrument panel around the instrument panel passenger air-bag assembly.




VEHICLE INVOLVED IN COLLISION AND AIRBAG IS NOT DEPLOYED
a. Perform a diagnostic system check.

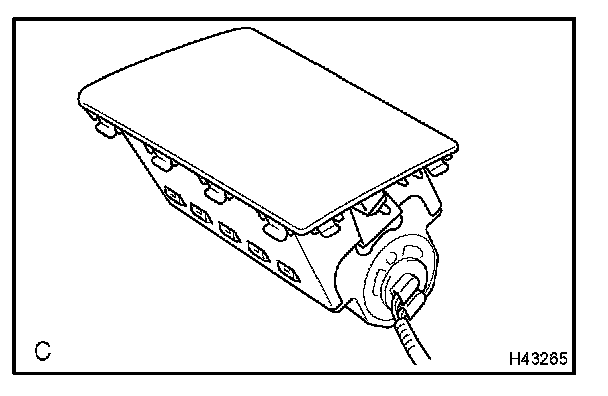

b. Perform a visual check which includes the following items with the instrument panel passenger airbag assembly removed from the vehicle:
- Cuts, minute cracks or marked discoloration on the instrument panel passenger airbag assembly.
- Cuts and cracks in wire harness, and chips in connector.

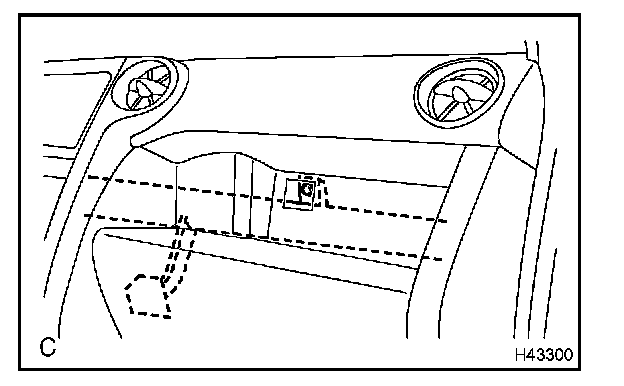

- Deformation or cracks on the instrument panel and instrument panel reinforcement.

HINT:
- If the instrument panel or instrument panel reinforcement is deformed or cracked, never repair it. Always replace it with a new one.




- There should be no interference between the instrument panel sub-assembly upper and the instrument panel passenger airbag assembly.

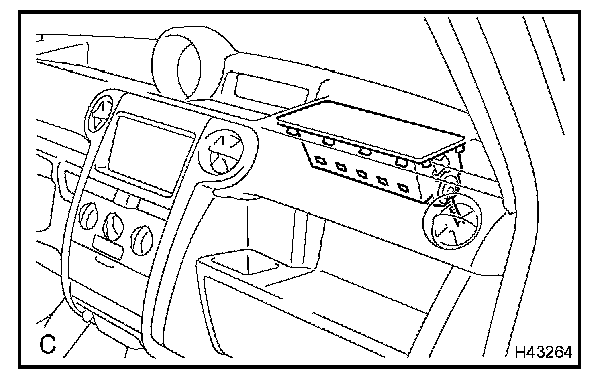

CAUTION: For removal and installation procedures of the instrument panel passenger airbag assembly, see "Replacement", and be sure to follow the correct procedure.
