Replacement

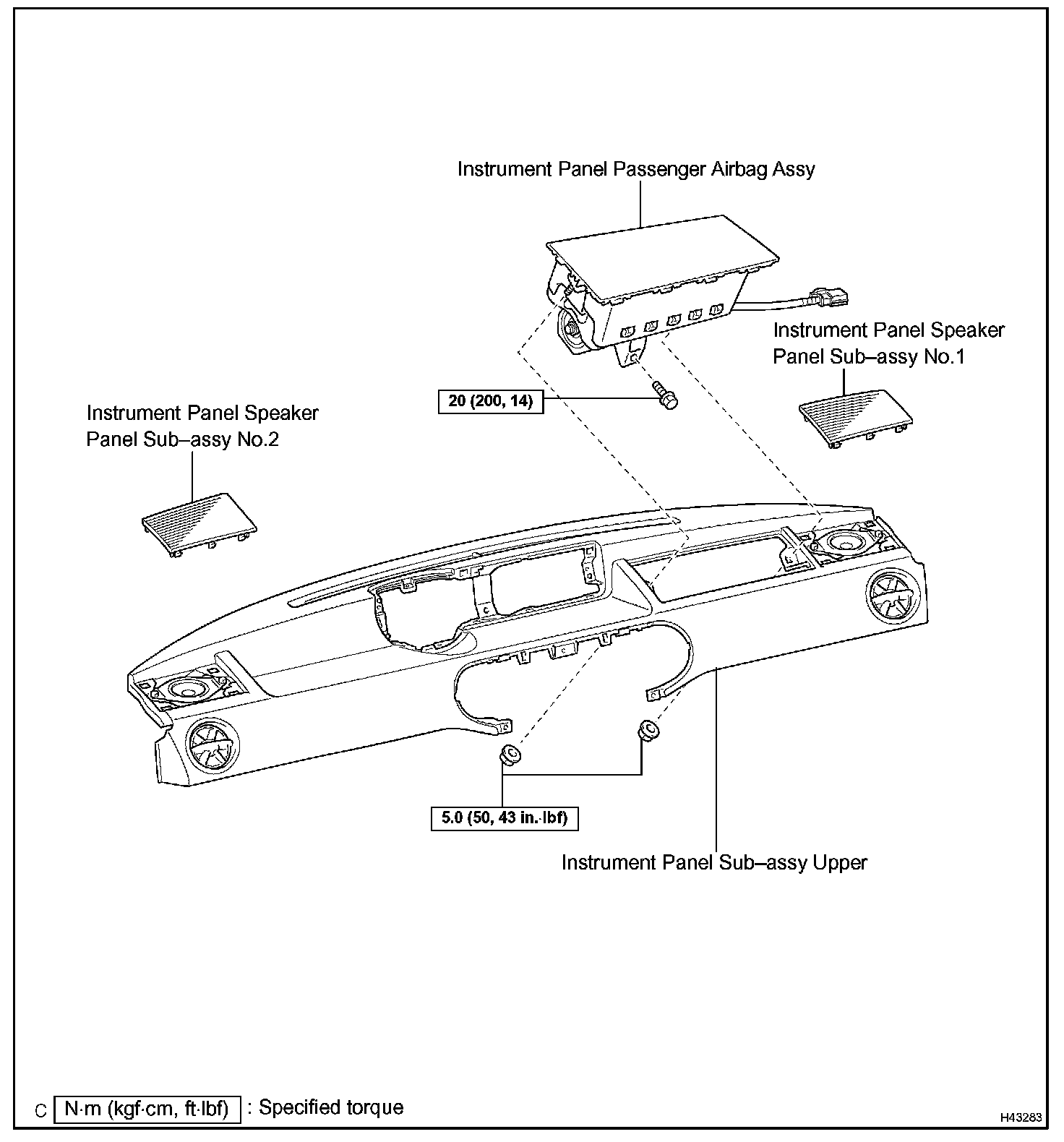

Instrument Panel Passenger Airbag Assy:

REPLACEMENT

1. OBSERVE RESTRAINT SYSTEMS SERVICE PRECAUTIONS
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY NO.1
4. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY NO.2

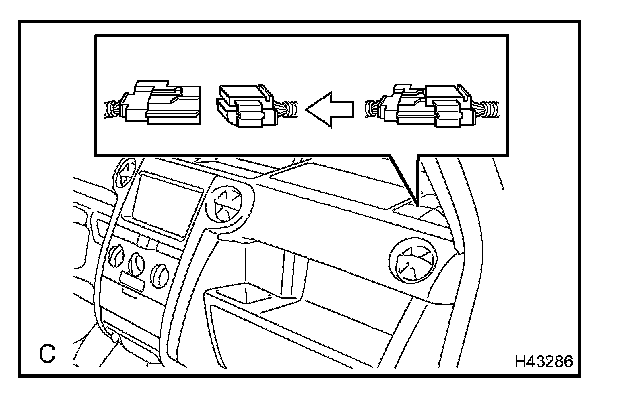

5. DISCONNECT INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY CONNECTOR
a. Remove the passenger airbag connector clip.
b. Disconnect the passenger airbag connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

6. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER W/INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
7. REMOVE INSTRUMENT PANEL PASSENGER AIR BAG ASSEMBLY

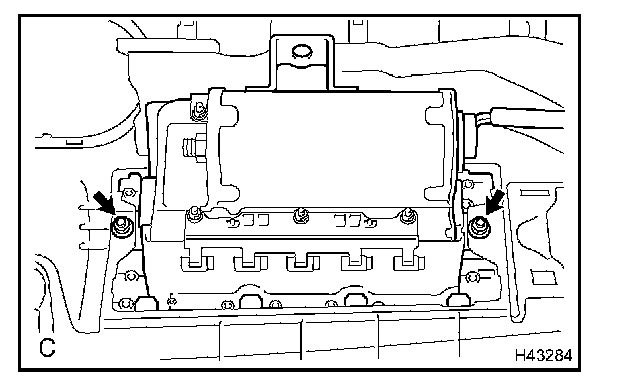

a. Remove the 2 nuts.

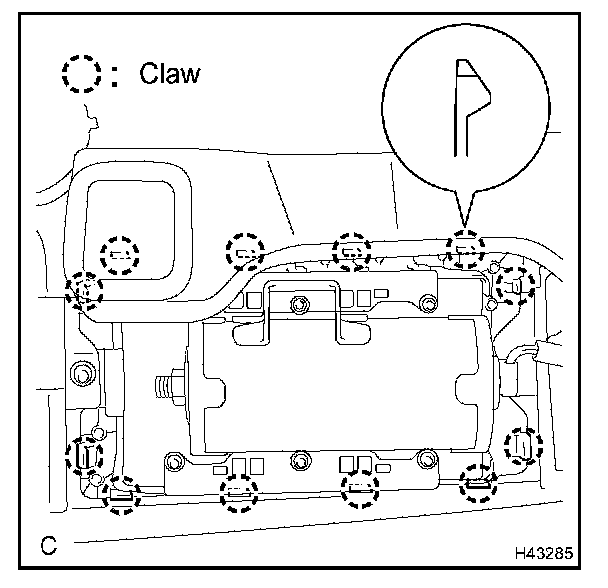

b. Disengage the 12 claws of the instrument panel passenger airbag assembly, and then remove the instrument panel passenger airbag assembly from the instrument panel sub-assembly upper.

8. INSTALL INSTRUMENT PANEL PASSENGER AIR BAG ASSEMBLY
a. Install the instrument panel passenger airbag with 2 nuts.

Torque: 5.0 Nm (50 kgf.cm, 43 in.lbf)

9. INSPECT INSTRUMENT PANEL PASSENGER AIR BAG ASSEMBLY
10. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY UPPER W/INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY
11. CONNECT INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY CONNECTOR
12. INSPECT SRS WARNING LIGHT
Refer to Air Bag Systems; Testing and Inspection.
