Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

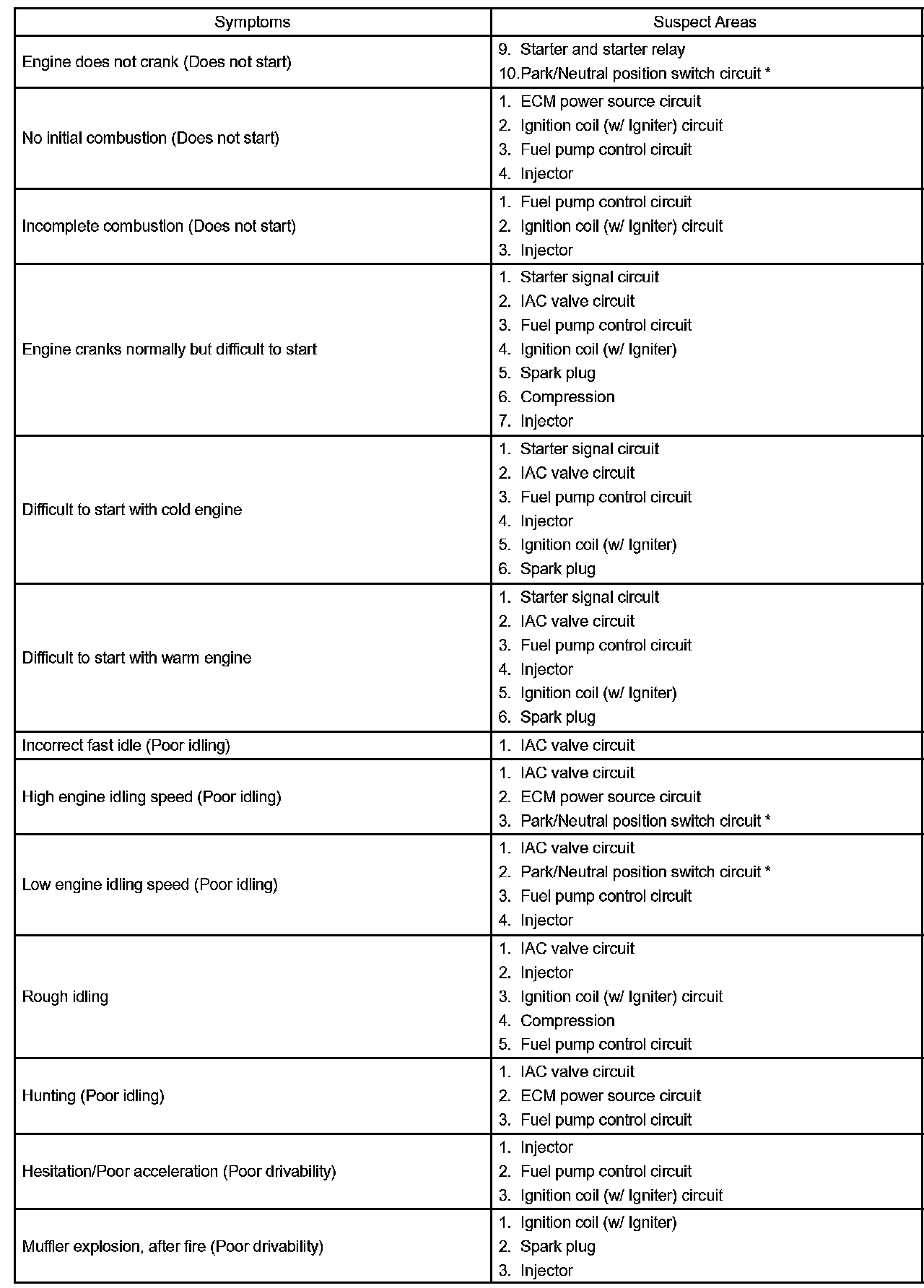

Problem Symptoms Table Part 1:

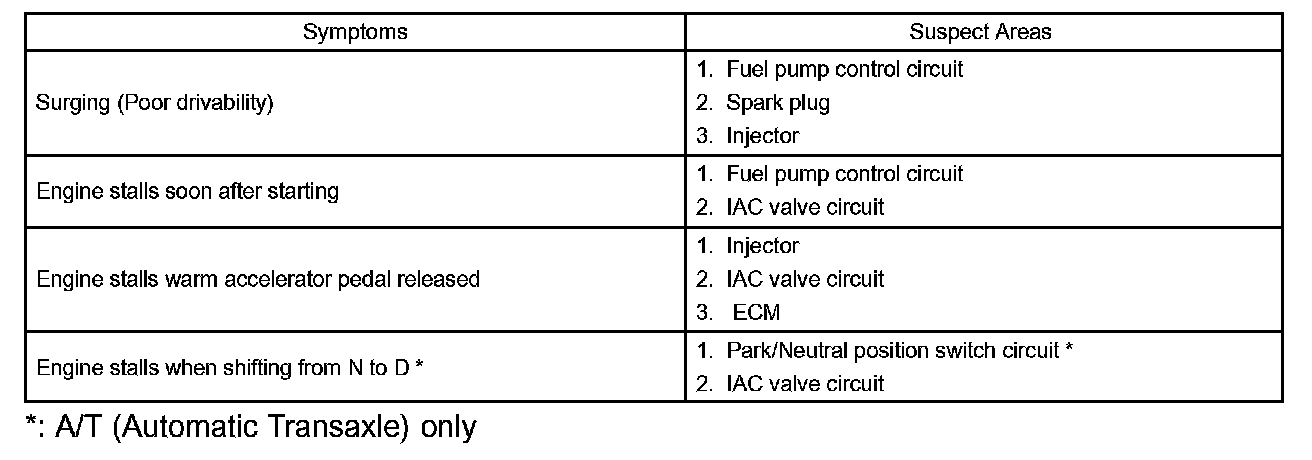

Problem Symptoms Table Part 2:

HINT: When a malfunction is not confirmed by a DTC (Diagnostic Trouble Code) check and the cause of problem cannot be identified through a basic inspection, troubleshoot according to the priority order indicated in the table.
