Turn Signal Lamp: Service and Repair
SIDE TURN SIGNAL LAMP ASSEMBLY LHOVERHAUL
1. REMOVE SIDE TURN SIGNAL LAMP ASSEMBLY LH

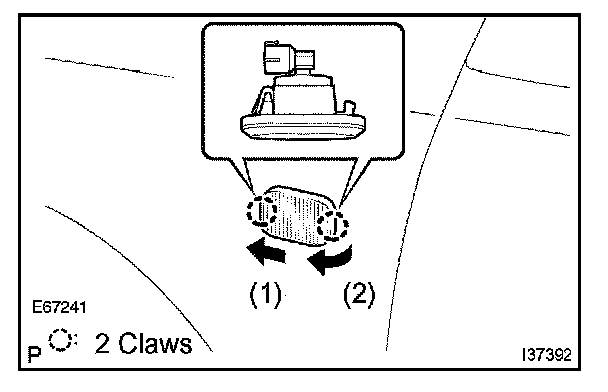

a. Disconnect the side turn signal lamp assembly LH as shown in the illustration.
b. Disconnect the connector and remove the side turn signal lamp assembly LH.
2. REMOVE SIDE TURN SIGNAL LAMP BULB

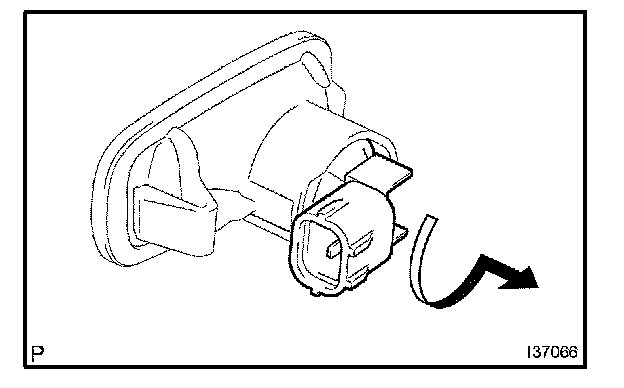

a. Remove the side turn signal lamp bulb and side turn signal lamp socket and wire as shown in the illustration.
b. Remove the side turn signal lamp bulb from the side turn signal lamp socket and wire.
3. REMOVE SIDE TURN SIGNAL LAMP SOCKET AND WIRE
4. REMOVE SIDE TURN SIGNAL LAMP LENS LH
