Turn Signal Flasher: Testing and Inspection

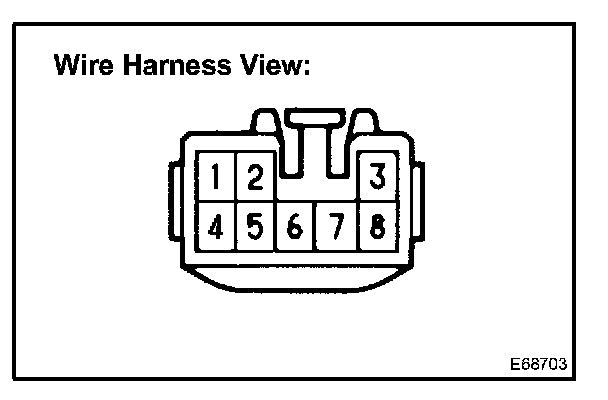

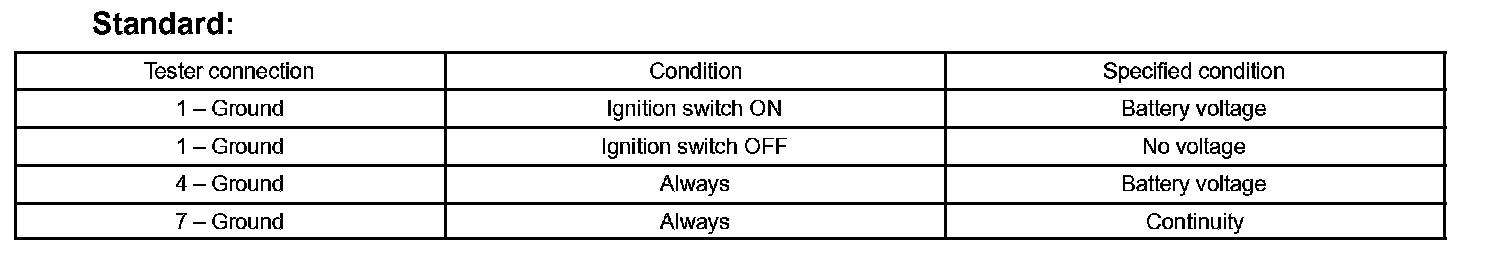

a. Disconnect the connector from the turn signal flasher assembly and inspect the connector on the wire harness side as shown in the table.

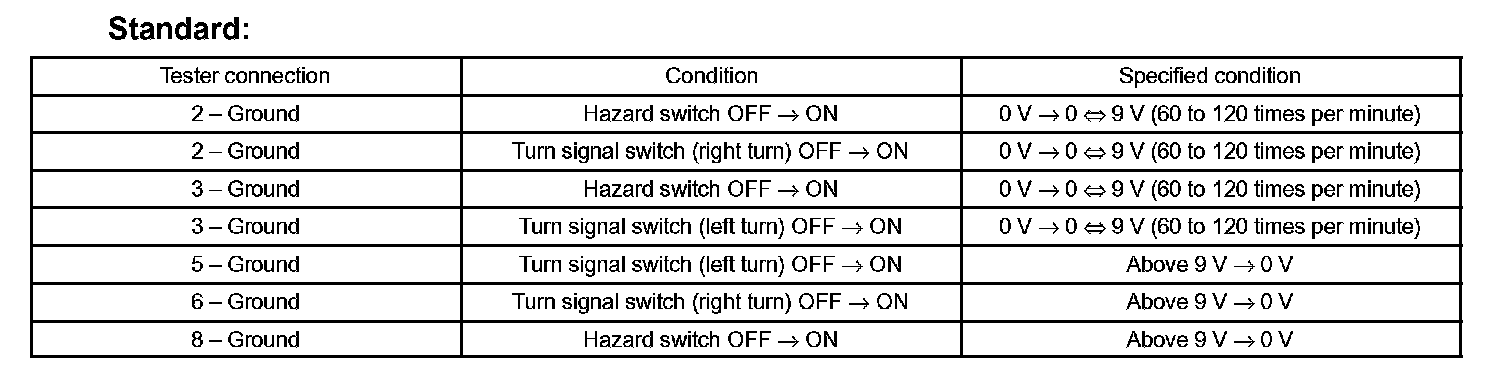

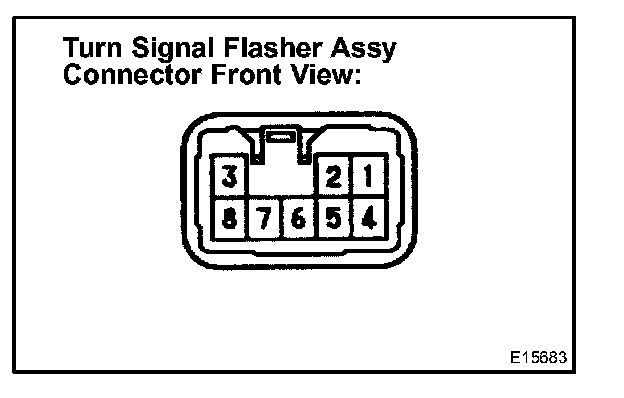

b. Connect the connector to the turn signal flasher assembly and inspect the wire harness side connector from the back as shown in the table.
