Component Inspection

INSPECTION

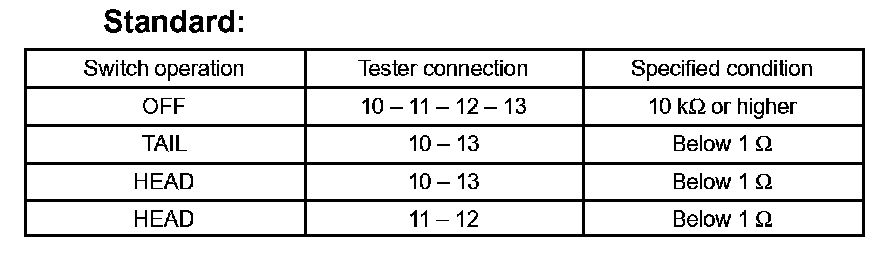

1. HEADLAMP DIMMER SWITCH ASSEMBLY
a. Inspect the light control switch continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.

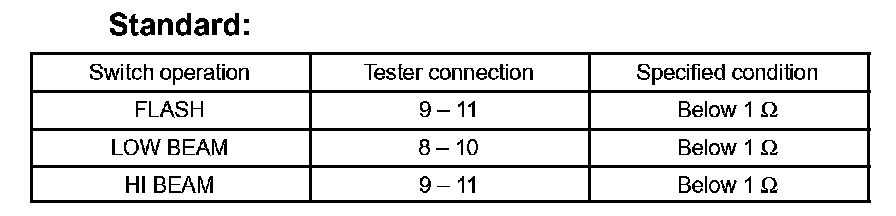

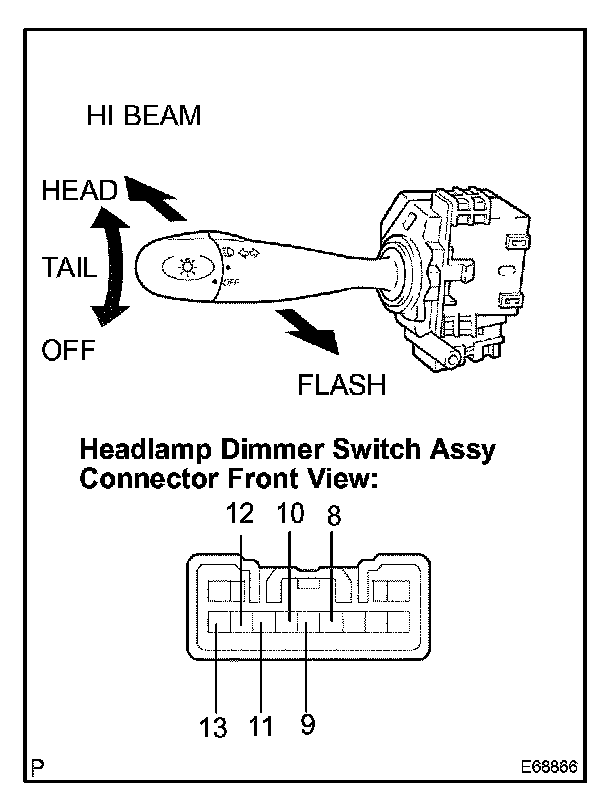

b. Inspect the headlight dimmer switch continuity.
1. Measure the resistance according to the value(s) in the table.

HINT: Turn the headlamp dimmer switch to the HEAD position when checking " LOW BEAM" and " HI BEAM".

Replace the switch as necessary.

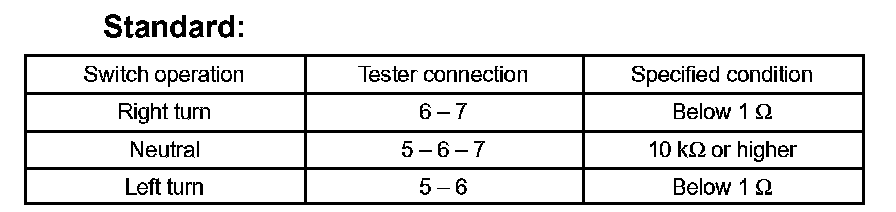

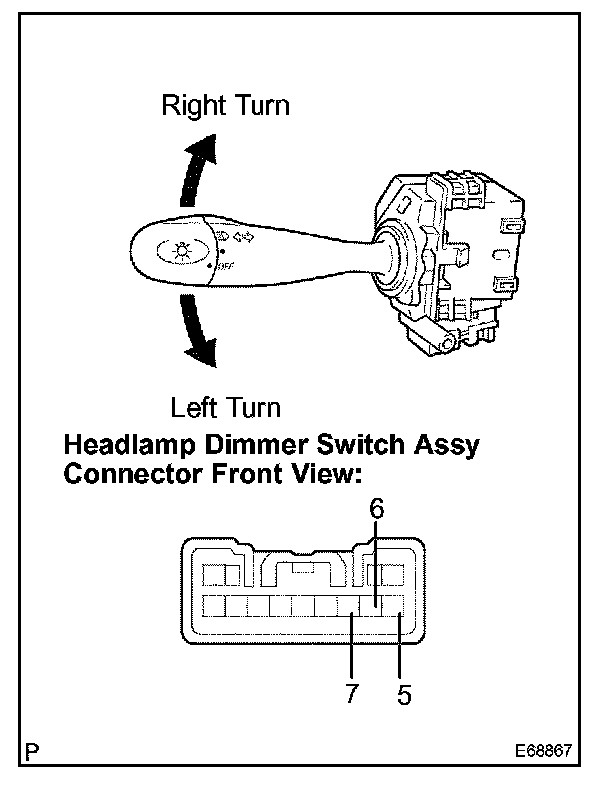

c. Inspect the turn signal switch continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.

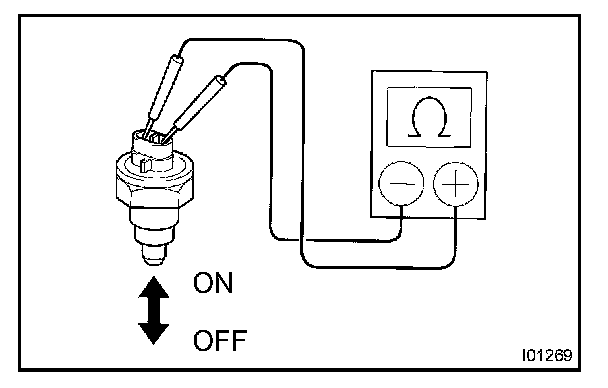

2. BACK UP LAMP SWITCH ASSEMBLY (M/T TRANSAXLE)
a. Inspect the back up lamp switch assembly continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.

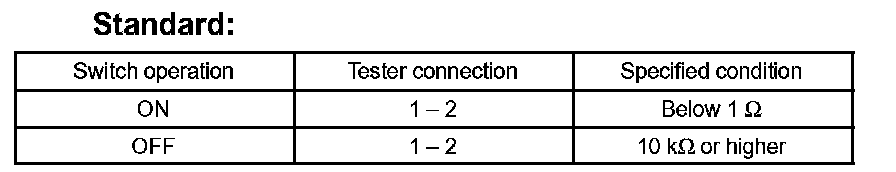

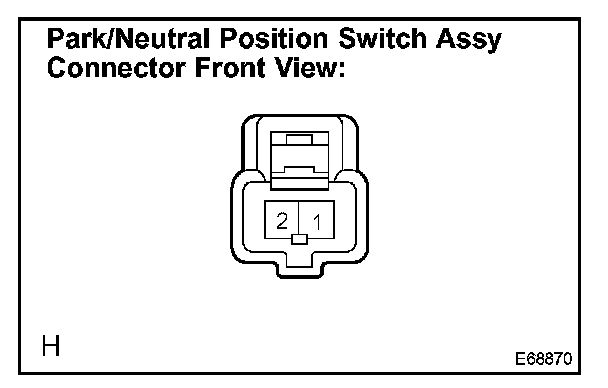

3. PARK/NEUTRAL POSITION SWITCH ASSEMBLY (A/T TRANSAXLE)

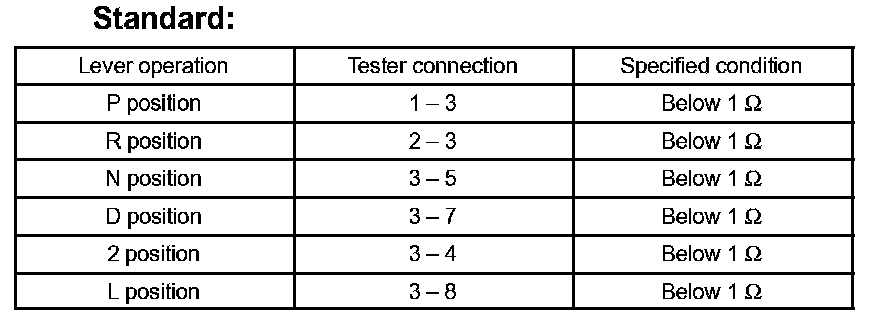

a. Inspect the park/neutral position switch assembly continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.

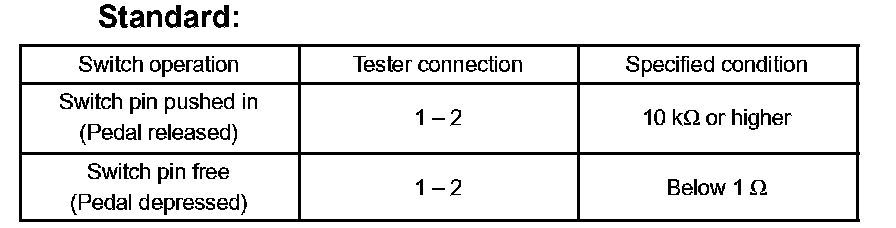

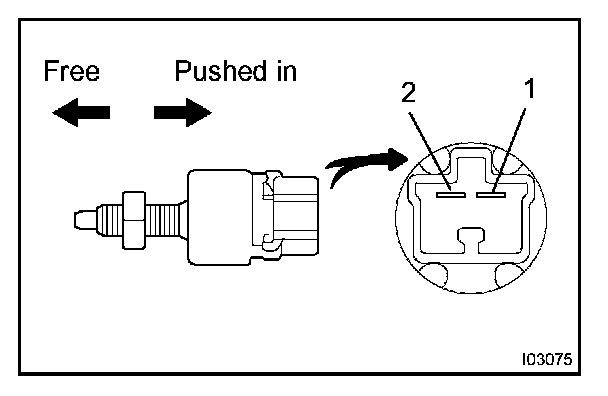

4. STOP LAMP SWITCH ASSEMBLY
a. Inspect the stop lamp switch assembly continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.




5. CENTER CLUSTER MODULE SWITCH
a. Inspect the hazard warning signal switch continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.
If the value is not as specified, replace the integration control & panel assembly.

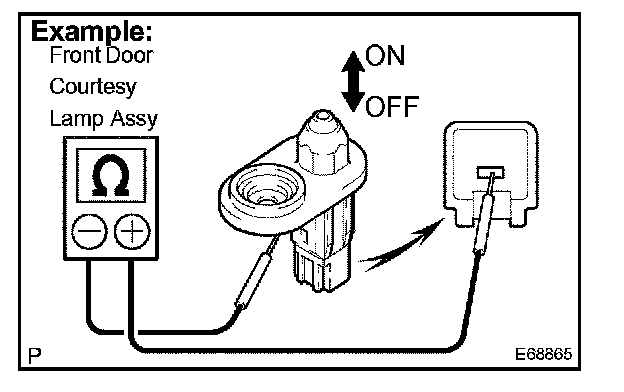

6. FRONT DOOR COURTESY LAMP SWITCH ASSEMBLY

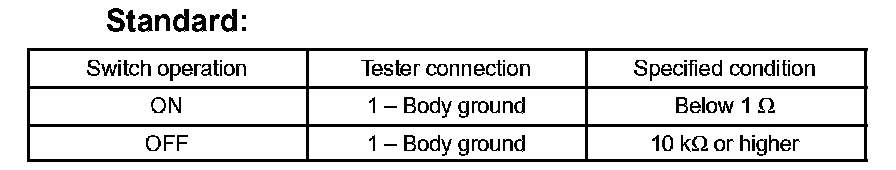

a. Inspect the front door courtesy lamp switch assembly continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.

7. REAR DOOR COURTESY LAMP SWITCH ASSEMBLY
a. Inspect the rear door courtesy lamp switch assembly continuity.
1. Check the rear door courtesy lamp switch assembly using the same procedures as for the front door courtesy lamp switch assembly.
Standard: Same as front.
Replace the switch as necessary.

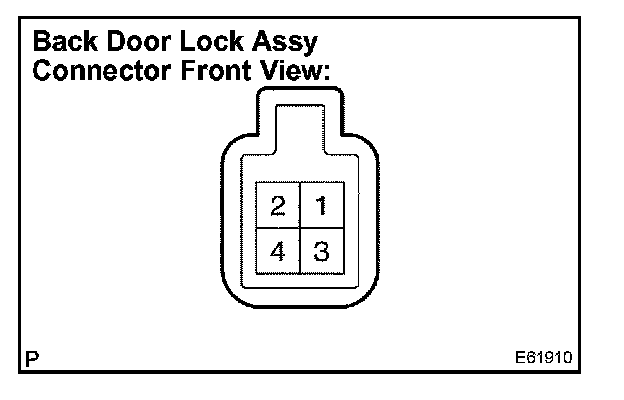

8. BACK DOOR COURTESY LAMP SWITCH ASSEMBLY
a. Inspect the back door courtesy lamp switch assembly continuity.




1. Measure the resistance according to the value(s) in the table.

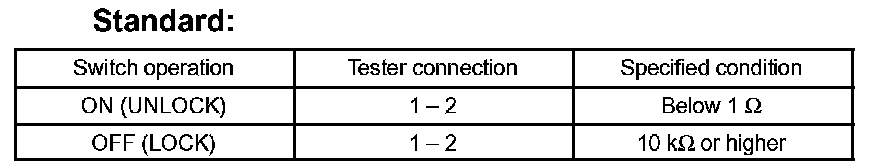

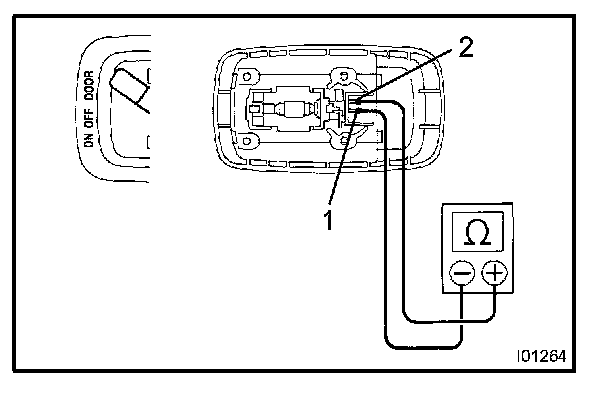

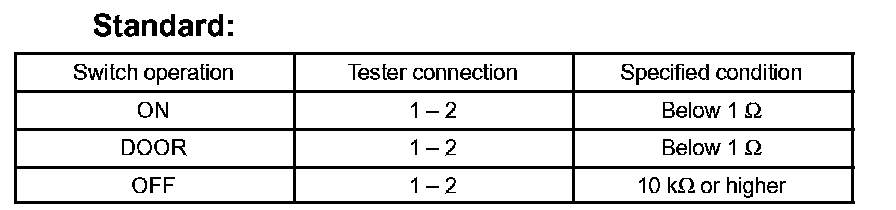

9. ROOM LAMP ASSEMBLY NO.1
a. Inspect the room lamp assembly No.1 continuity.




b. Measure the resistance according to the value(s) in the table.
Replace the lamp as necessary.

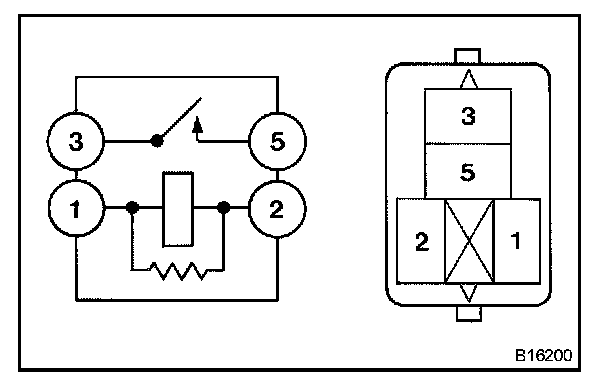

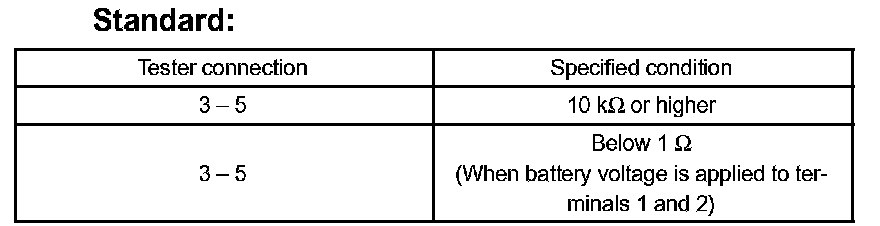

10. HEADLAMP RELAY
a. Inspect the headlamp relay continuity.




1. Measure the resistance according to the value(s) in the table.
Replace the relay as necessary.
