Low Pitched Horn Assy

LOW PITCHED HORN ASSEMBLY

REPLACEMENT

HINT: The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.




1. REMOVE LOW PITCHED HORN ASSEMBLY
a. Disconnect the connector.

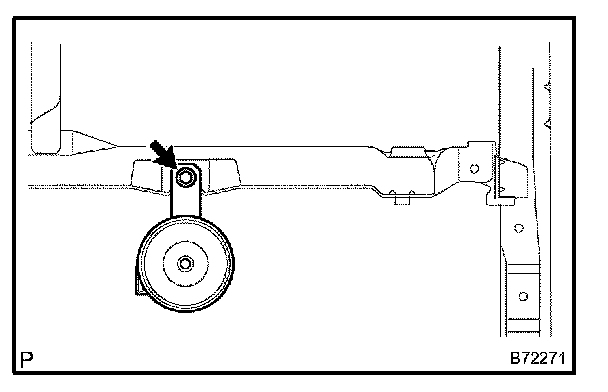

b. Remove the bolt and horn.

2. INSTALL LOW PITCHED HORN ASSEMBLY
a. Attach the horn stay to the body panel and then install the horn with the bolt.

Torque: 19.5 Nm (199 kgf.cm, 14 ft.lbf)

b. Connect the connector.
