Headlamp: Service and Repair

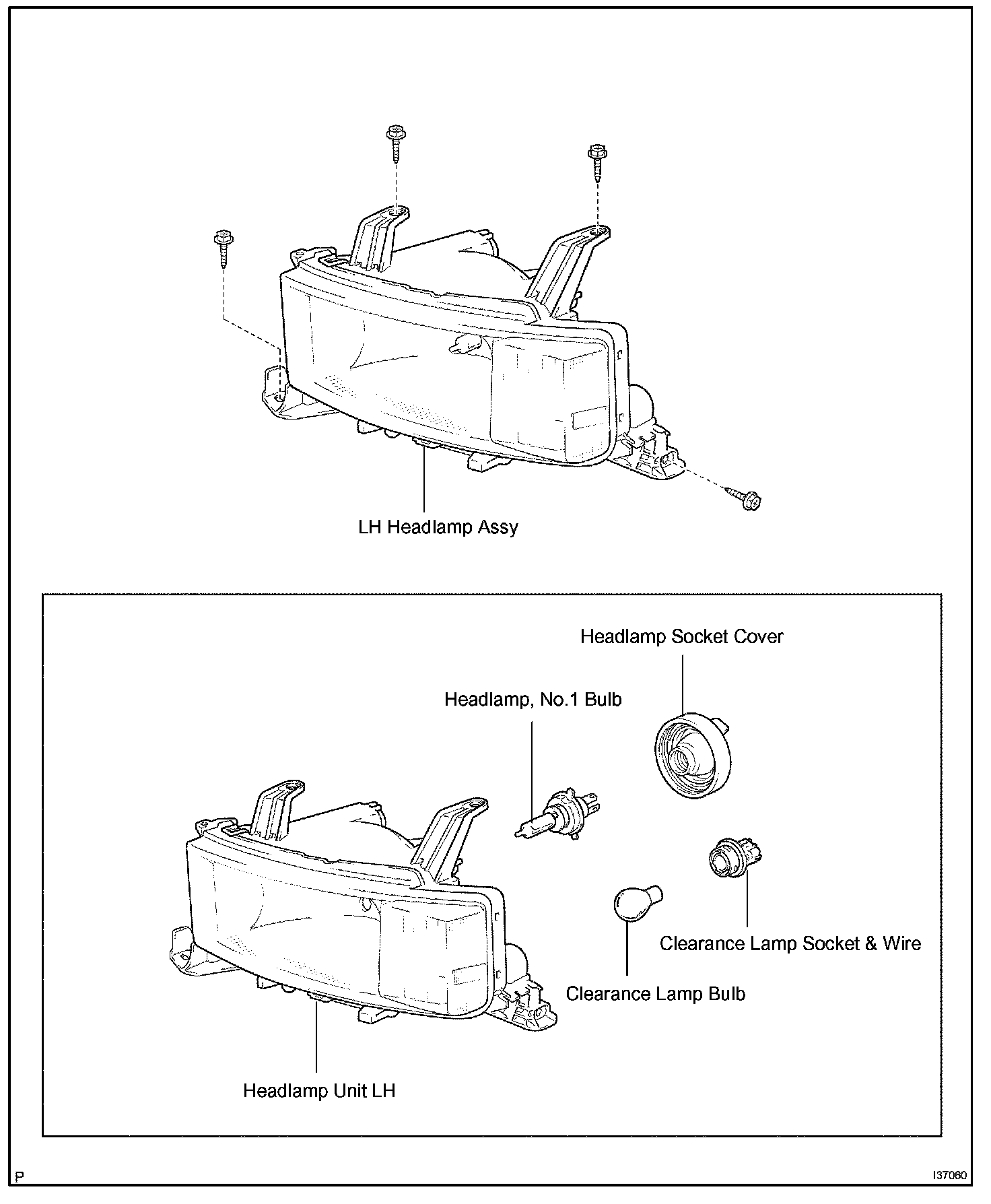

LH Headlamp Assy:

OVERHAUL

1. REMOVE RADIATOR GRILLE
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE RADIATOR GRILLE LOWER
5. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET LH
6. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET RH
7. REMOVE FRONT BUMPER COVER

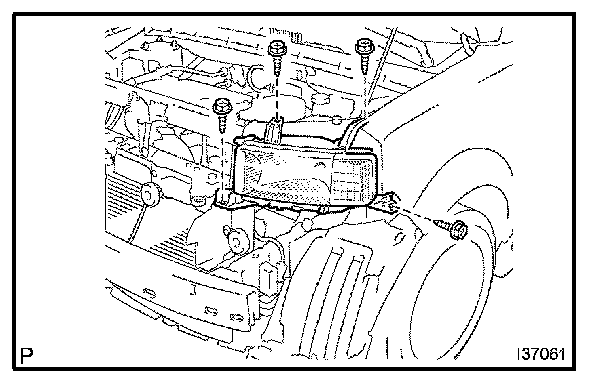

8. REMOVE LH HEADLAMP ASSEMBLY
a. Remove the 4 screws.
b. Disconnect the connectors and remove the headlamp assembly, LH.

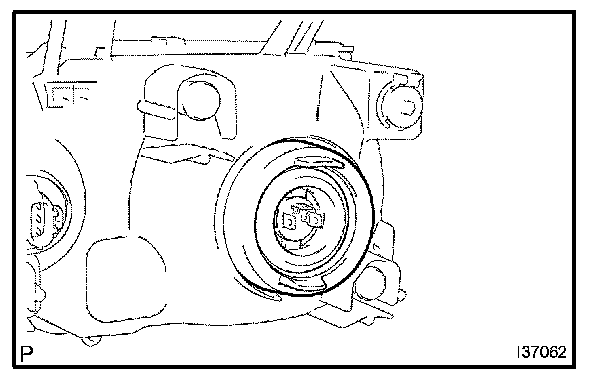

9. REMOVE HEADLAMP SOCKET COVER
a. Remove the headlamp socket cover.

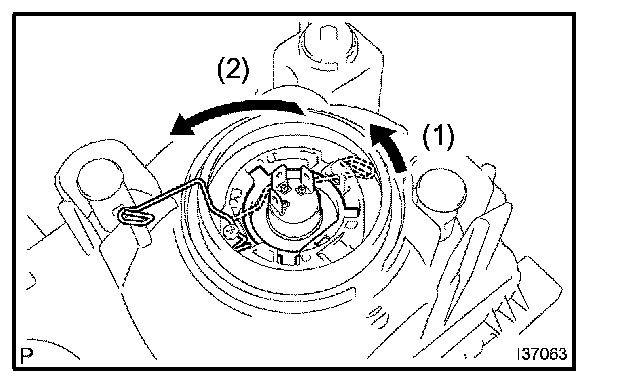

10. REMOVE HEADLAMP, NO.1 BULB
a. Remove the headlamp, No. 1 bulb as shown in the illustration.

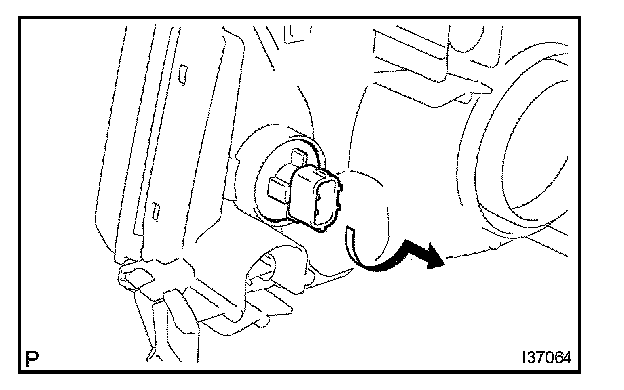

11. REMOVE CLEARANCE LAMP BULB
a. Remove the clearance lamp bulb and the clearance lamp socket & wire as shown in the illustration.
b. Remove the clearance lamp bulb from the clearance lamp socket & wire.

12. REMOVE CLEARANCE LAMP SOCKET & WIRE
13. REMOVE HEADLAMP UNIT LH
14. INSTALL FRONT BUMPER COVER
15. VEHICLE PREPARATION FOR HEADLAMP AIM ADJUSTMENT
Refer to Headlamp; Adjsutments.
16. PREPARATION FOR HEADLAMP AIMING (Using a tester)
Refer to Headlamp; Adjsutments.
17. PREPARATION FOR HEADLAMP AIMING (Using a screen)
Refer to Headlamp; Adjsutments.
18. HEADLAMP AIMING INSPECTION
Refer to Headlamp; Adjsutments.
19. HEADLAMP AIMING ADJUSTMENT
Refer to Headlamp; Adjsutments.
