Center Mounted Brake Lamp: Service and Repair

CENTER STOP LAMP ASSEMBLY

OVERHAUL




1. REMOVE CENTER STOP LAMP COVER

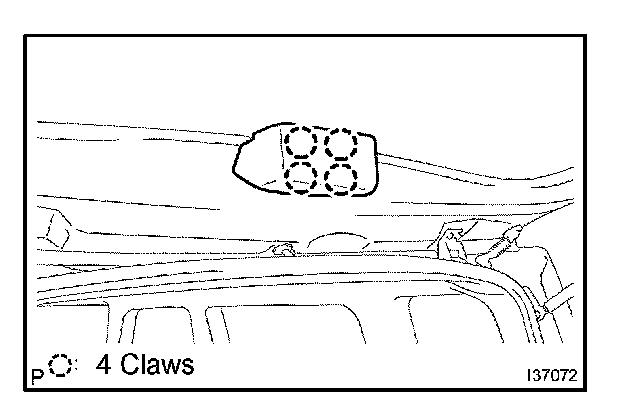

a. Disengage the 4 claws and remove the center stop lamp cover.

2. REMOVE CENTER STOP LAMP ASSEMBLY

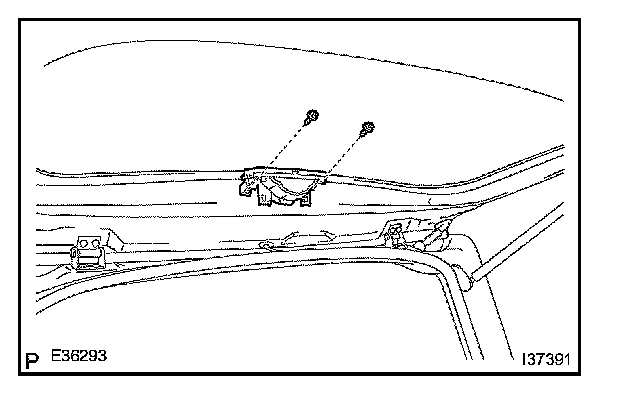

a. Remove the 2 screws.
b. Disconnect the connector and remove the center stop lamp assembly.

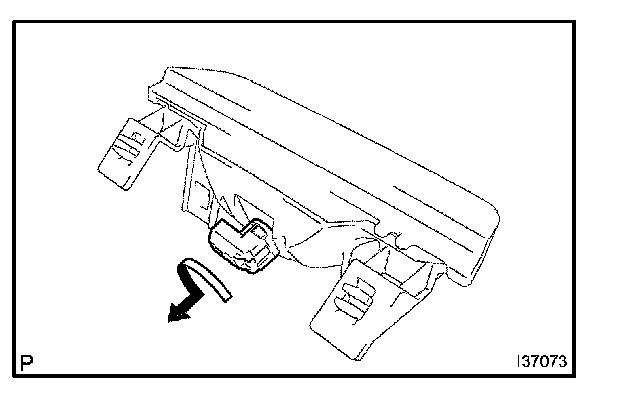

c. Remove the center stop lamp bulb as shown in the illustration.
