Instrument Panel, Gauges and Warning Indicators: Tools and Equipment

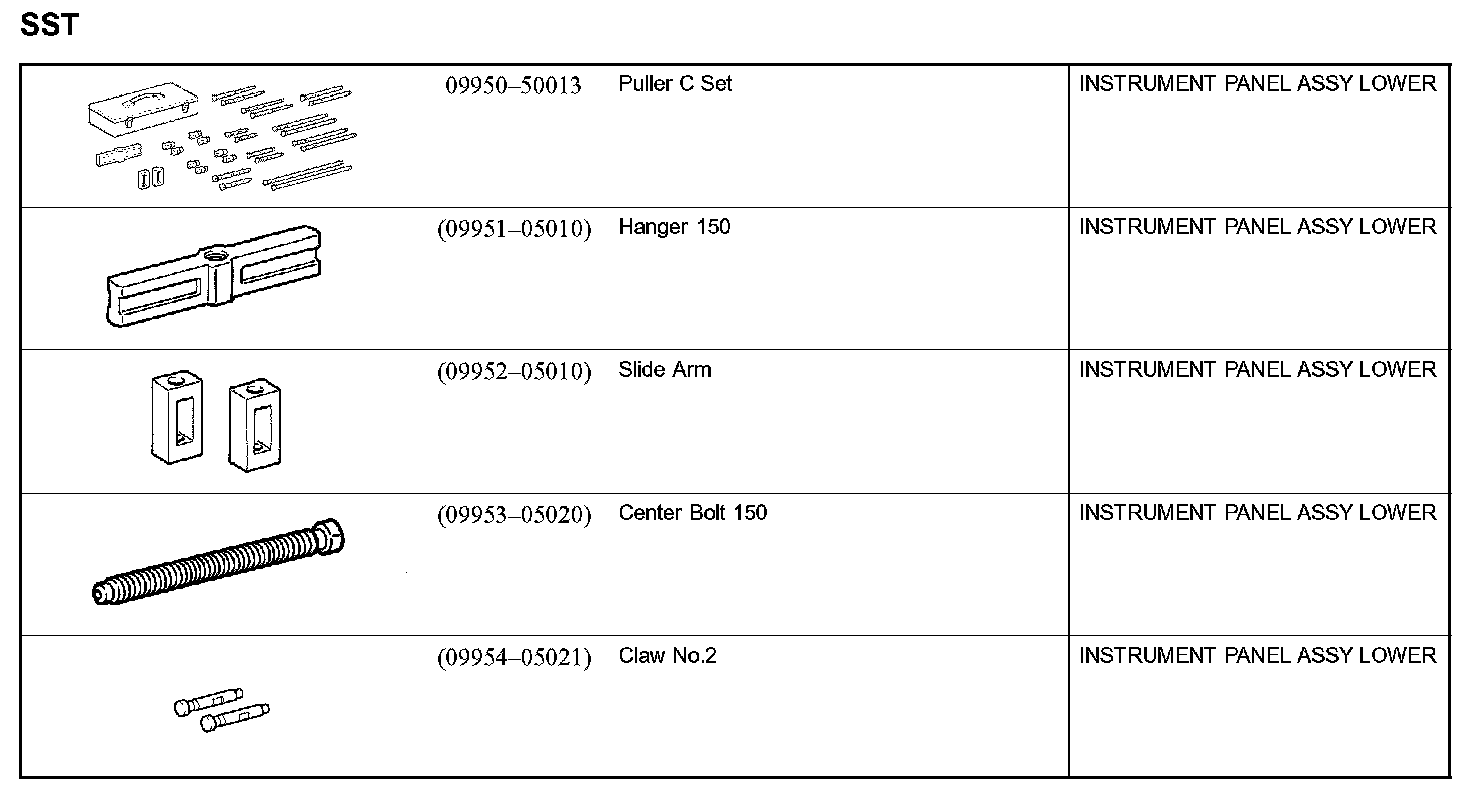

Instrument Panel / Meter - SST:

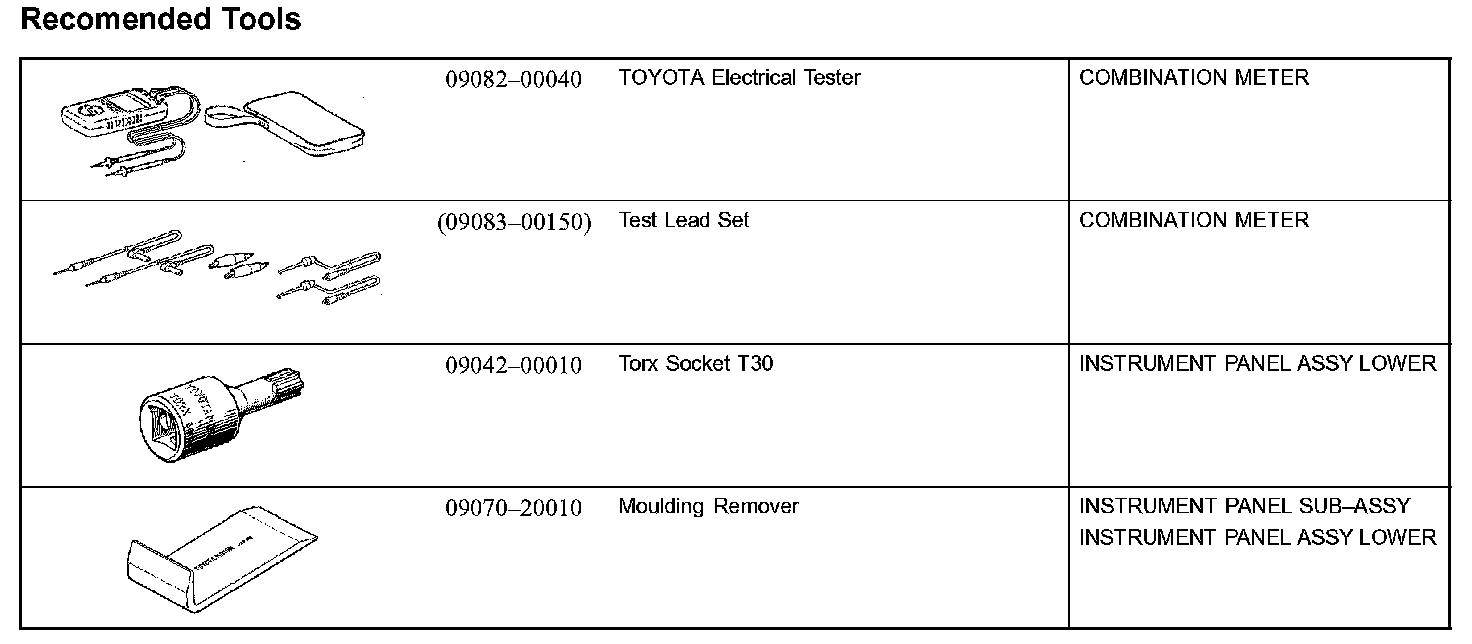

Instrument Panel / Meter - Recommended Tools:

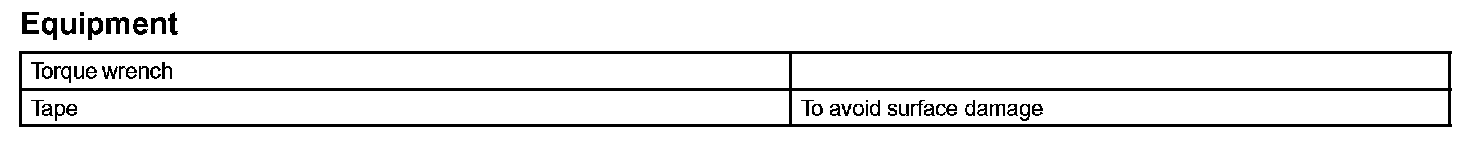

Instrument Panel / Meter - Equipment:
