Seat Belt Warning Lamp For Front Passenger Seat Does Not Flash

SEAT BELT WARNING LAMP FOR FRONT PASSENGER'S SEAT DOES NOT FLASH

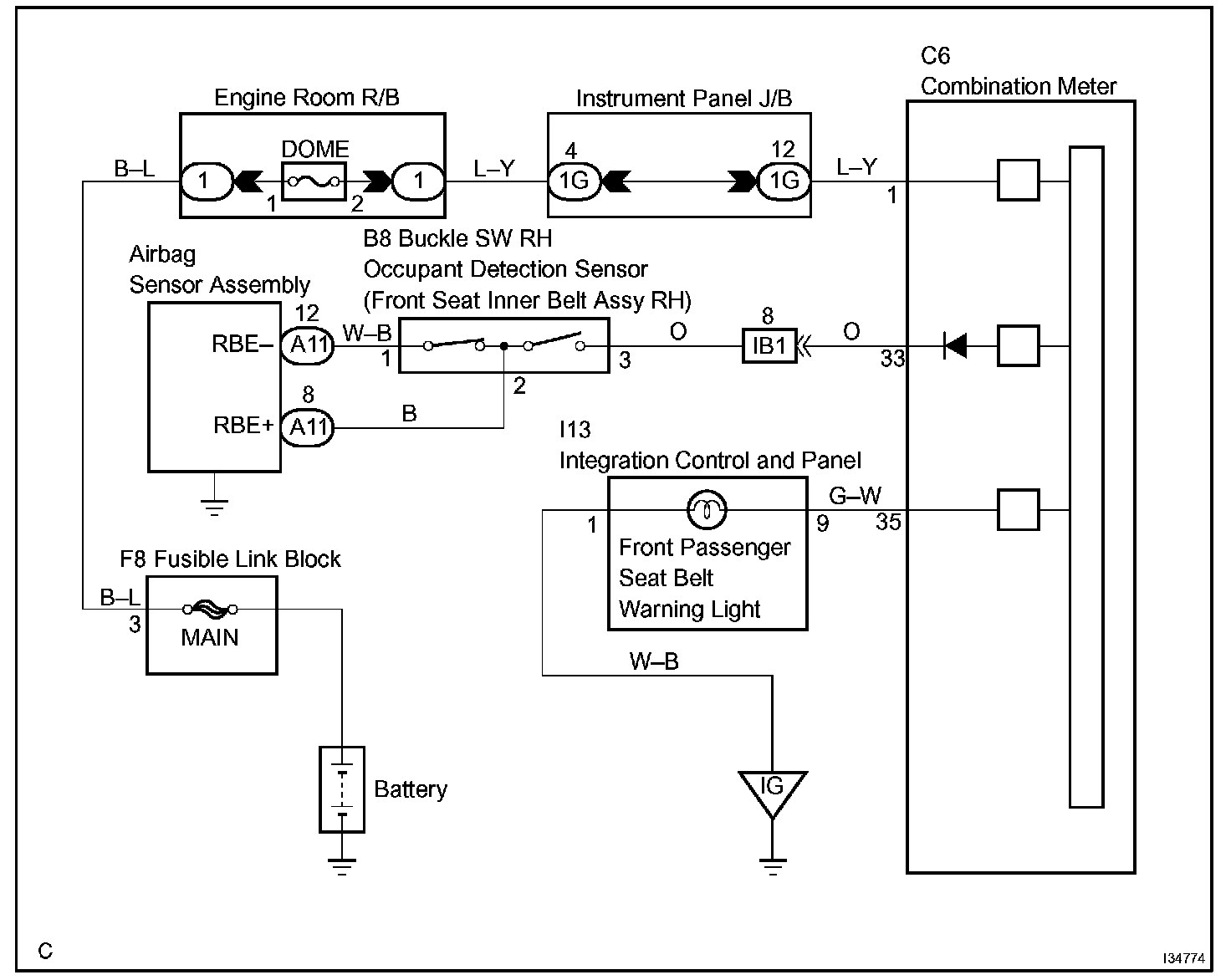

Wiring Diagram:

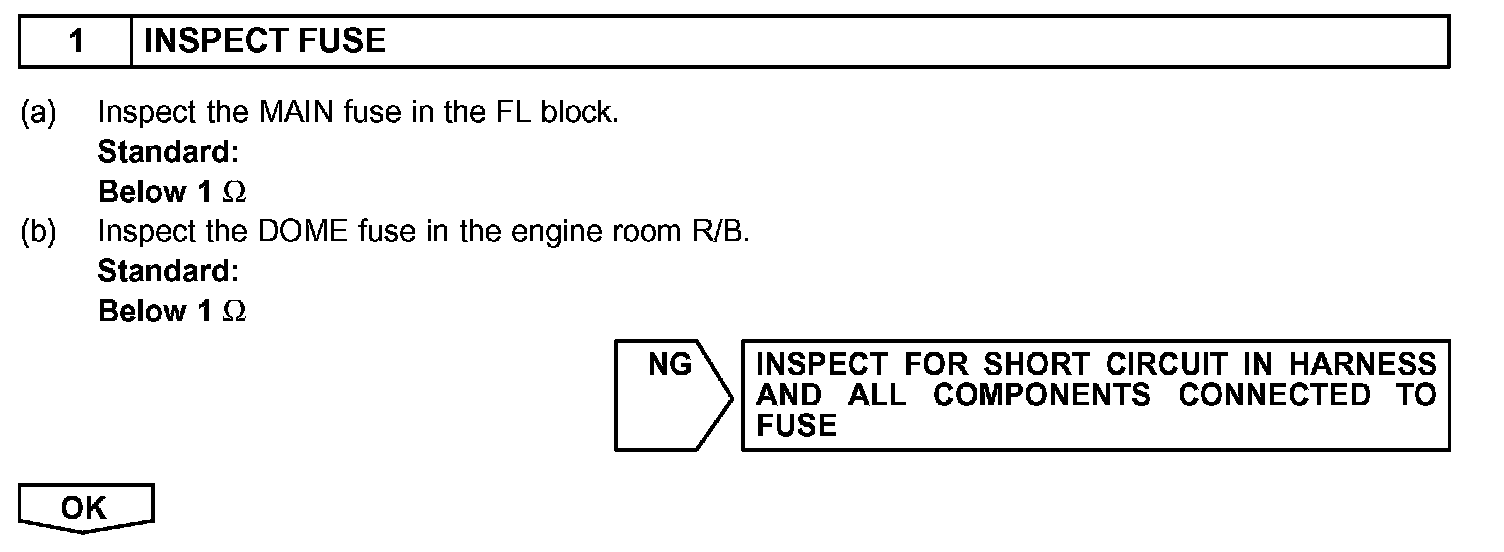

Step 1:

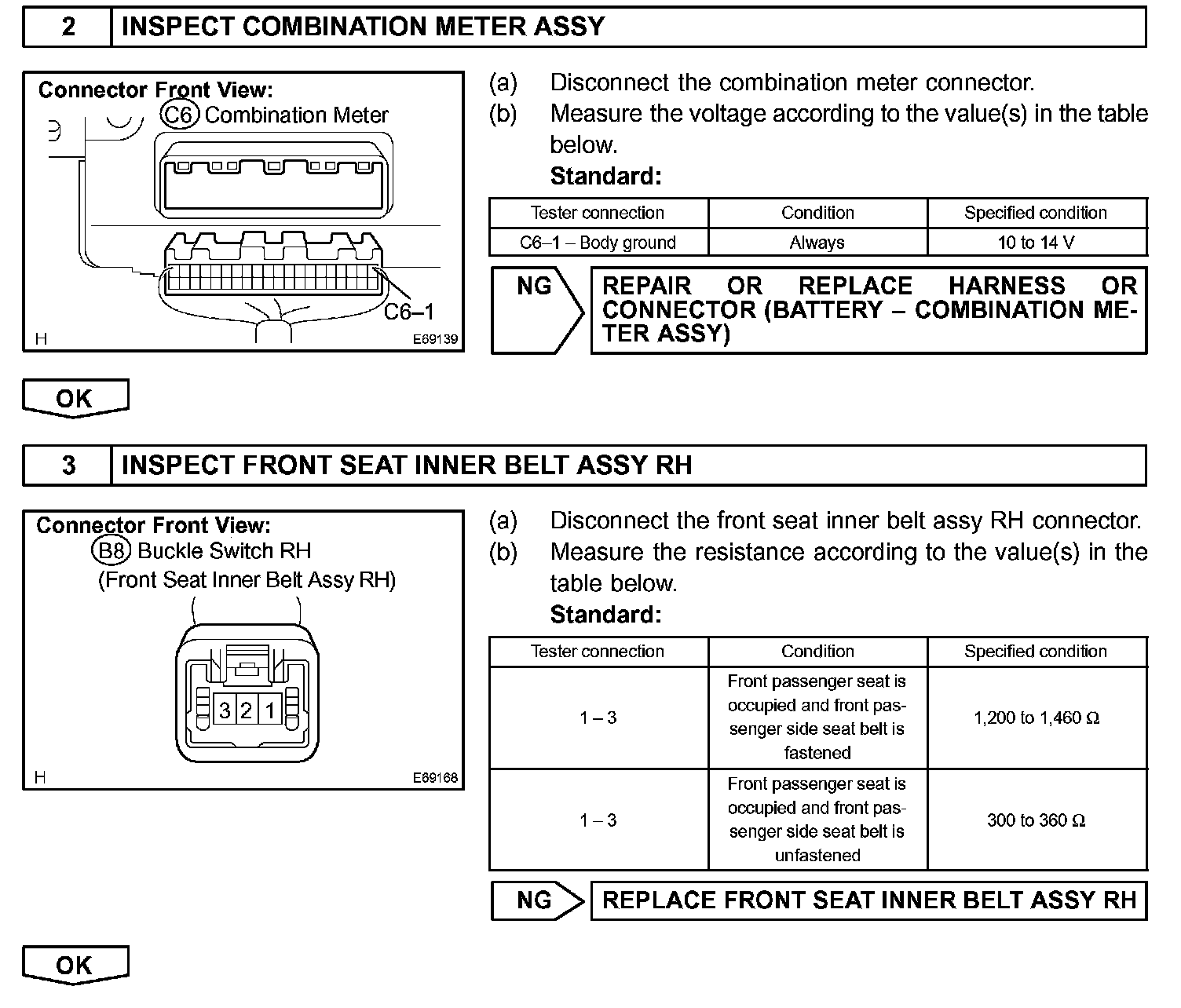

Step 2 - 3:

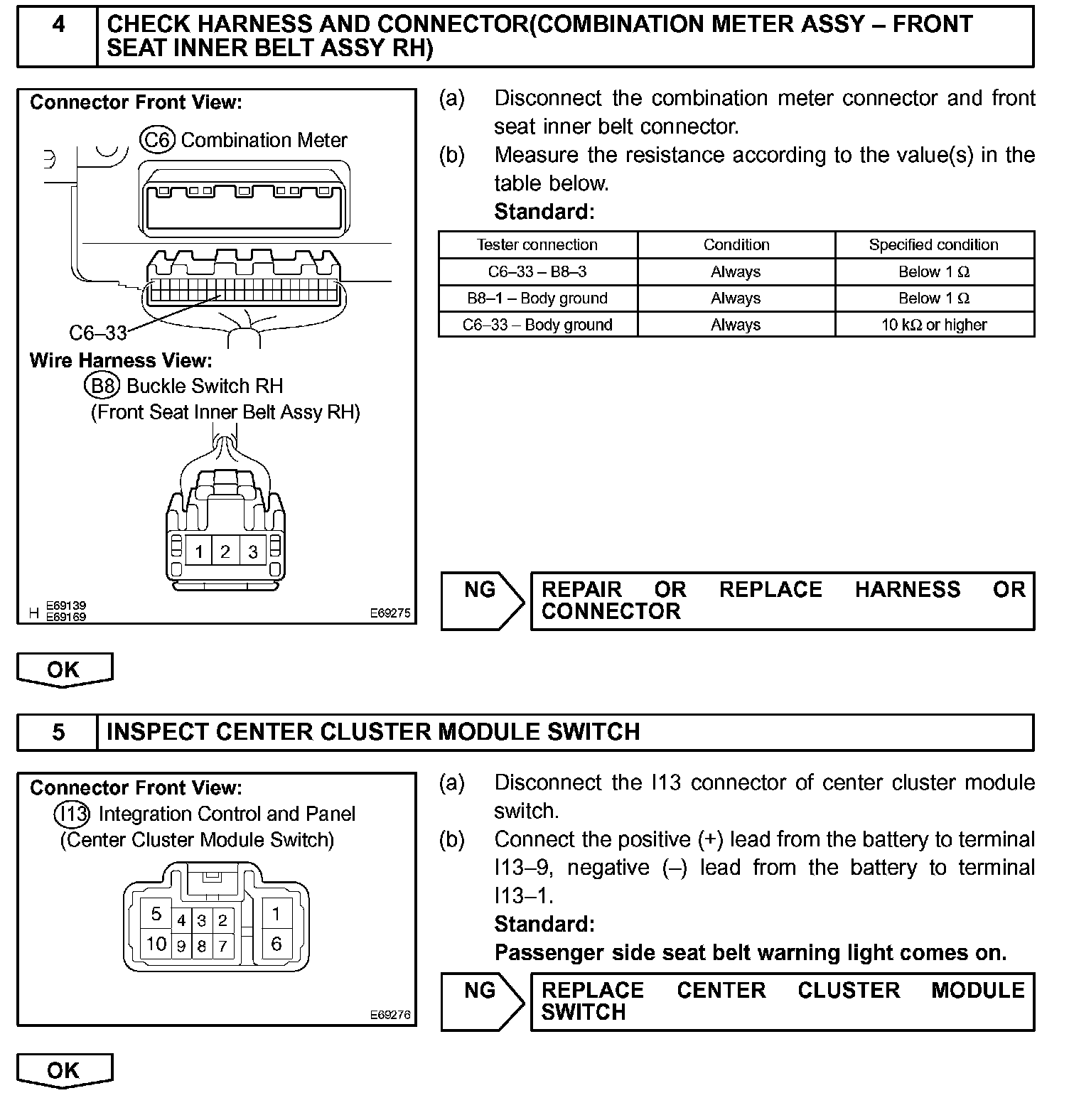

Step 4 - 5:

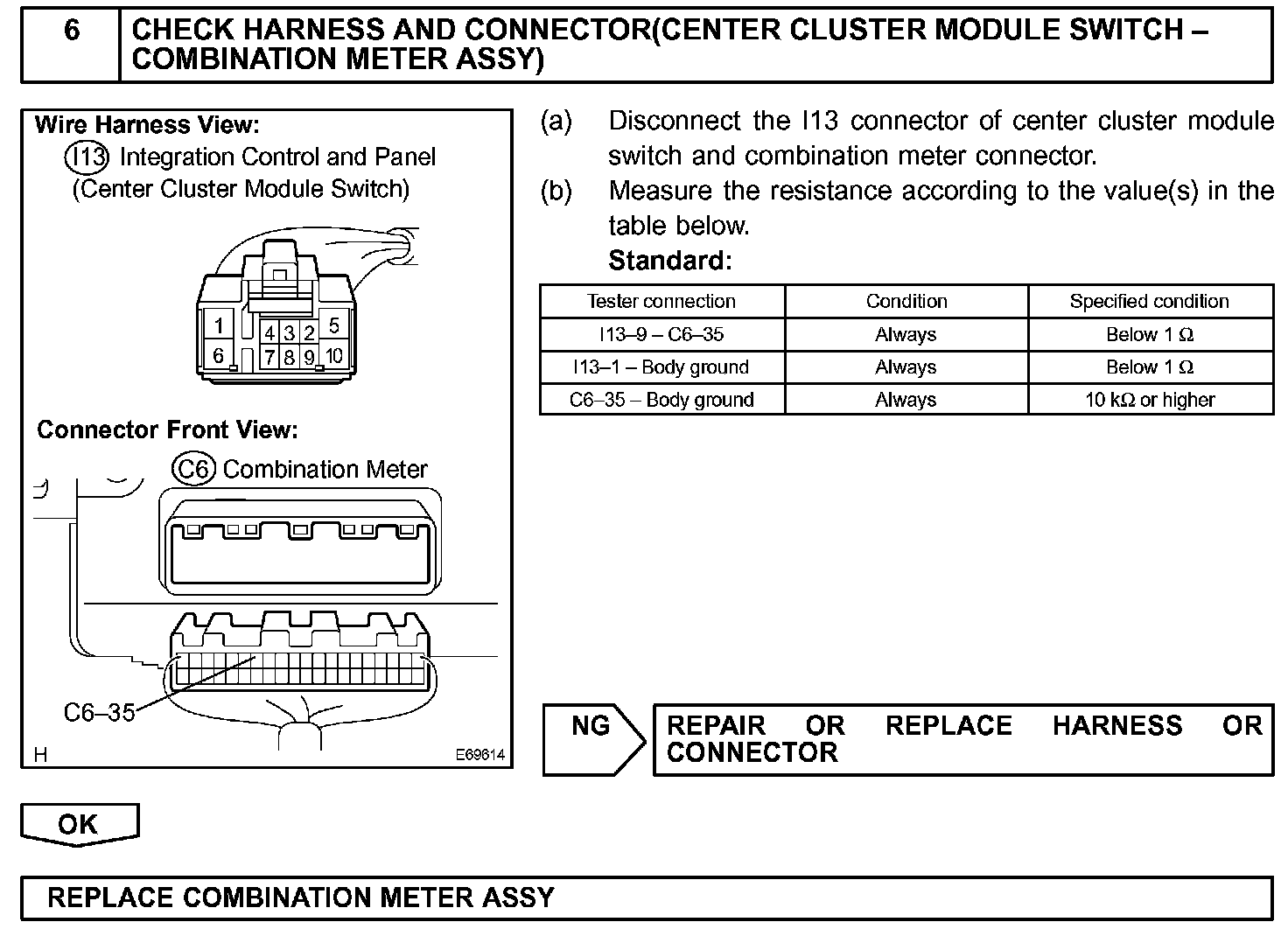

Step 6:




INSPECTION PROCEDURE
