Seat Belt Warning Lamp For Driver Seat Does Not Operate

SEAT BELT WARNING LAMP FOR DRIVER'S SEAT DOES NOT OPERATE

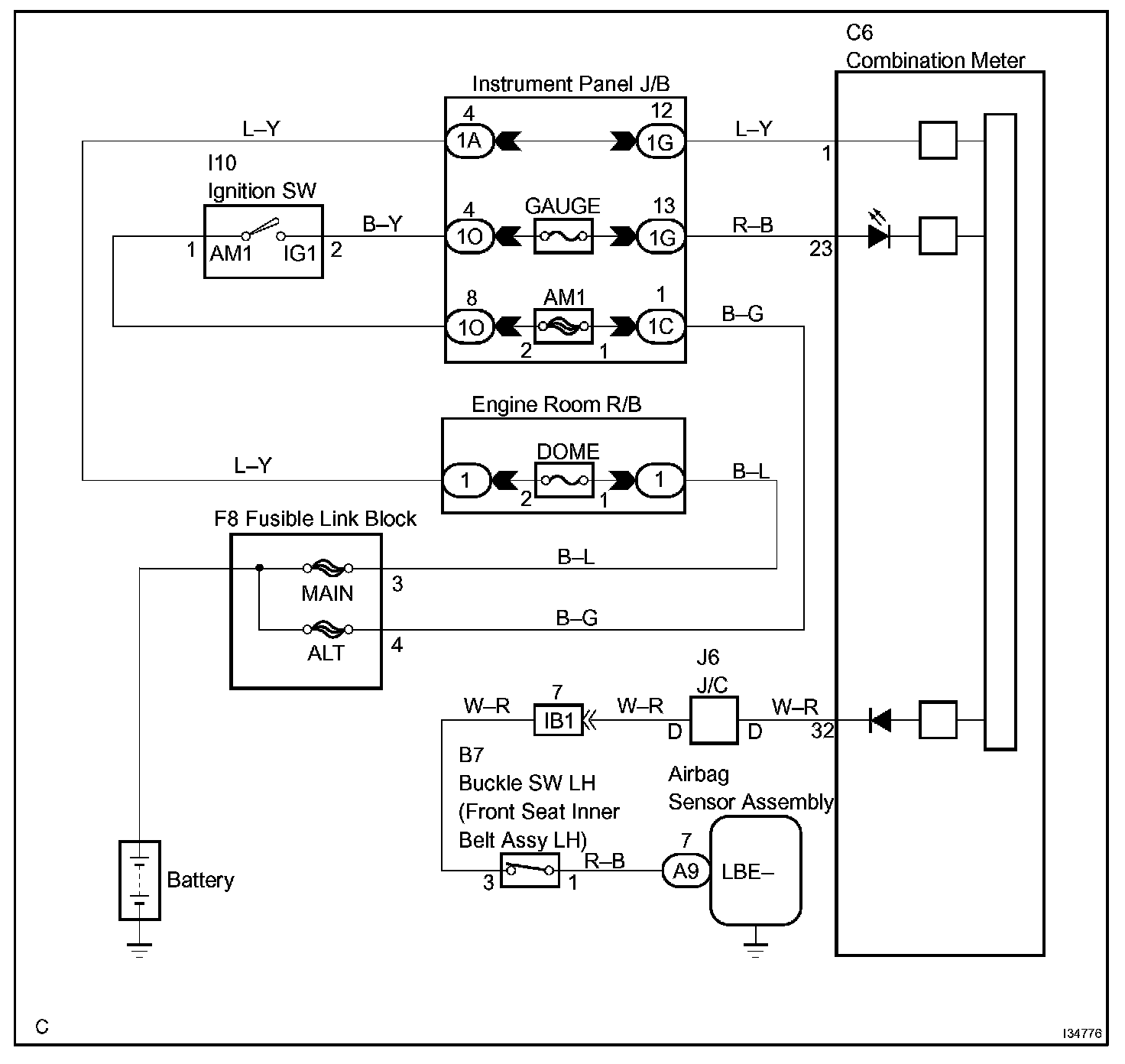

Wiring Diagram:

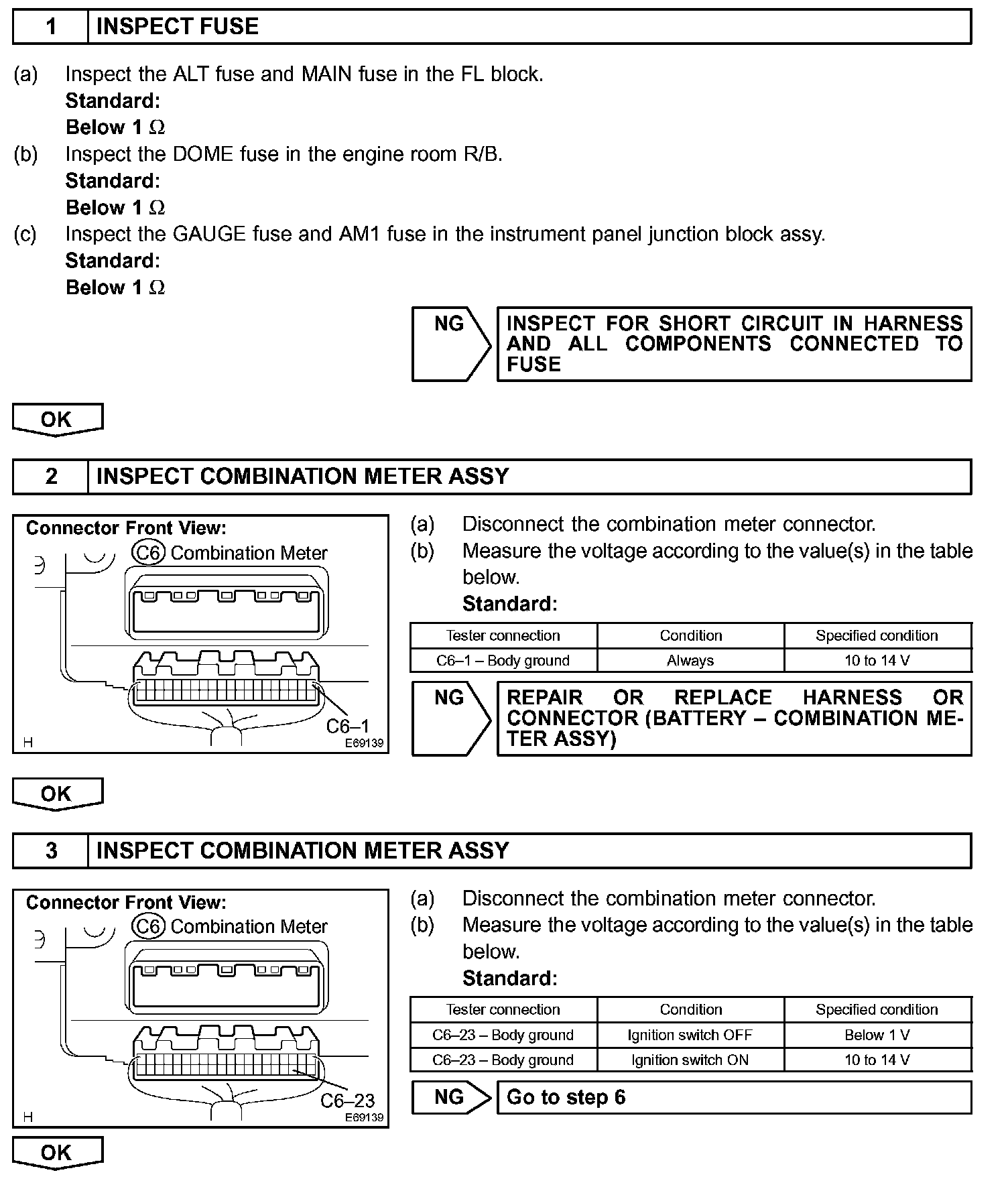

Step 1 - 3:

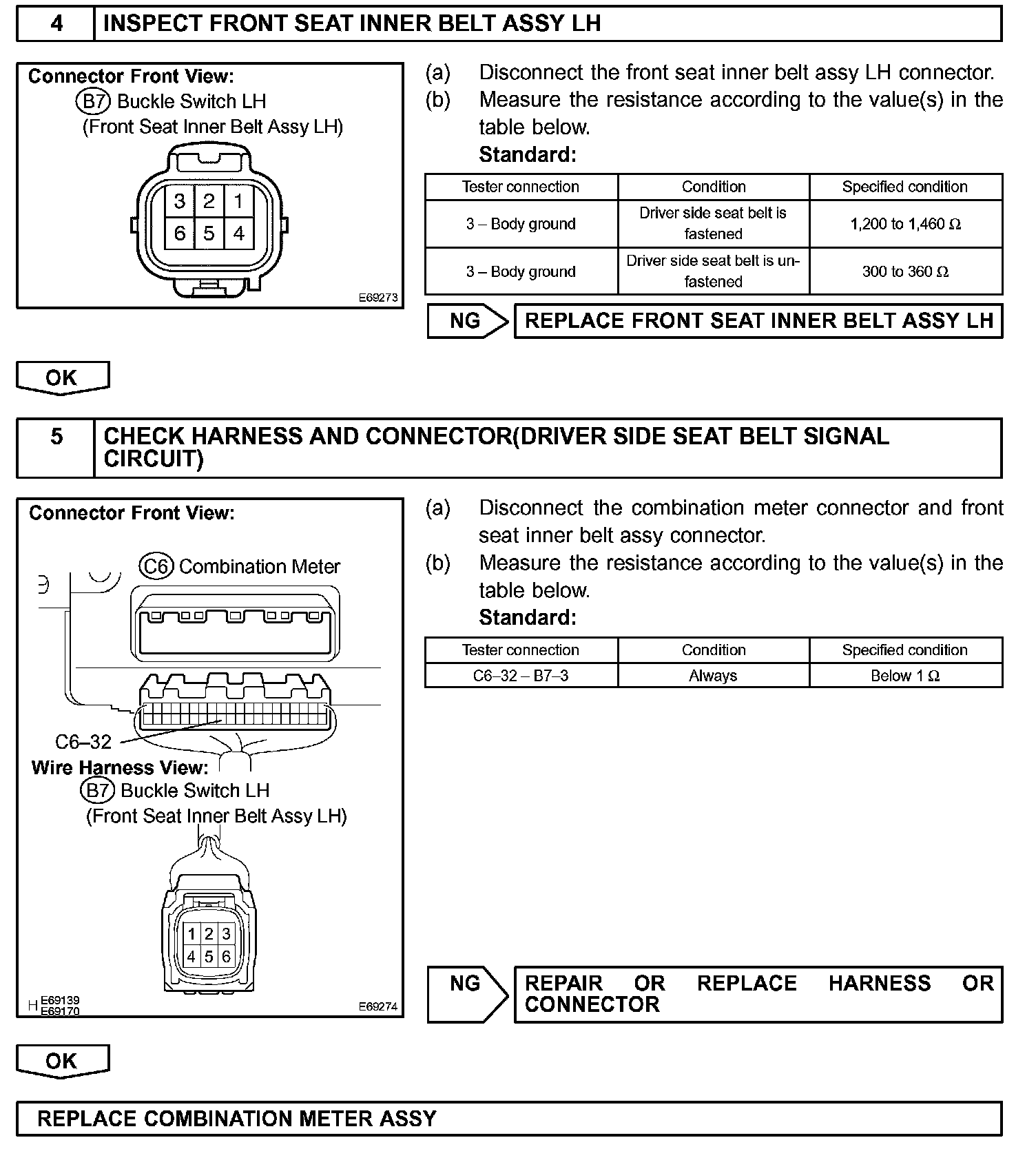

Step 4 - 5:

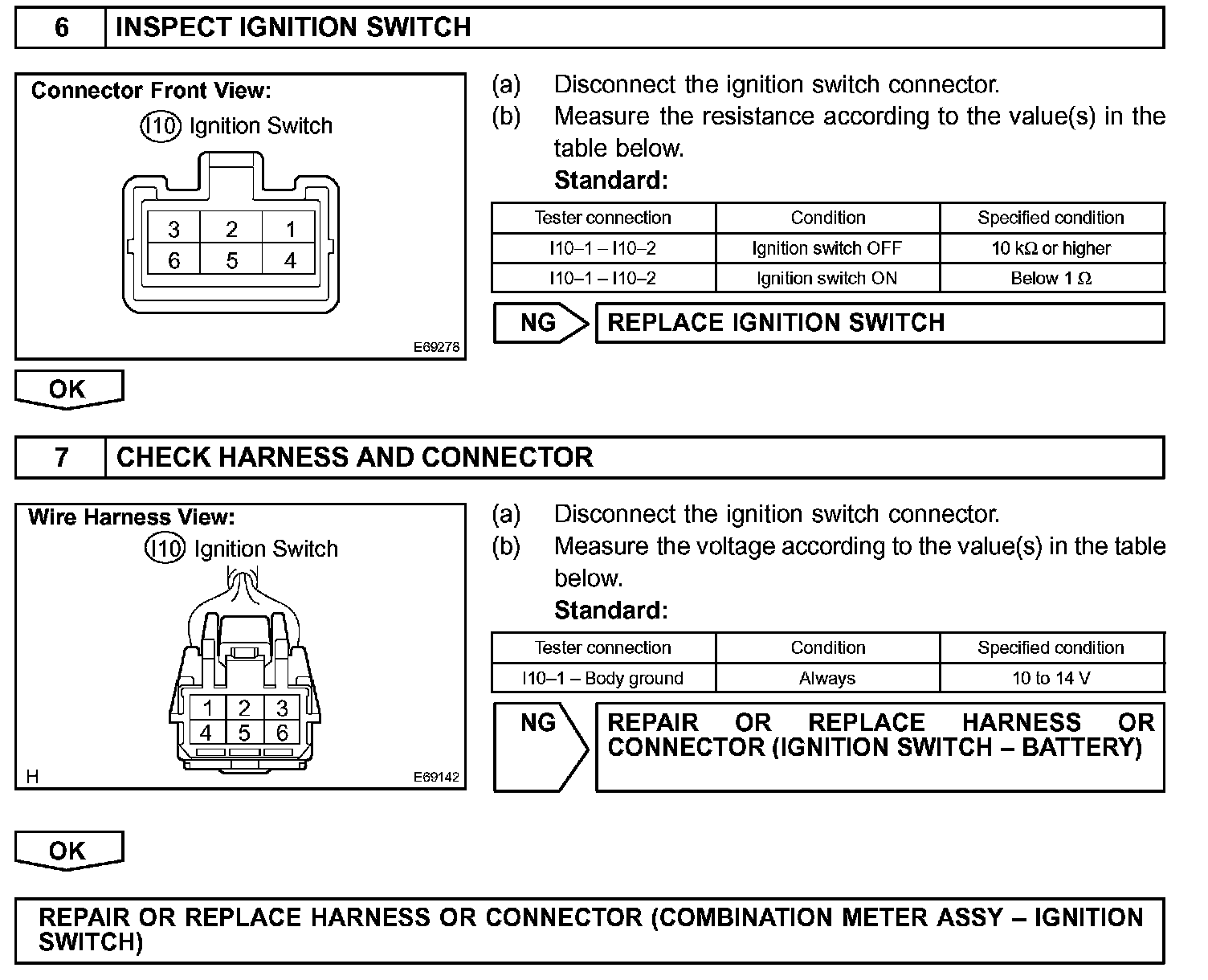

Step 6 - 7:




INSPECTION PROCEDURE
