Home >> Scion >> 2005 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

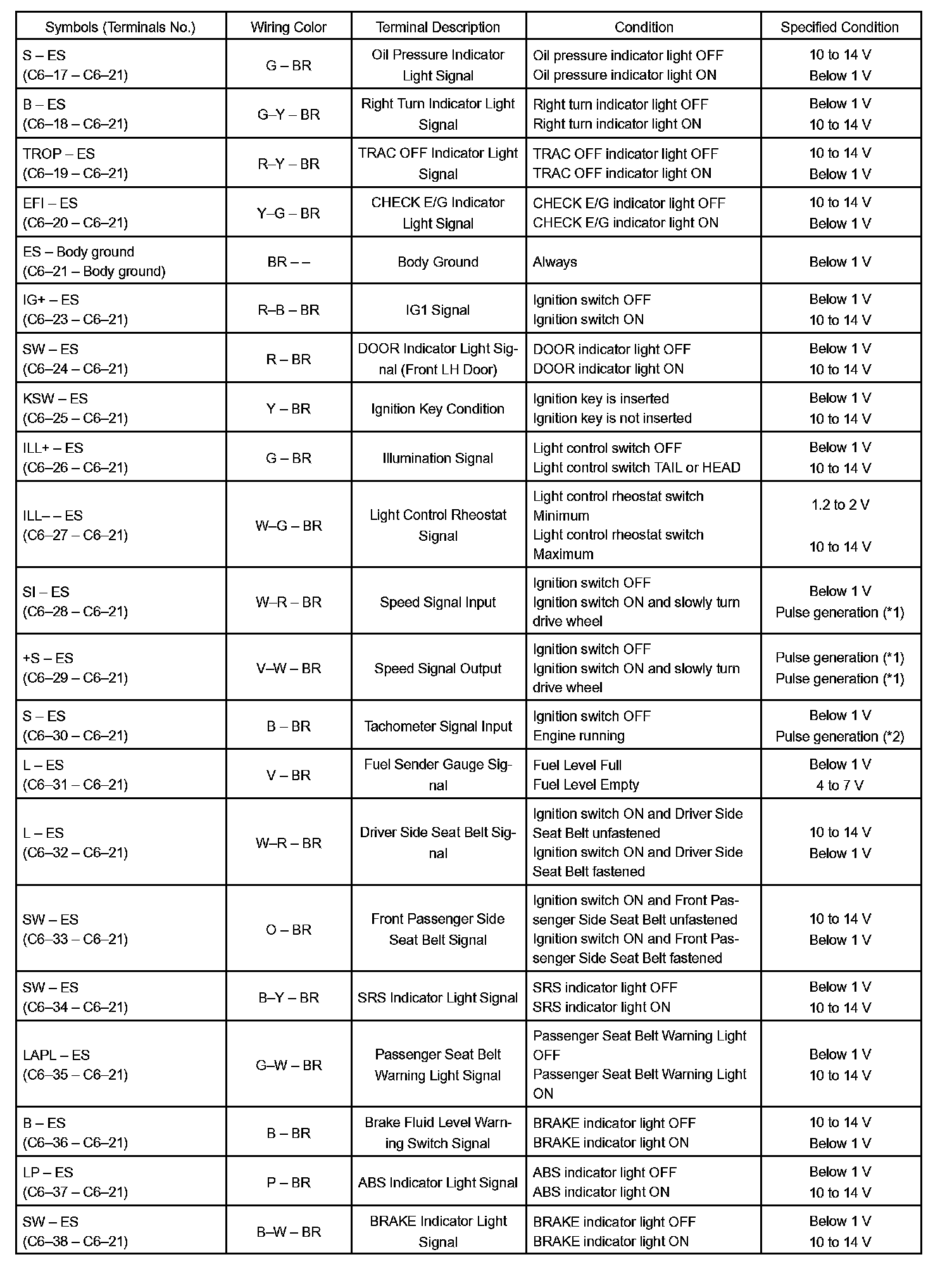

Terminals Of Control Module/Pinouts Part 1:

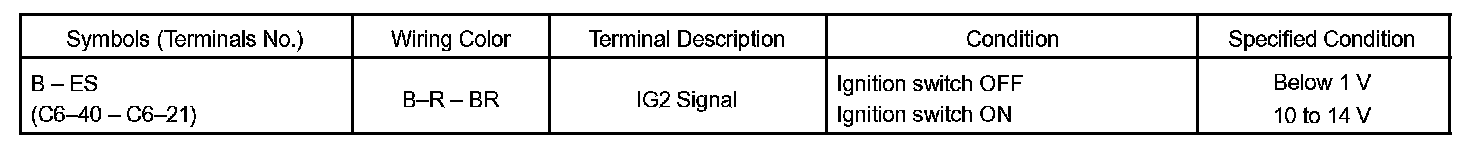

Terminals Of Control Module/Pinouts Part 2:



Terminals Of Control Module/Pinouts Part 3:

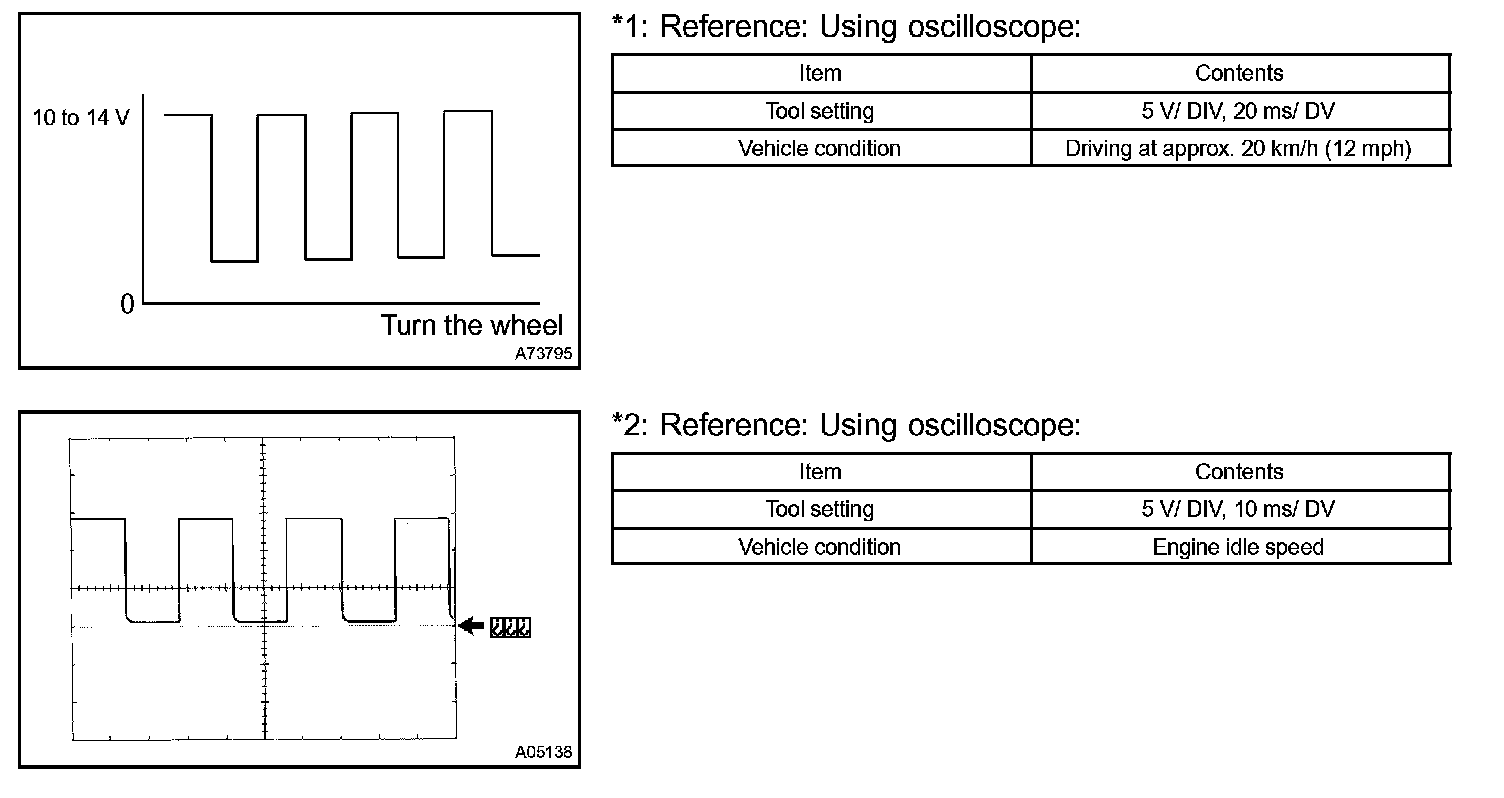

Oscilloscope Waveforms:
