Malfunction In Speedometer

MALFUNCTION IN SPEEDOMETER

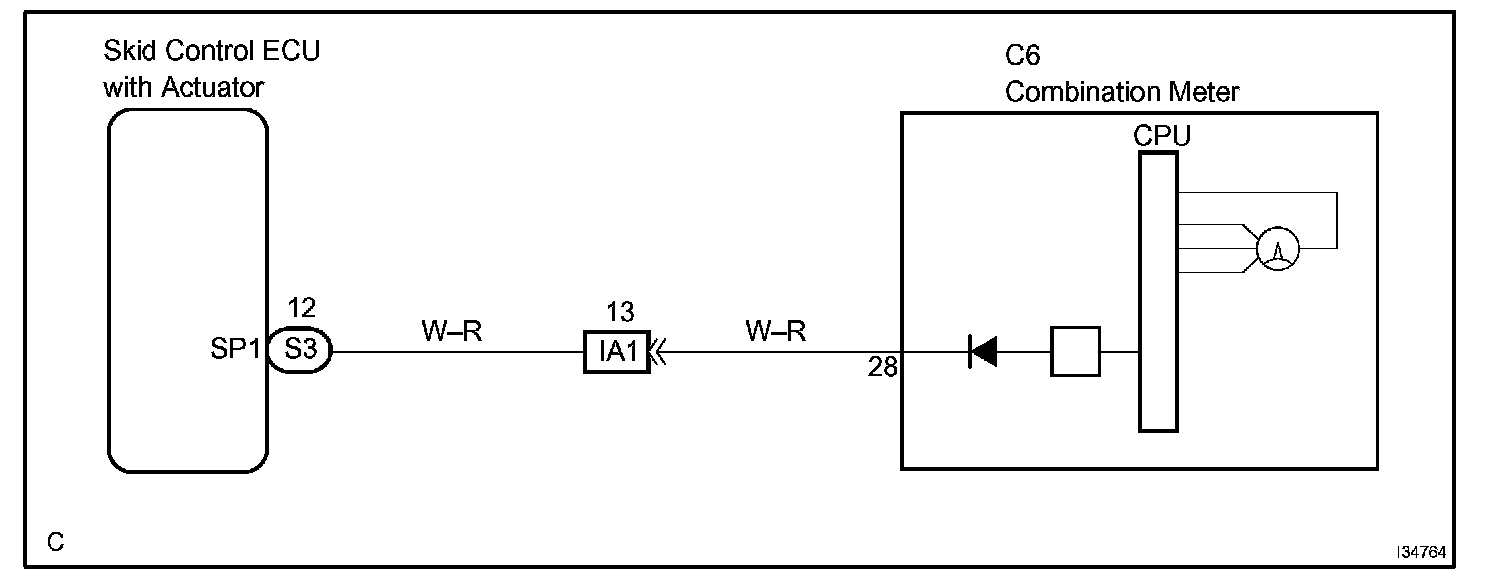

Wiring Diagram:

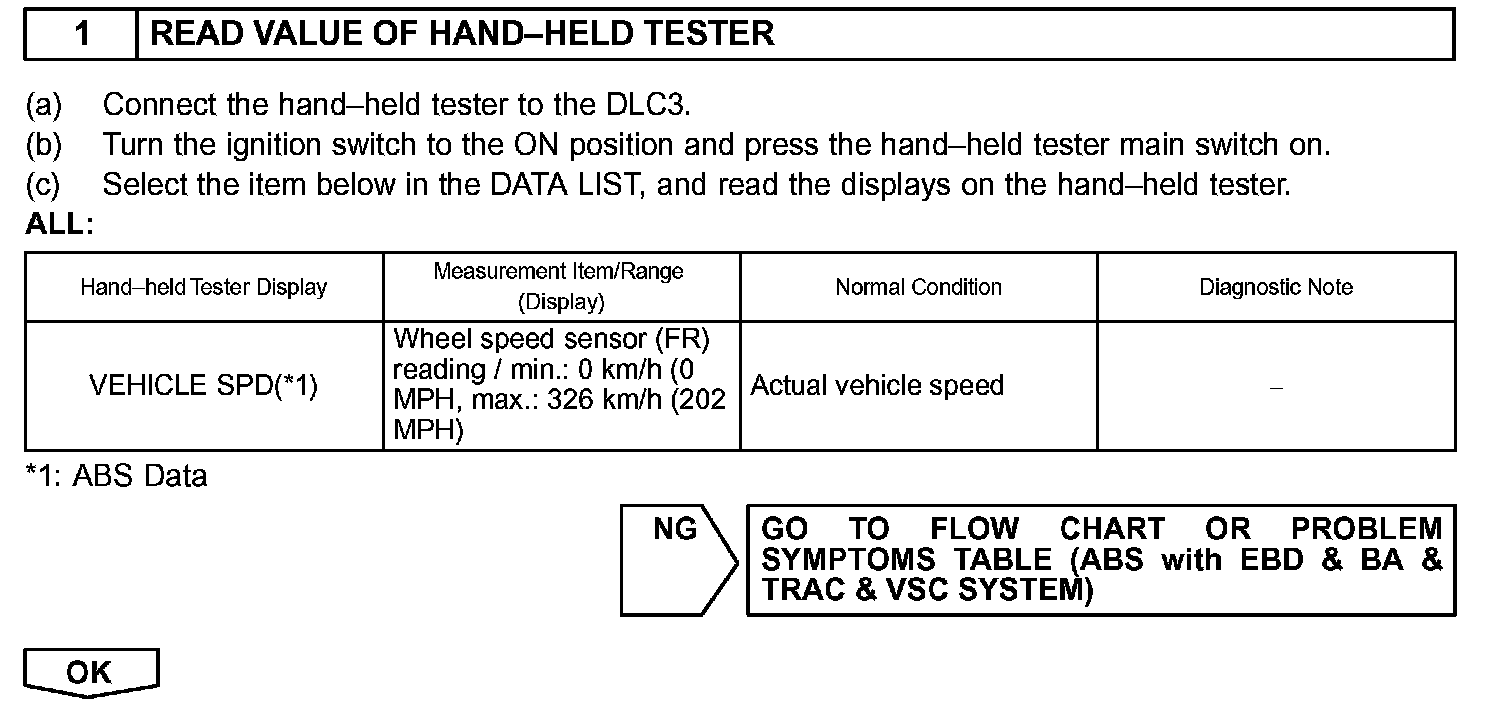

Step 1:

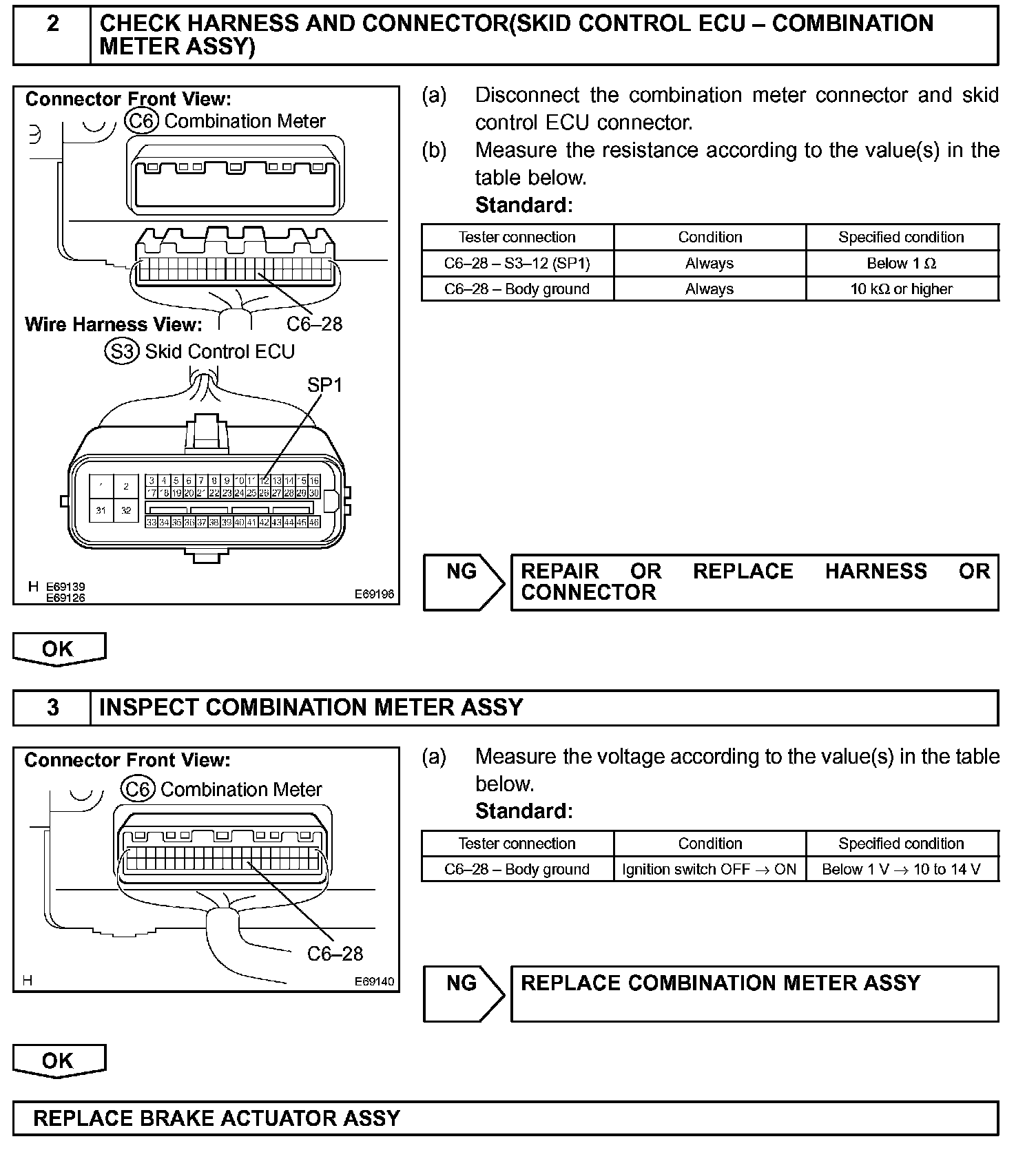

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester, and start from step 2 when not using the hand-held tester.
