Malfunction In Fuel Receiver Gauge

MALFUNCTION IN FUEL RECEIVER GAUGE

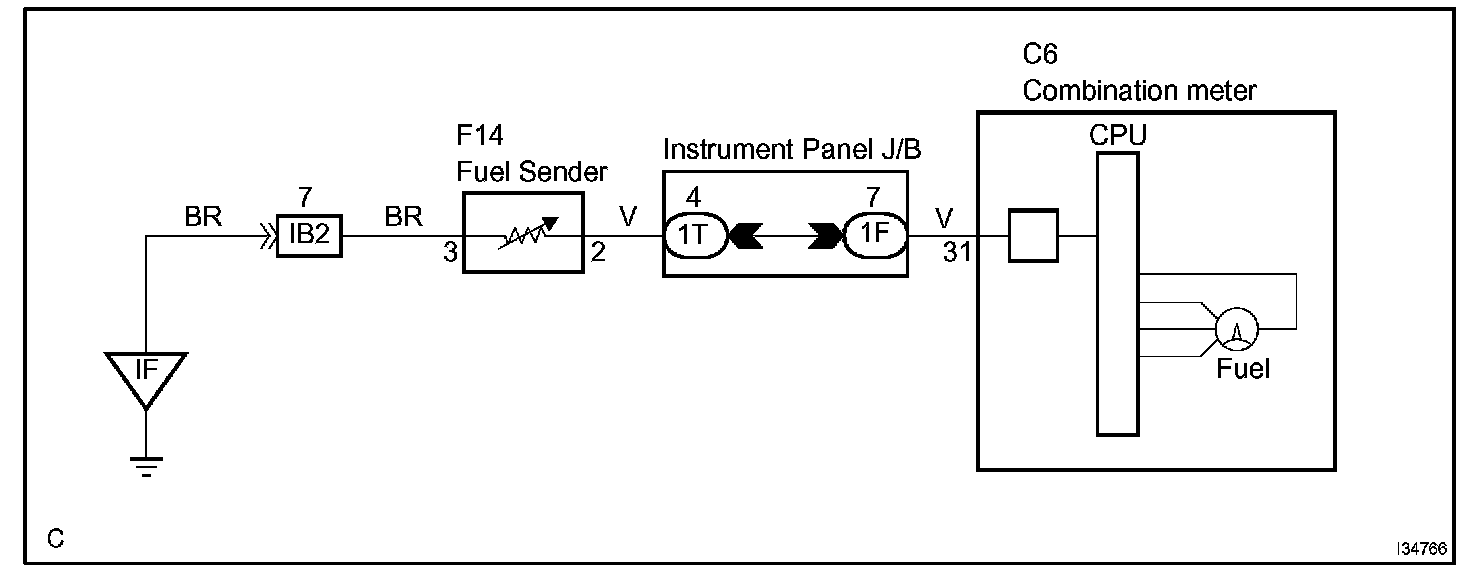

Wiring Diagram:

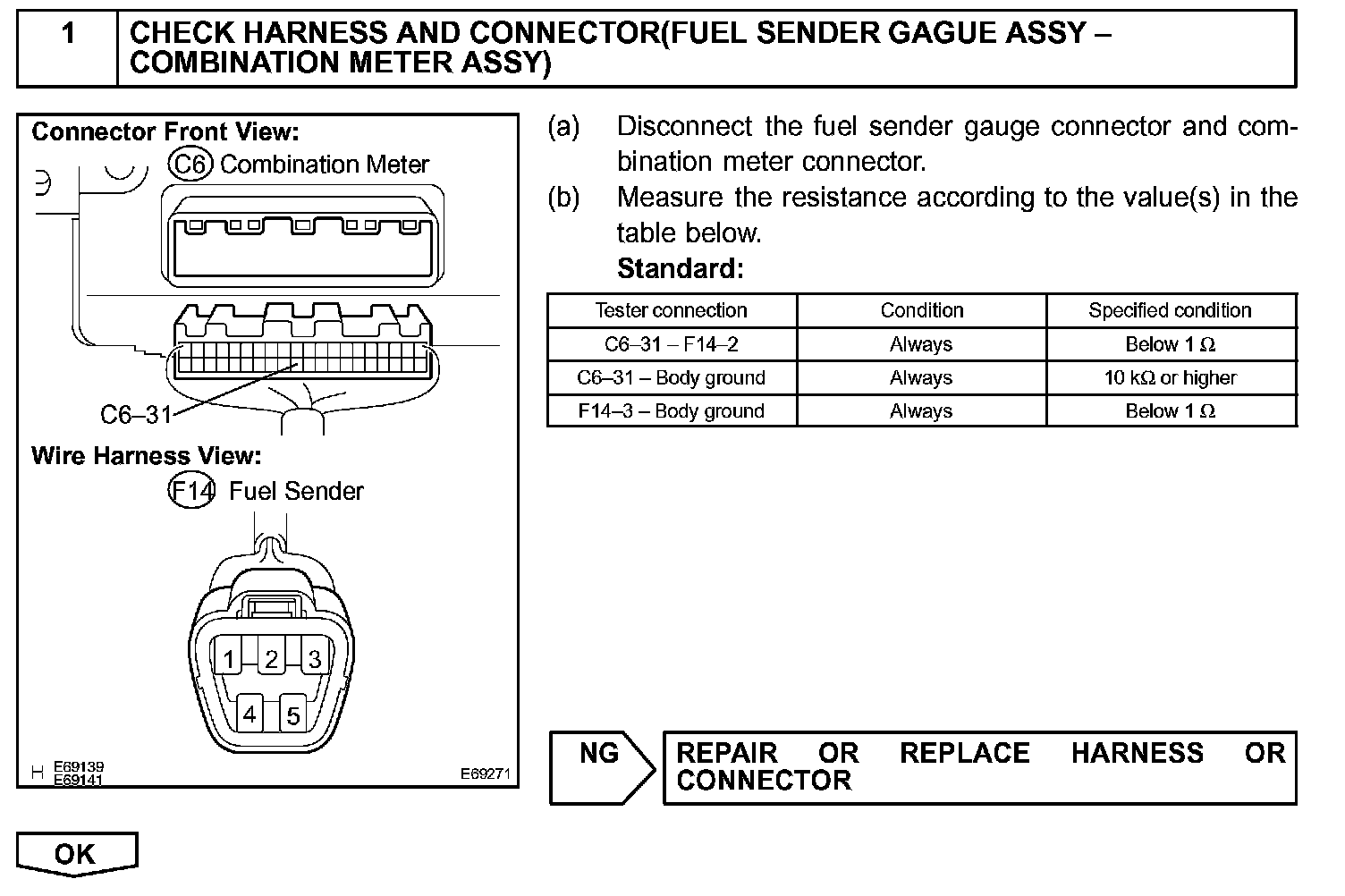

Step 1:

Step 2:

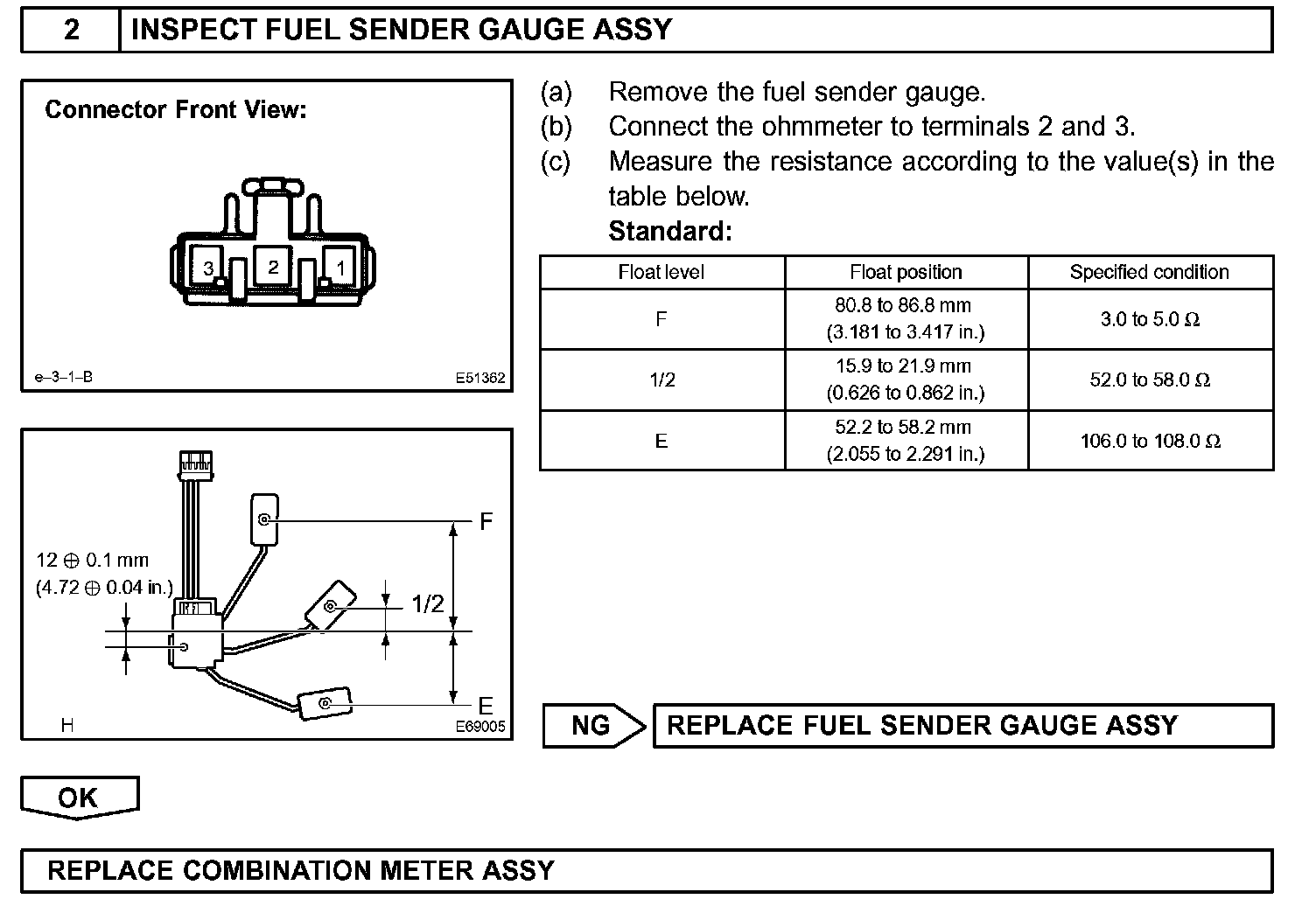

INSPECTION PROCEDURE
