Light Control Rheostat

INSPECTION

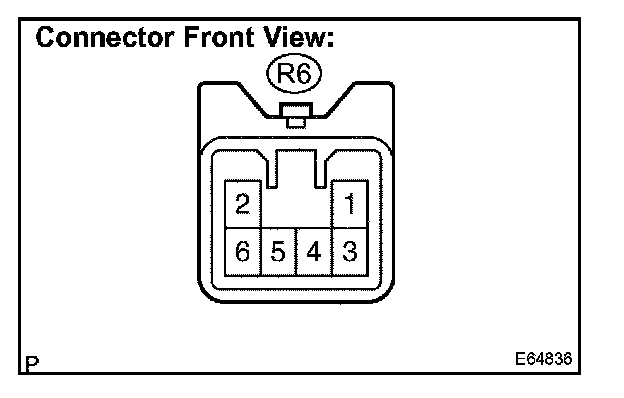

1. LIGHT CONTROL RHEOSTAT

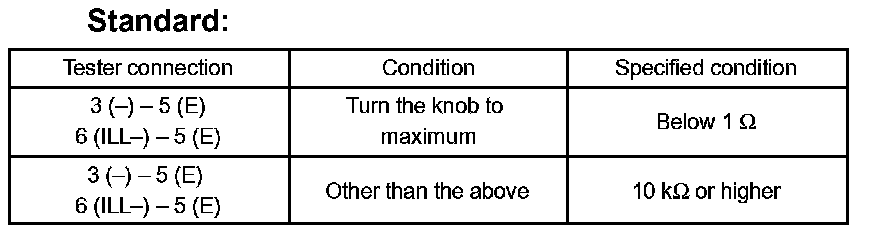

a. Measure the resistance according to the value(s) in the table.
