Center Cluster Module Switch

CENTER CLUSTER MODULE SWITCH







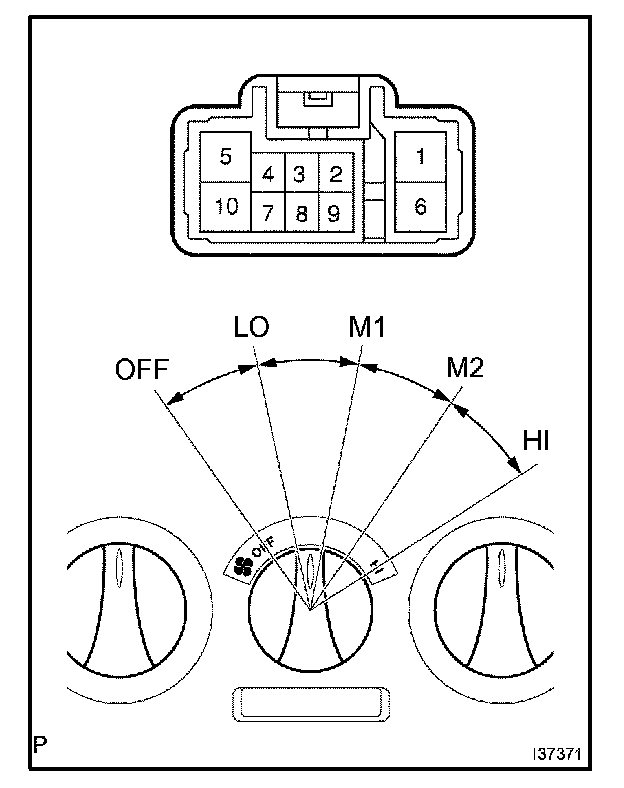

a. Inspect blower switch continuity.

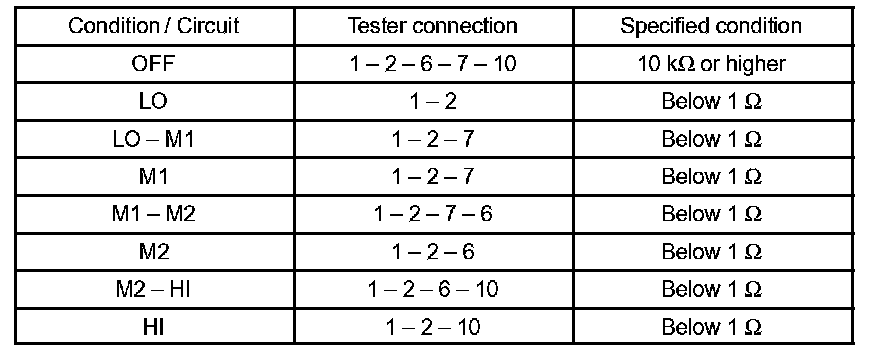

1. Measure the resistance according to the value(s) in the table.
If the value is not as specified, replace the center cluster module switch.

b. Inspect illumination operation.
Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 5, then check that the illuminations come on.
If there is any bulb which does not come on, replace the bulb.







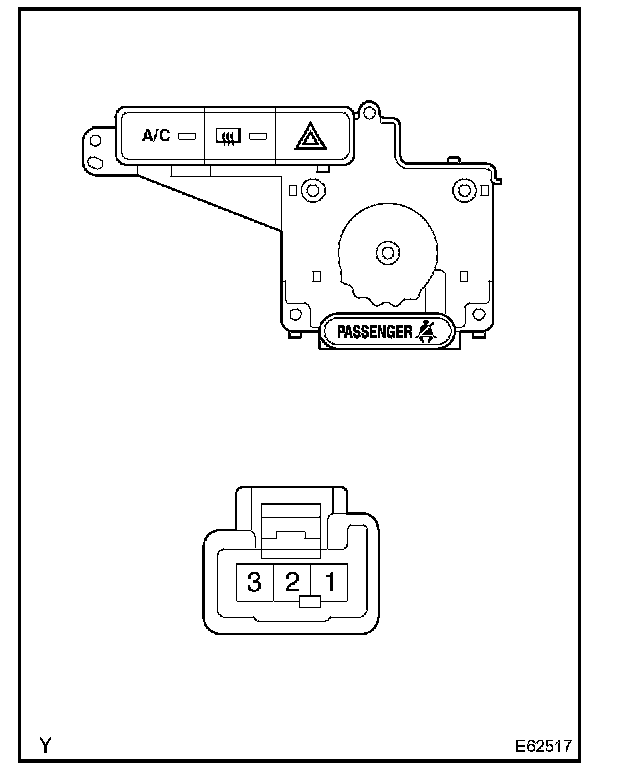

c. Inspect switch continuity.

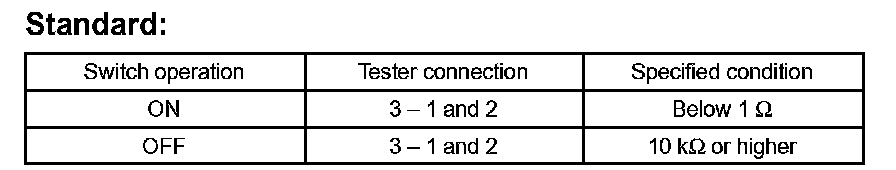

Measure the resistance according to the value(s) in the table.
If continuity is not as specified, replace the cooler switch.

d. Inspect indicator operation.
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1.
2. Push the A/C button in and then check that the indicator comes on.
If operation is not as specified, replace the cooler switch.




CENTER CLUSTER MODULE SWITCH

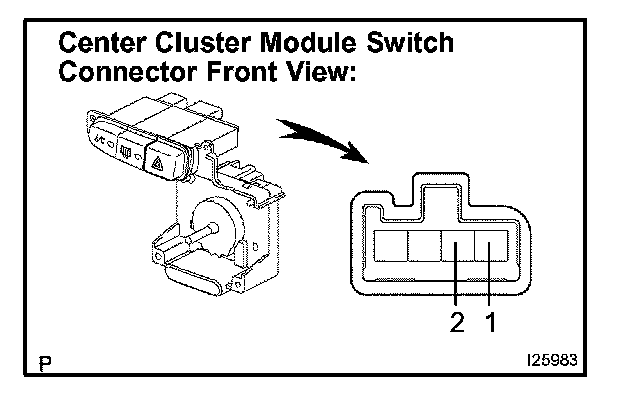

a. Inspect the hazard warning signal switch continuity.

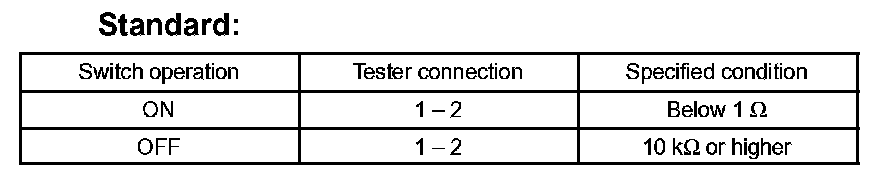

1. Measure the resistance according to the value(s) in the table.
Replace the switch as necessary.
If the value is not as specified, replace the integration control & panel assembly.




INSPECT CENTER CLUSTER MODULE SWITCH
a. Check operation of the defogger timer.
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4.

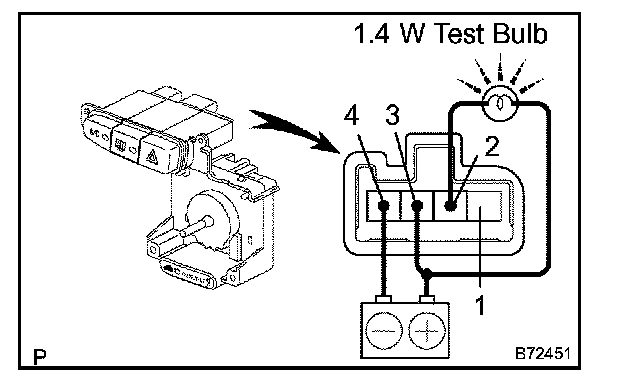

2. Connect the positive (+) lead from the battery to terminal 4 through a 1.4 W test bulb.
3. Push the rear window defogger switch ON, check that the switch and the test bulb illuminates for 12 to 18 minutes, and then they go off.
If the result is not as specified, replace the module switch.
