INSTRUMENT PANEL ASSEMBLY LOWER

REPLACEMENT

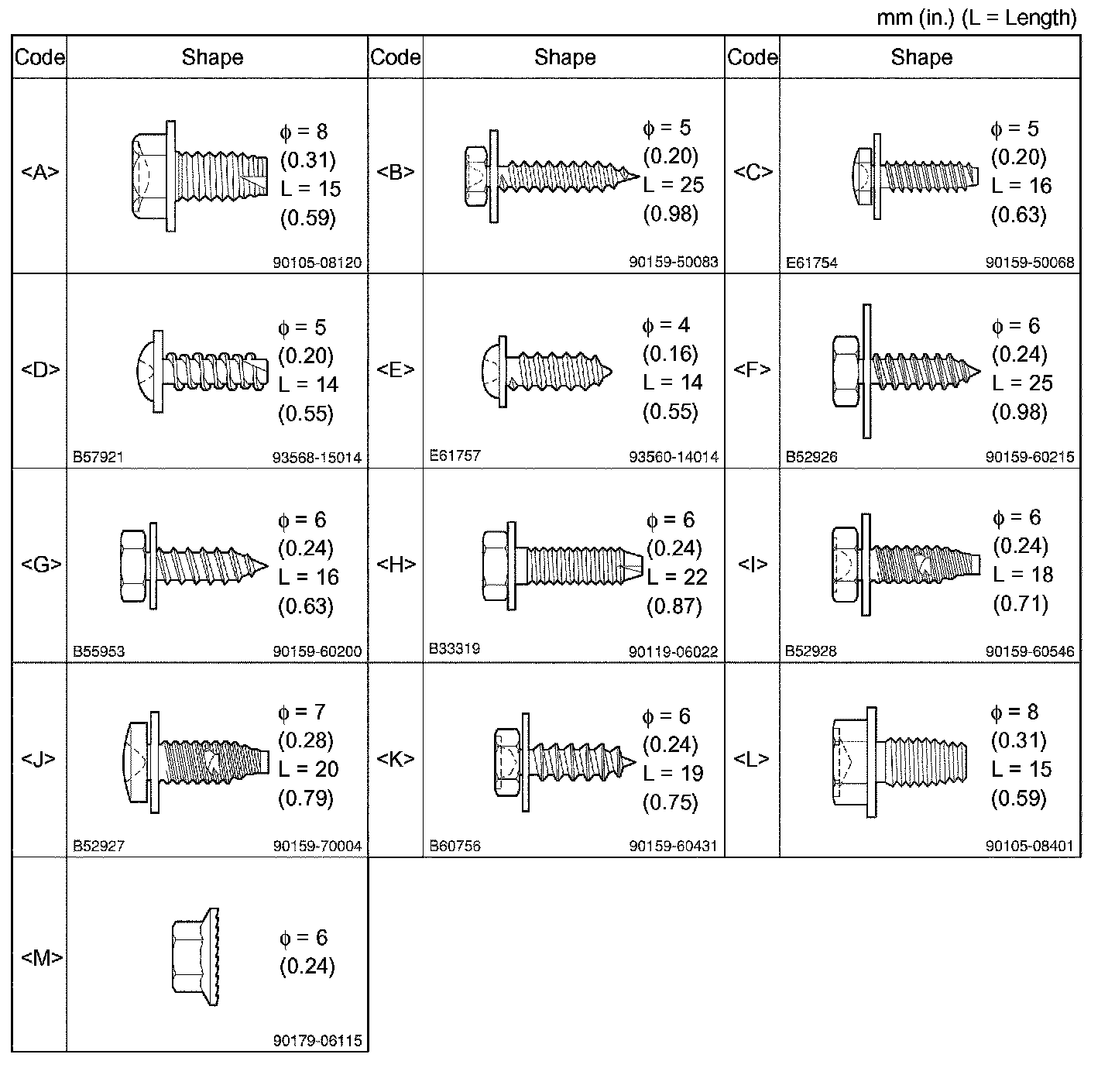

1. TABLE OF BOLT, SCREW AND NUT

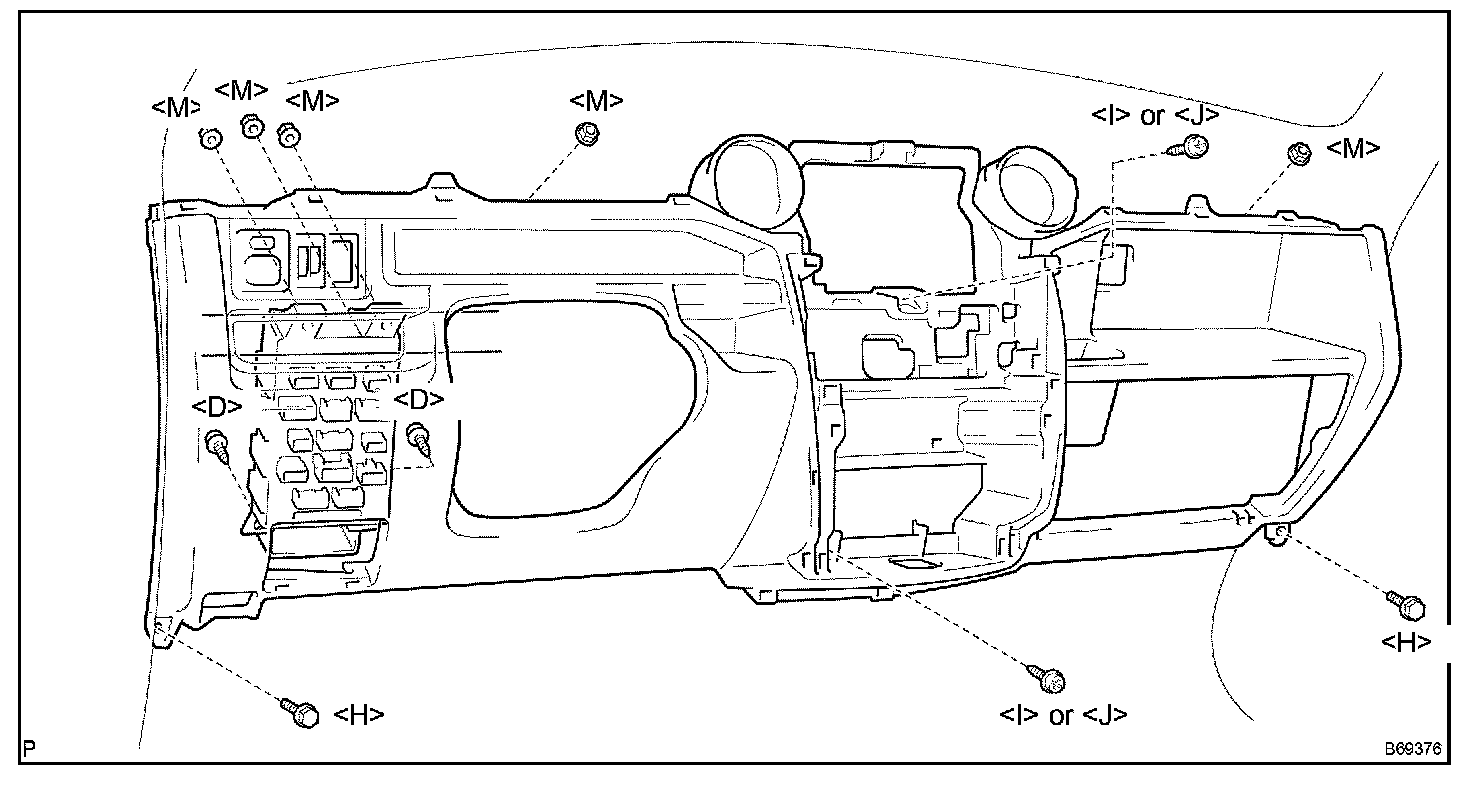

HINT: The bolts, screws and nuts necessary for installation and removal of the instrument panel, are illustrated below and alphabetically coded.

2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY W/PASSENGER AIRBAG ASSEMBLY
4. REMOVE HORN BUTTON ASSEMBLY
5. REMOVE STEERING WHEEL ASSEMBLY
SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

6. REMOVE STEERING COLUMN COVER
7. REMOVE HEADLAMP DIMMER SWITCH ASSEMBLY
8. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
9. REMOVE FRONT DOOR SCUFF PLATE LH
10. REMOVE FRONT DOOR SCUFF PLATE RH
11. REMOVE COWL SIDE TRIM BOARD LH
12. REMOVE COWL SIDE TRIM BOARD RH
13. REMOVE HEATER CONTROL & ACCESSORY ASSEMBLY




14. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER

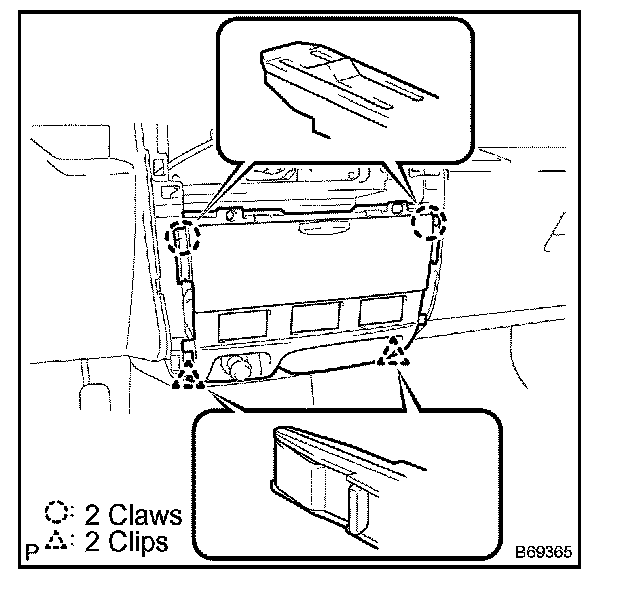

a. Disengage the 2 claws and the 2 clips.
b. Disconnect the connectors, and then remove the instrument cluster finish panel sub-assembly lower center.




15. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
a. Using a clip remover, remove the clip.

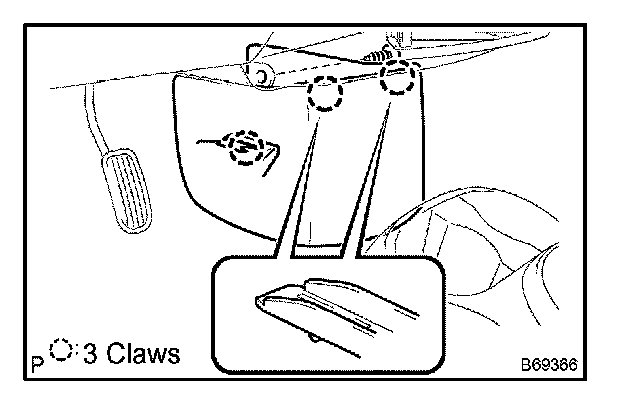

b. Disengage the 3 claws, and remove the instrument panel finish panel lower center.

16. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

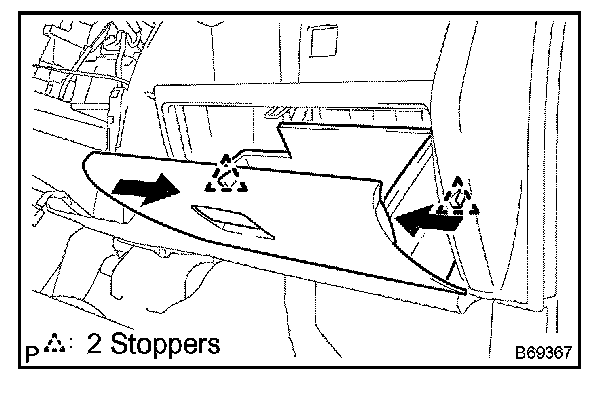

a. Push the right side wall, and then push the left wall to release the stoppers.

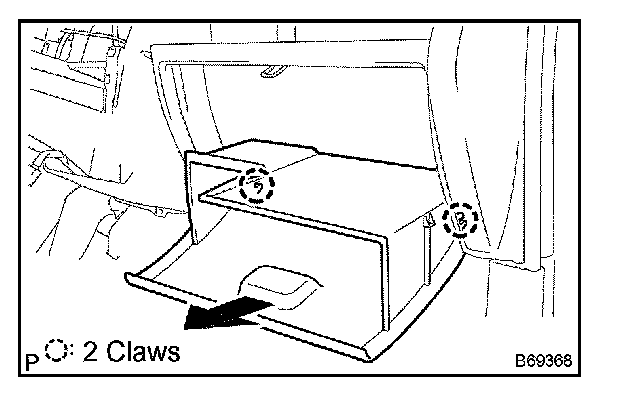

b. Pull the glove compartment door assembly rearward to remove it.

17. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (M/T TRANSAXLE)




18. REMOVE CONSOLE BOX ASSEMBLY REAR
a. Disengage the 4 claws, and remove the console box rear cover.
b. Remove the console box carpet.
c. Remove the screw .

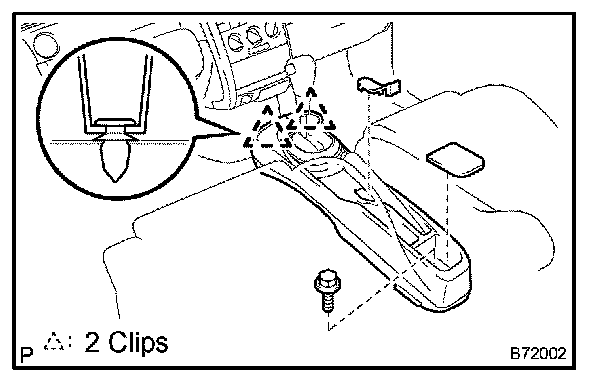

d. Disengage the 2 clips, and remove the console box assembly rear.

19. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY (A/T TRANSAXLE)
20. REMOVE STEERING COLUMN HOLE COVER PLATE
21. DISCONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
22. REMOVE STEERING INTERMEDIATE SHAFT ASSEMBLY
23. REMOVE STEERING COLUMN ASSEMBLY
24. REMOVE ANTENNA CORD SUB-ASSEMBLY

25. REMOVE INSTRUMENT PANEL ASSEMBLY LOWER W/INSTRUMENT PANEL REINFORCEMENT

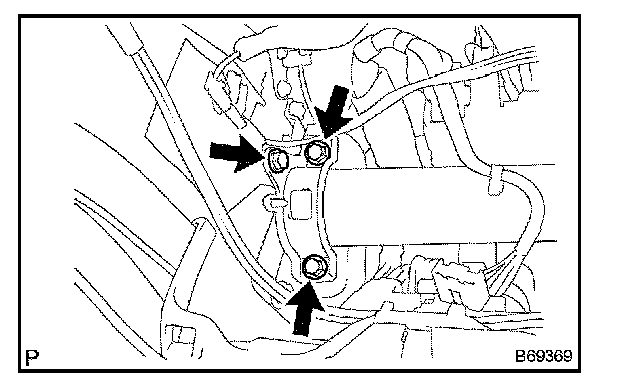

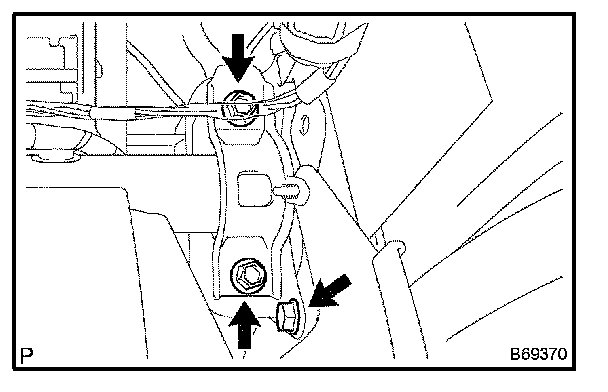

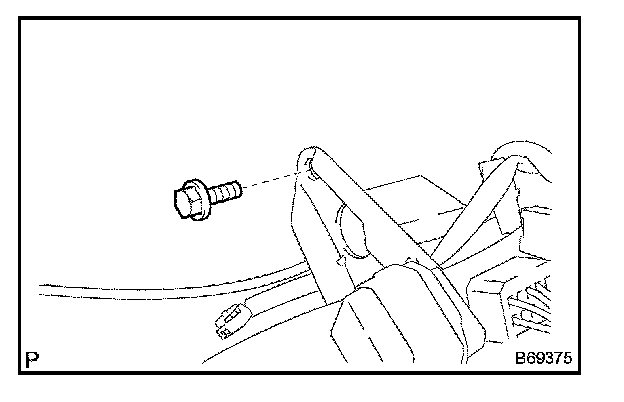

a. Remove the 3 bolts .

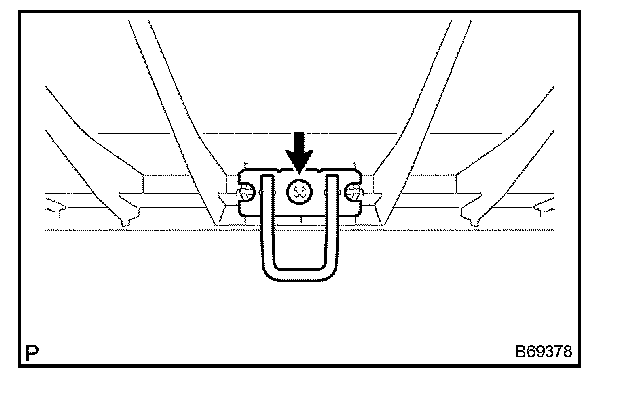

b. Remove the 3 bolts
.




c. Using a clip remover, remove the clip.

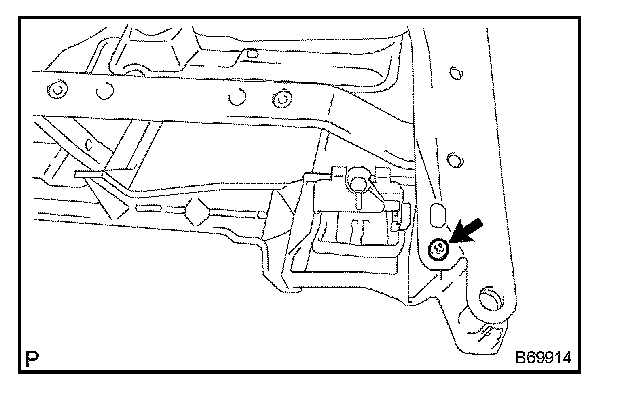

d. Remove the bolt
and 2 bolts .

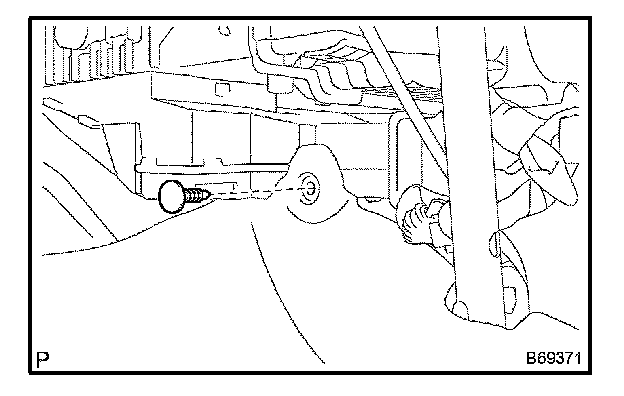

e. Remove the bolt and the instrument panel mounting bracket No.1.

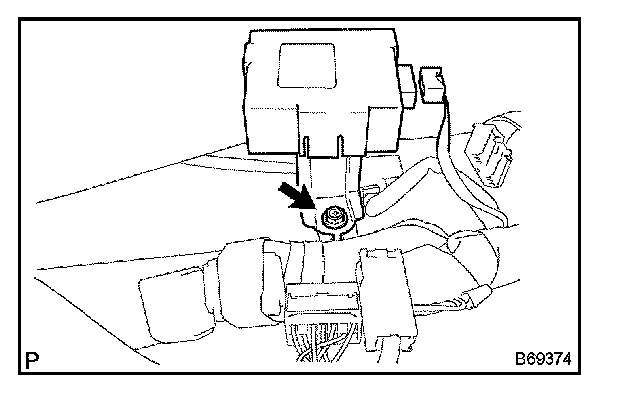

f. Remove the screw .
g. Disconnect the connector, and remove the door control receiver.

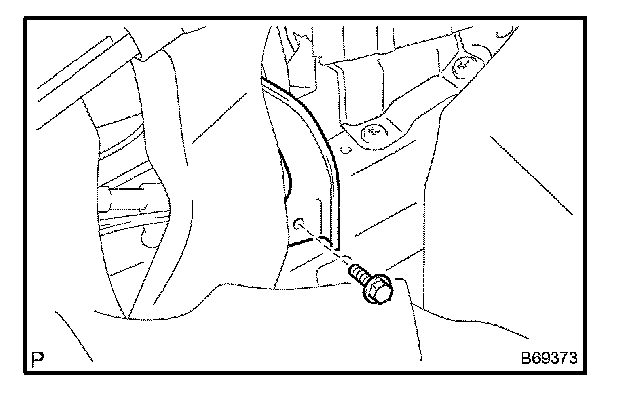

h. Remove the bolt
.
i. Disconnect the hood look control cable.

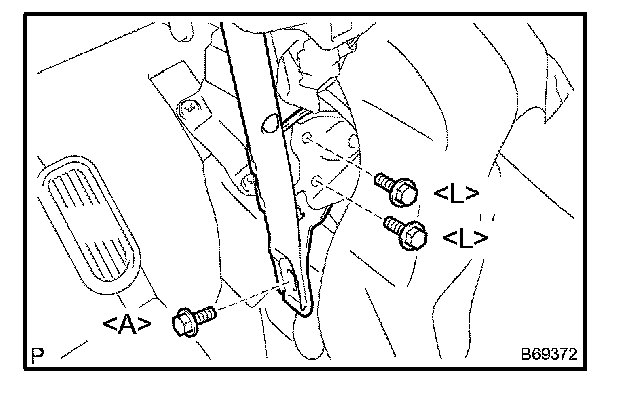

j. Remove the 2 bolts , the 2 nuts and the 2 screws or .
k. Remove the 2 screws and 3 nuts , and separate the instrument panel junction block assembly.




l. Disconnect the connectors, and then remove the instrument panel assembly lower w/ instrument panel reinforcement.

26. REMOVE INSTRUMENT PANEL REINFORCEMENT




a. Using a clip remover, remove the 2 clips.

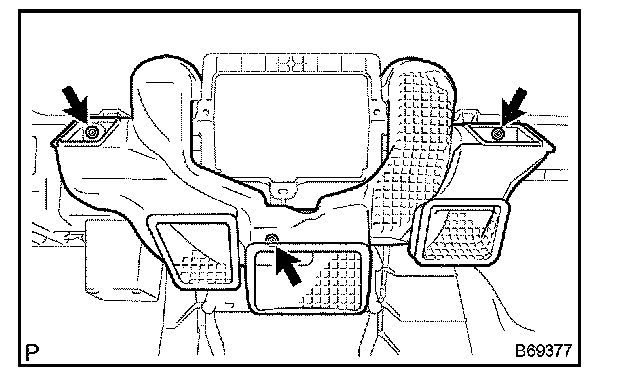

b. Remove the screw .




c. Remove the 3 bolts and the instrument panel LWR pad insert LH.

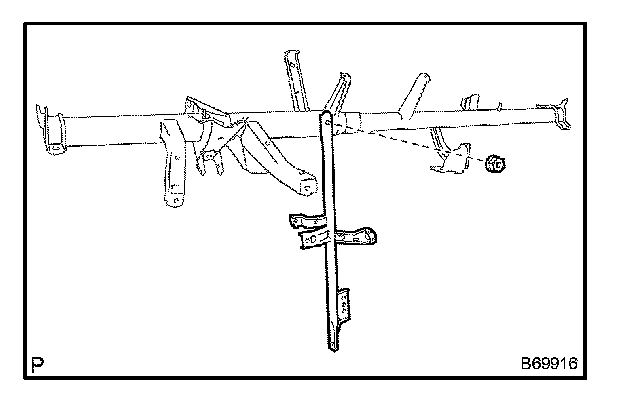

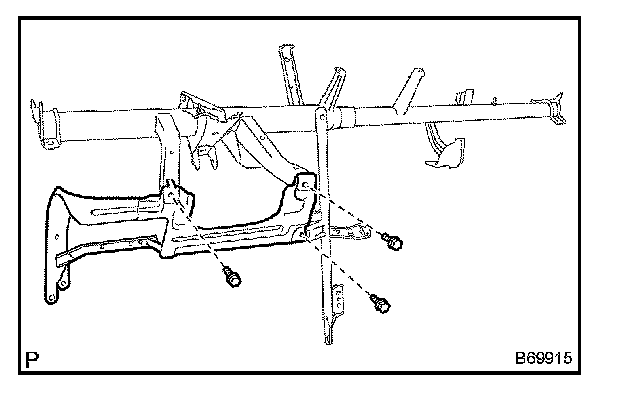

d. Remove the nut and the instrument panel brace sub-assembly No.1.

27. REMOVE FUSE BOX OPENING COVER







28. REMOVE HEATER TO REGISTER DUCT NO.2

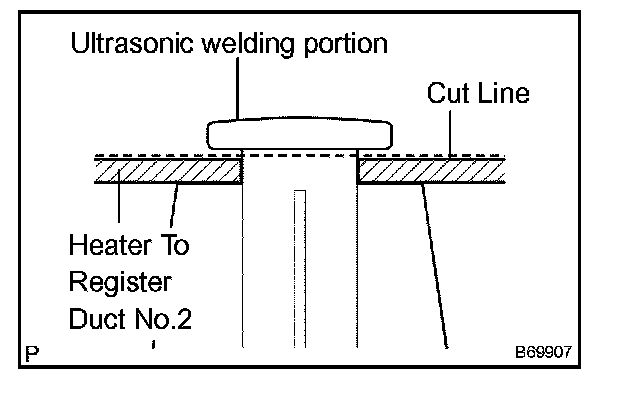

a. Using nippers etc., cut off the ultrasonic welding portion as shown in the illustration to remove the heater to register duct No.2 from the instrument panel sub-assembly.




29. REMOVE INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER
a. Remove the screw and the instrument panel bracket sub-assembly center.

30. REMOVE INSTRUMENT PANEL HOLE COVER
31. REMOVE INSTRUMENT PANEL ASSEMBLY LOWER
32. INSTALL HEATER TO REGISTER DUCT NO.2

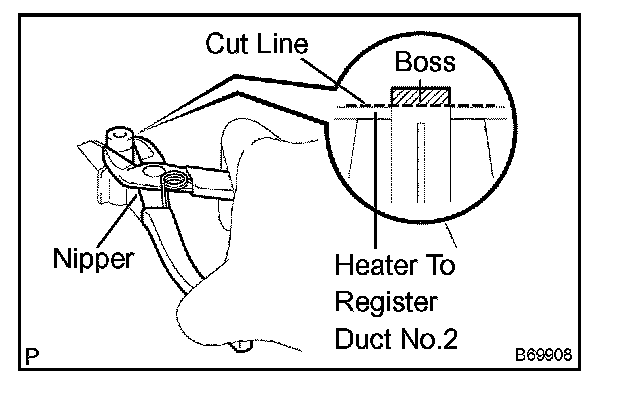

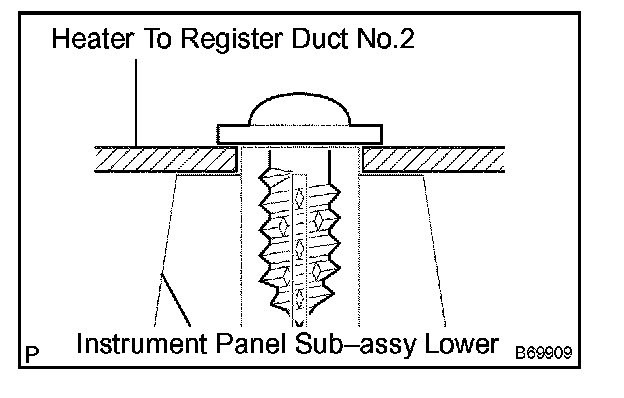

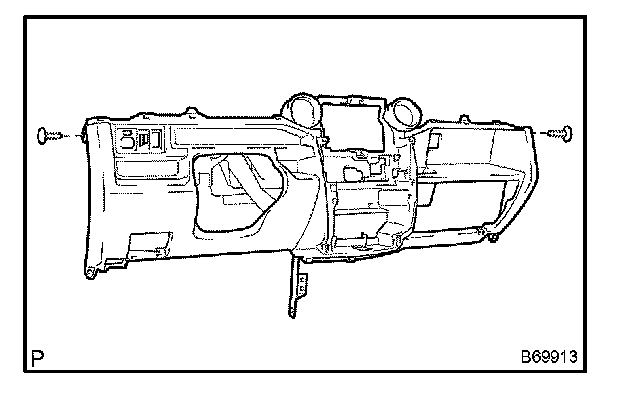

a. When replacing the instrument panel sub-assembly lower with a new one, cut the boss off using nippers, etc. as shown in the illustration.

NOTE: When reusing the instrument panel sub-assembly lower, start from step (b).




b. Using a screw, install the heater to register duct No.2.

33. INSTALL STEERING COLUMN ASSEMBLY
34. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
35. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
36. CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY (A/T TRANSAXLE)
37. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY W/PASSENGER AIRBAG ASSEMBLY
38. ADJUST SPIRAL CABLE SUB-ASSEMBLY
39. INSTALL STEERING WHEEL ASSEMBLY
40. INSTALL HORN BUTTON ASSEMBLY
41. INSPECT HORN BUTTON ASSEMBLY
42. INSPECT SRS WARNING LIGHT
