Combination Meter Assembly

COMBINATION METER ASSEMBLY

OVERHAUL

NOTE: When disassembling combination meter assembly, measures should be taken to prevent static electricity from damaging the system.

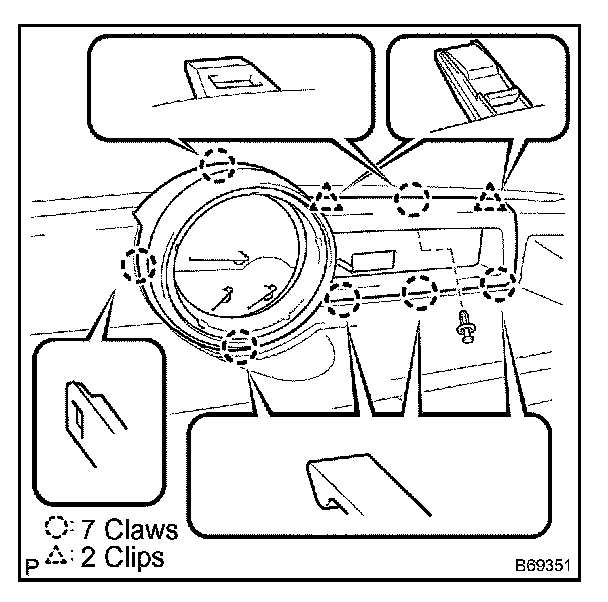

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL
a. Remove the clip.
b. Disengage the 7 claws and the 2 clips, and remove the instrument cluster finish panel.

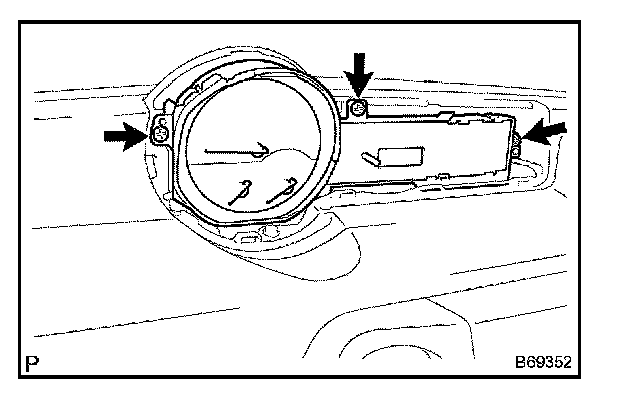

2. REMOVE COMBINATION METER ASSEMBLY
a. Remove the 3 screws.
b. Disconnect the connector, and then remove the combination meter assembly.

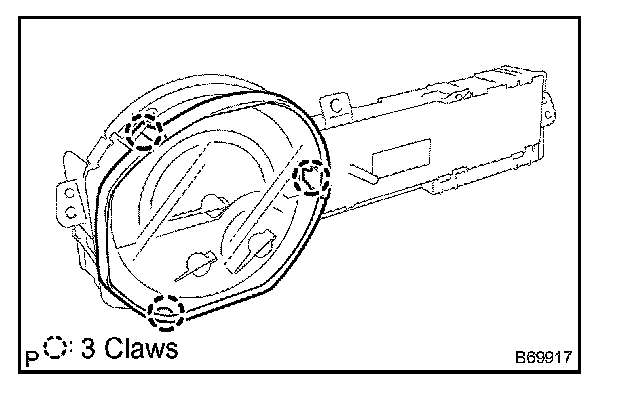

3. REMOVE COMBINATION METER GLASS
a. Disengage the 3 claws, and remove the combination meter glass.

4. REMOVE COMBINATION METER COVER NO.1
a. Disengage the 6 claws, and remove the combination meter cover No.1.
