Torque Specifications

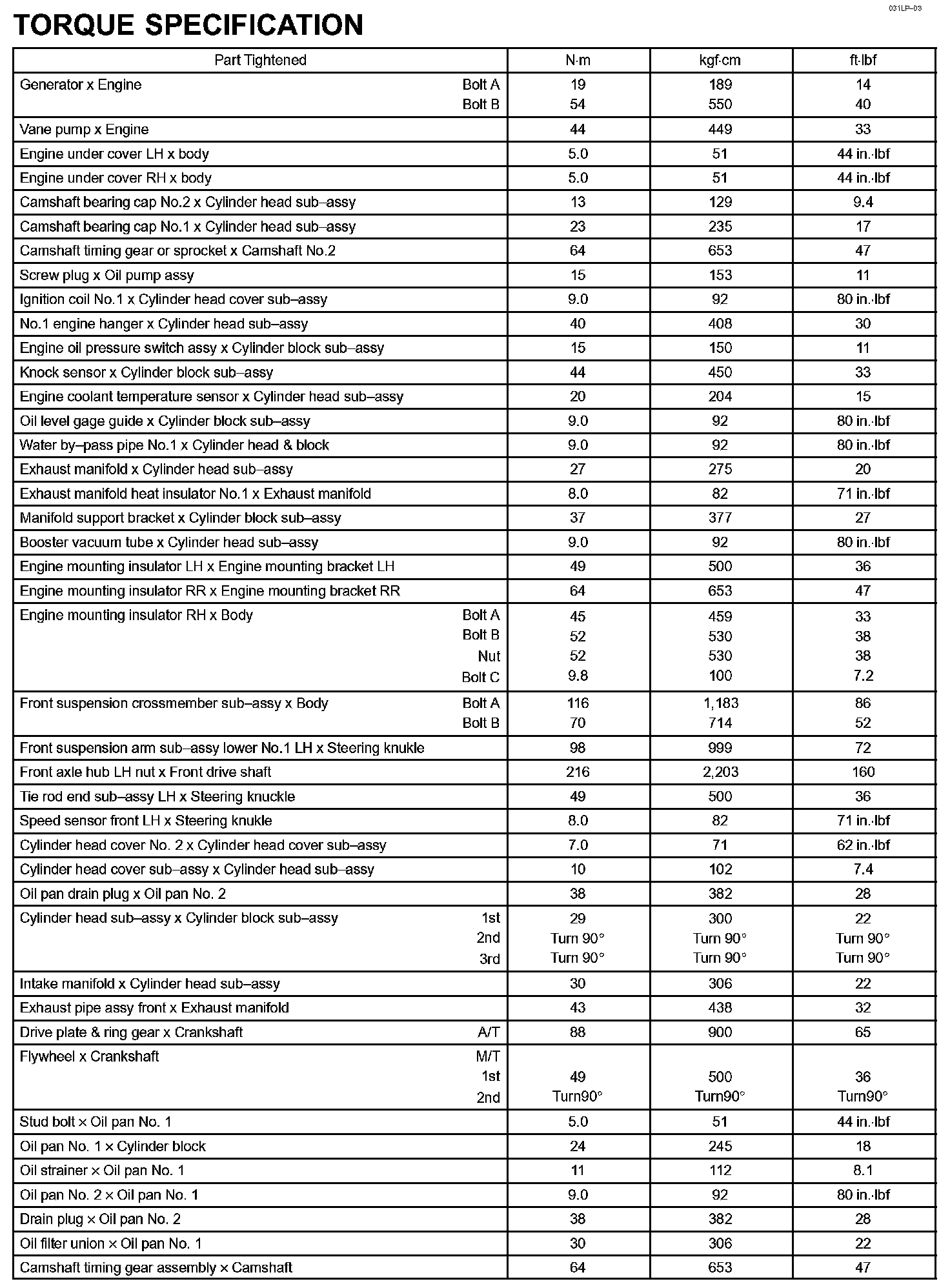

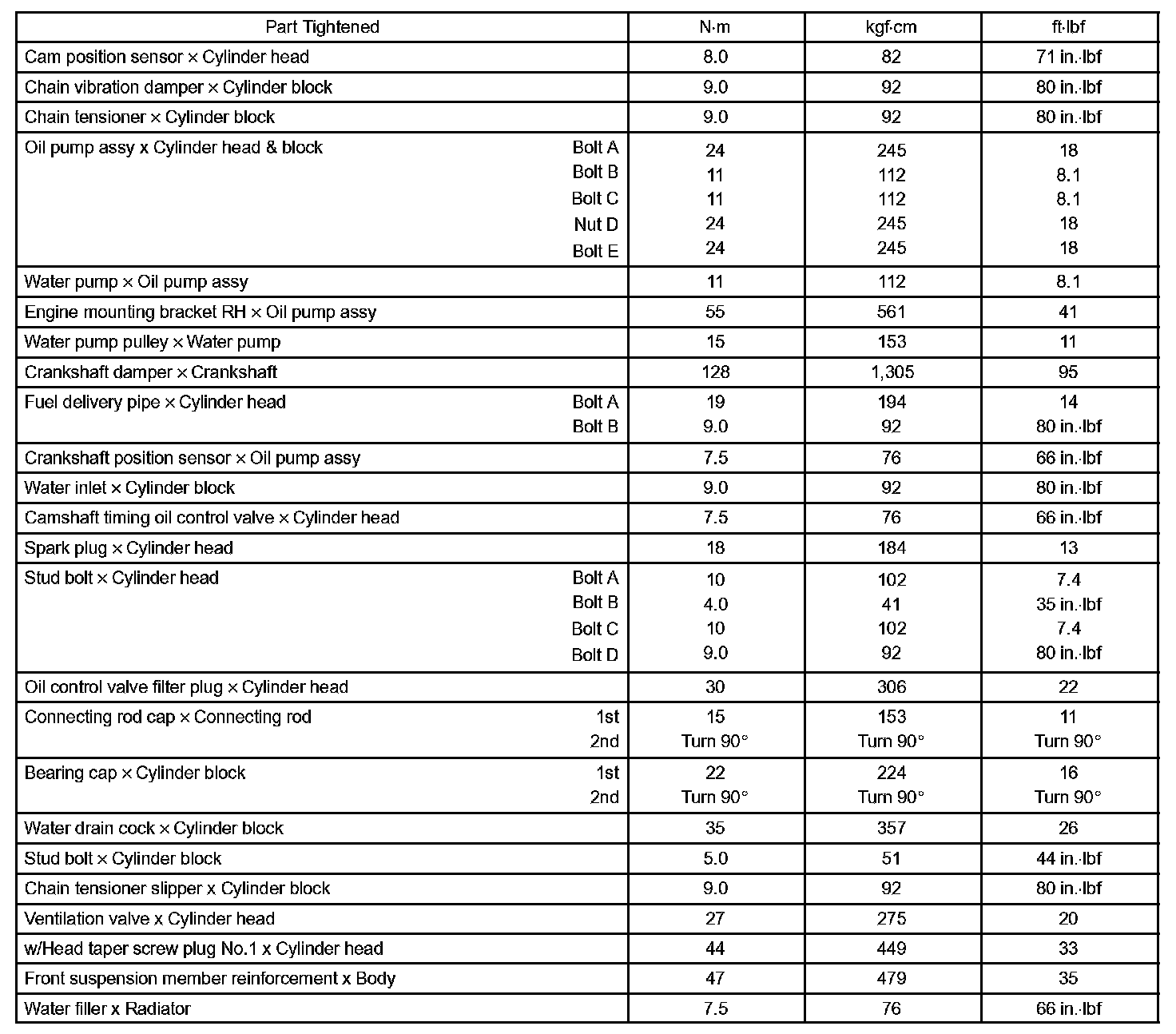

Engine Mechanical - Torque Specification Part 1:



Emission Control - Torque Specification:
