Engine Lubrication: Tools and Equipment

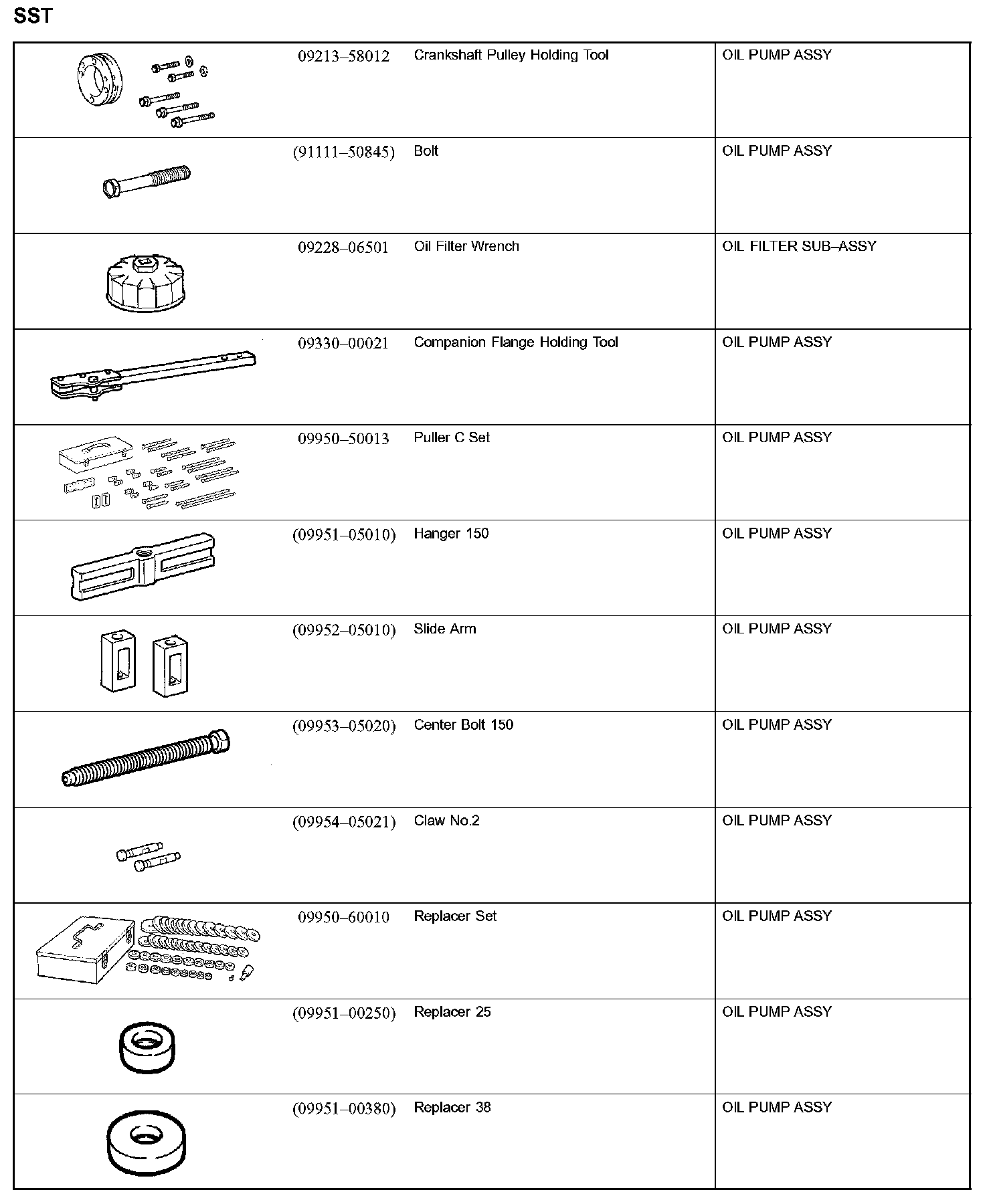

Lubrication - SST Part 1:

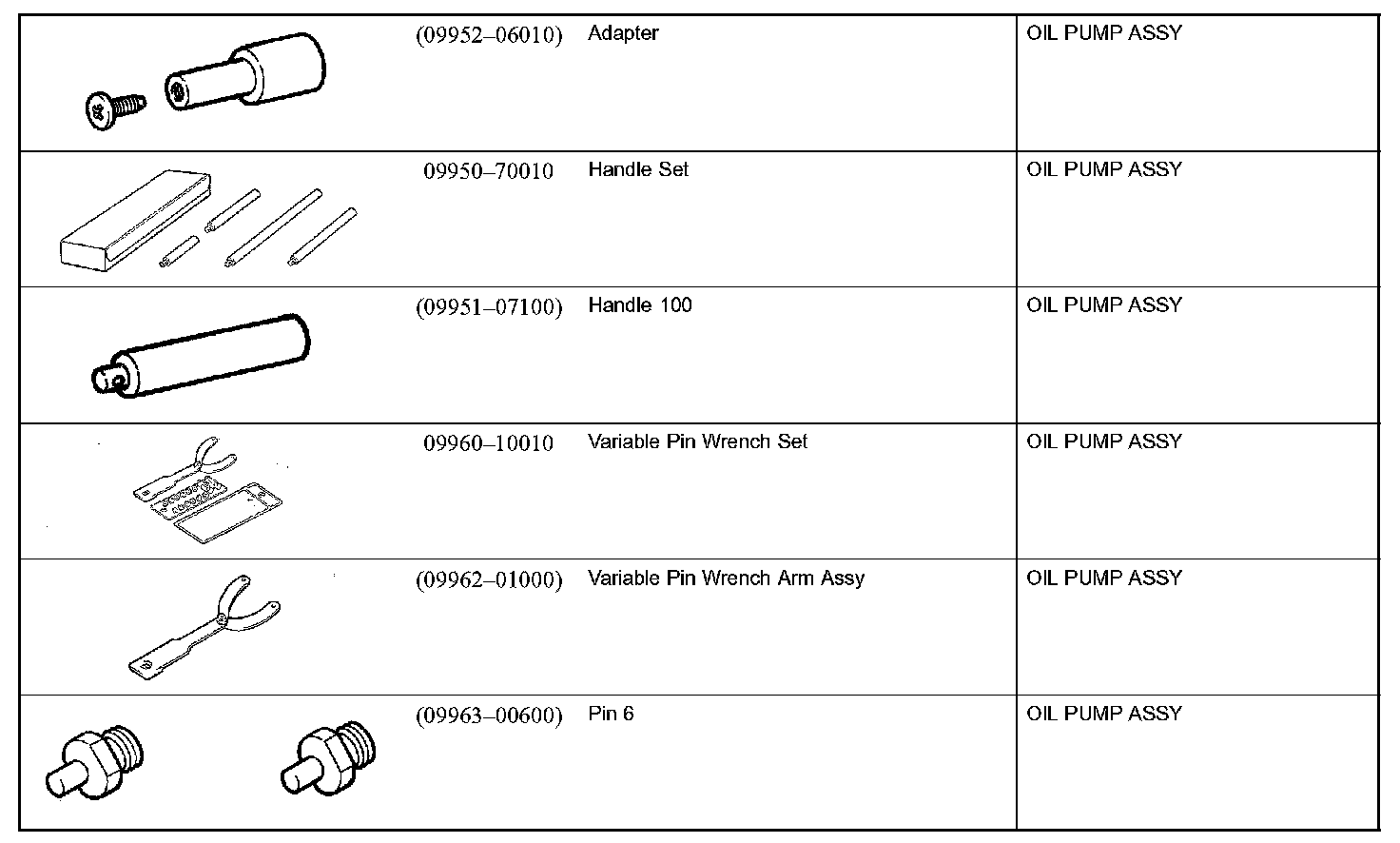

Lubrication - SST Part 2:

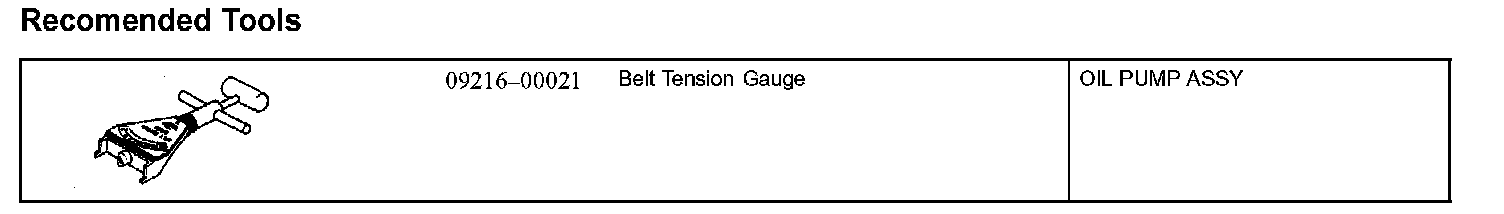

Lubrication - Recommended Tools:

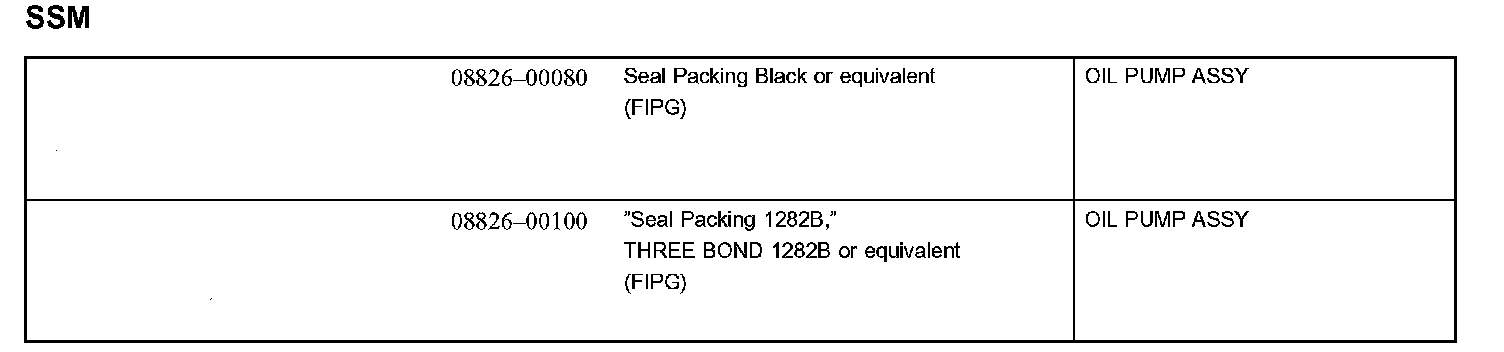

Lubrication - SSM:

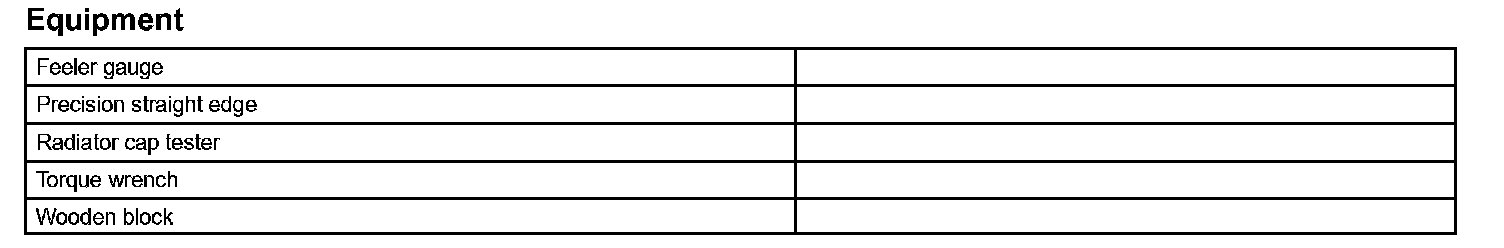

Lubrication - Equipment:
