Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>
System Diagram
>>

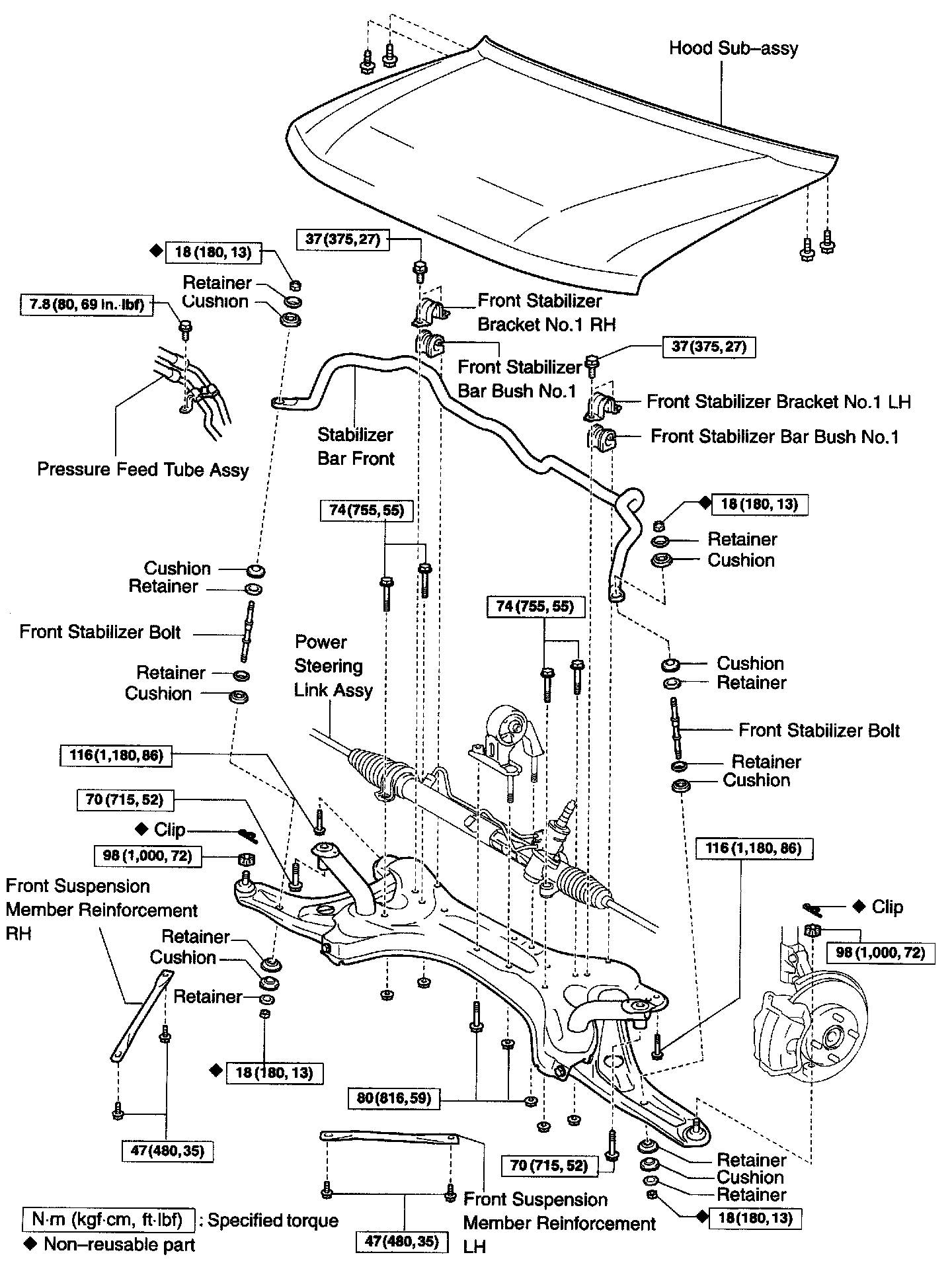

Front
Front

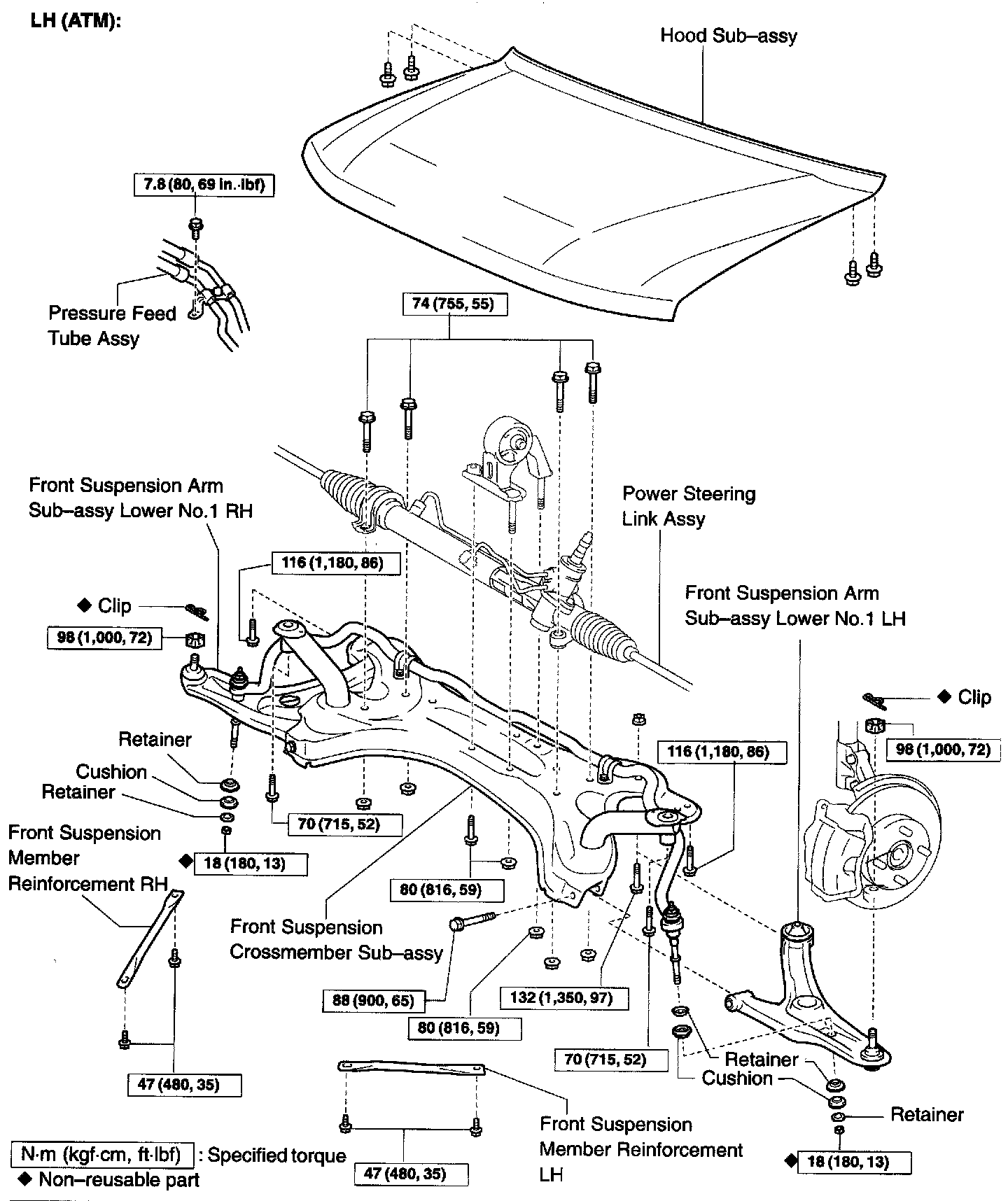

LH (Auto Trans):

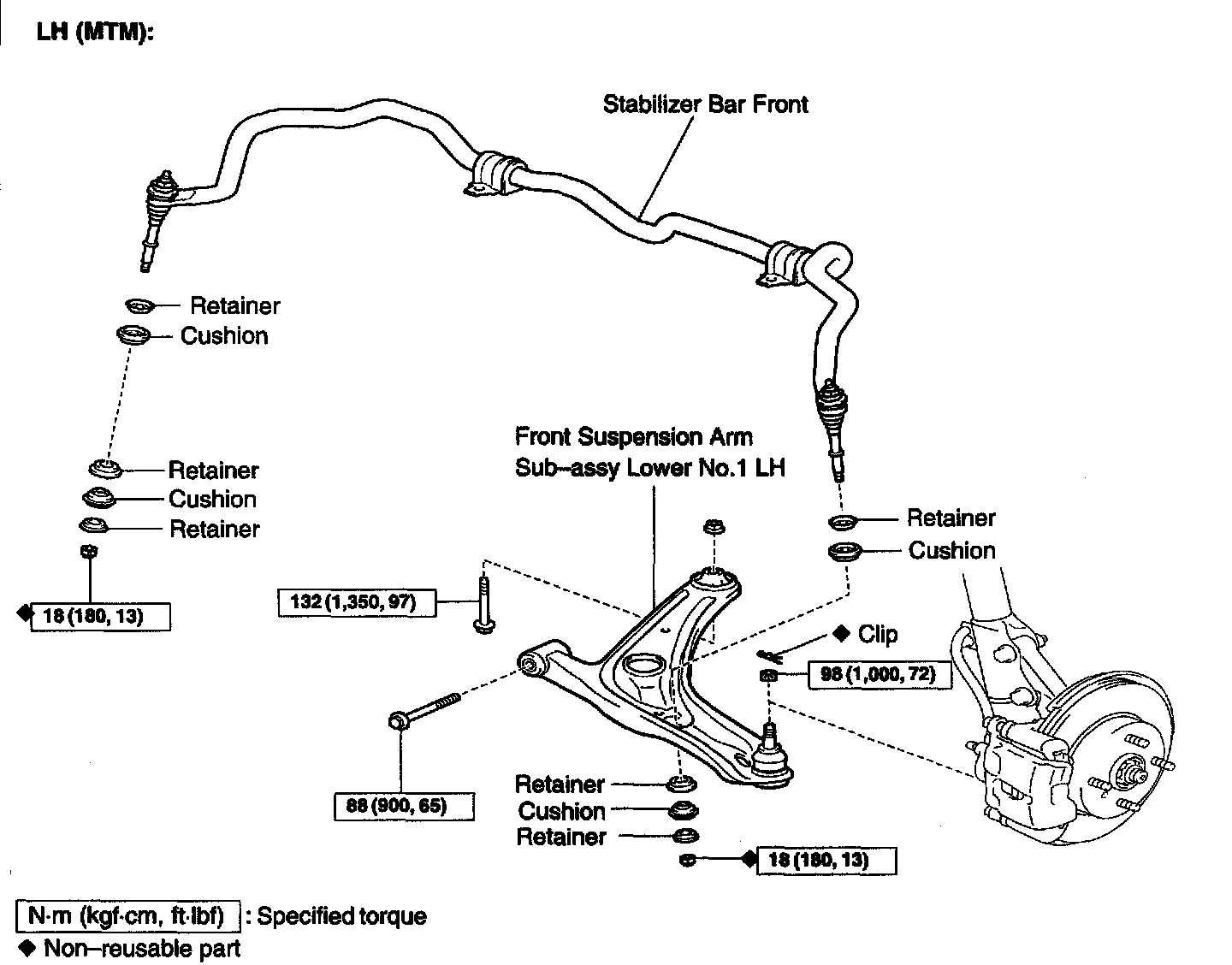

LH (Manual Trans):
FRONT
SUSPENSION
W/ RELATED COMPONENTS
