Instrument Panel, Gauges and Warning Indicators

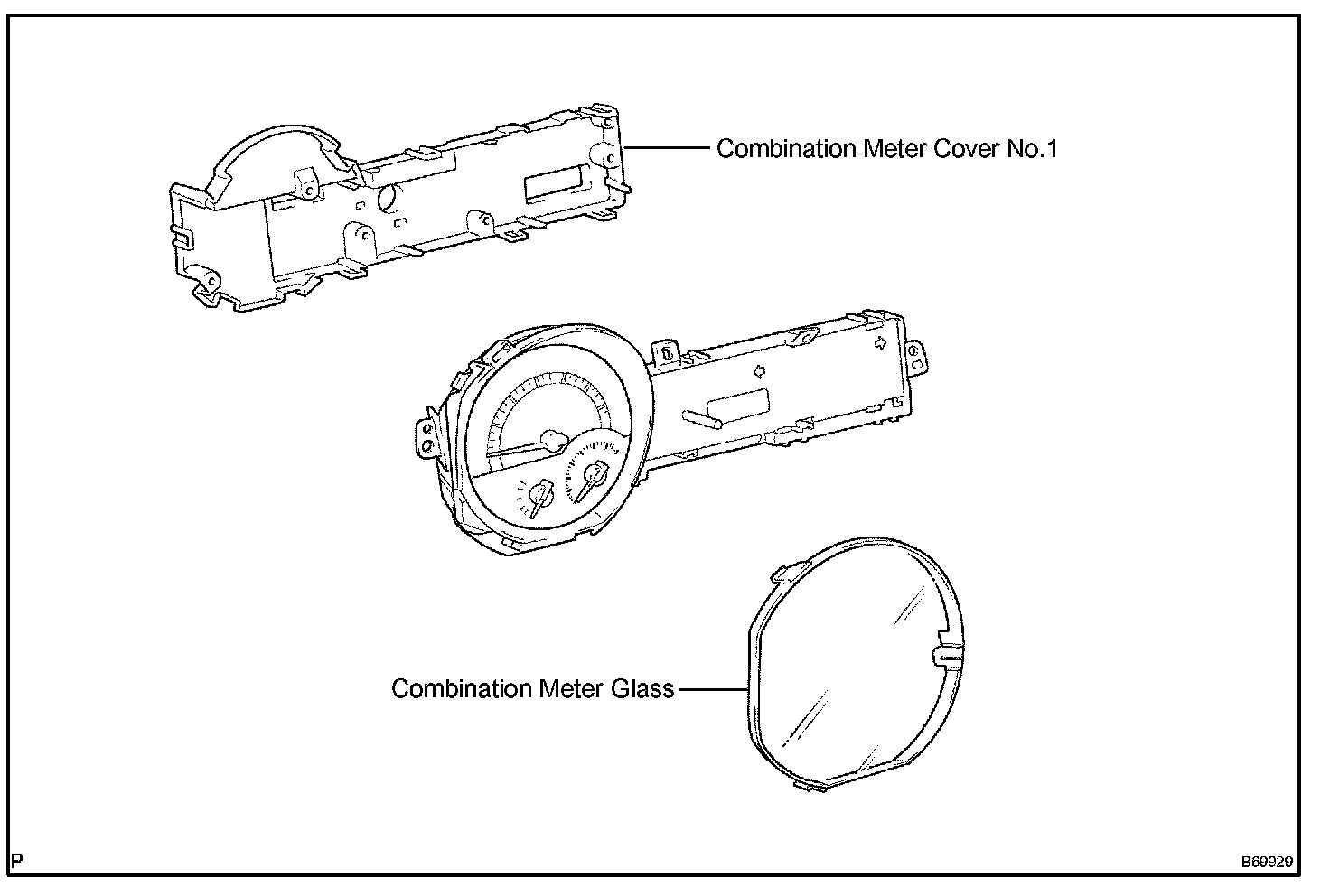

Instrument Panel/Meter Part 1:

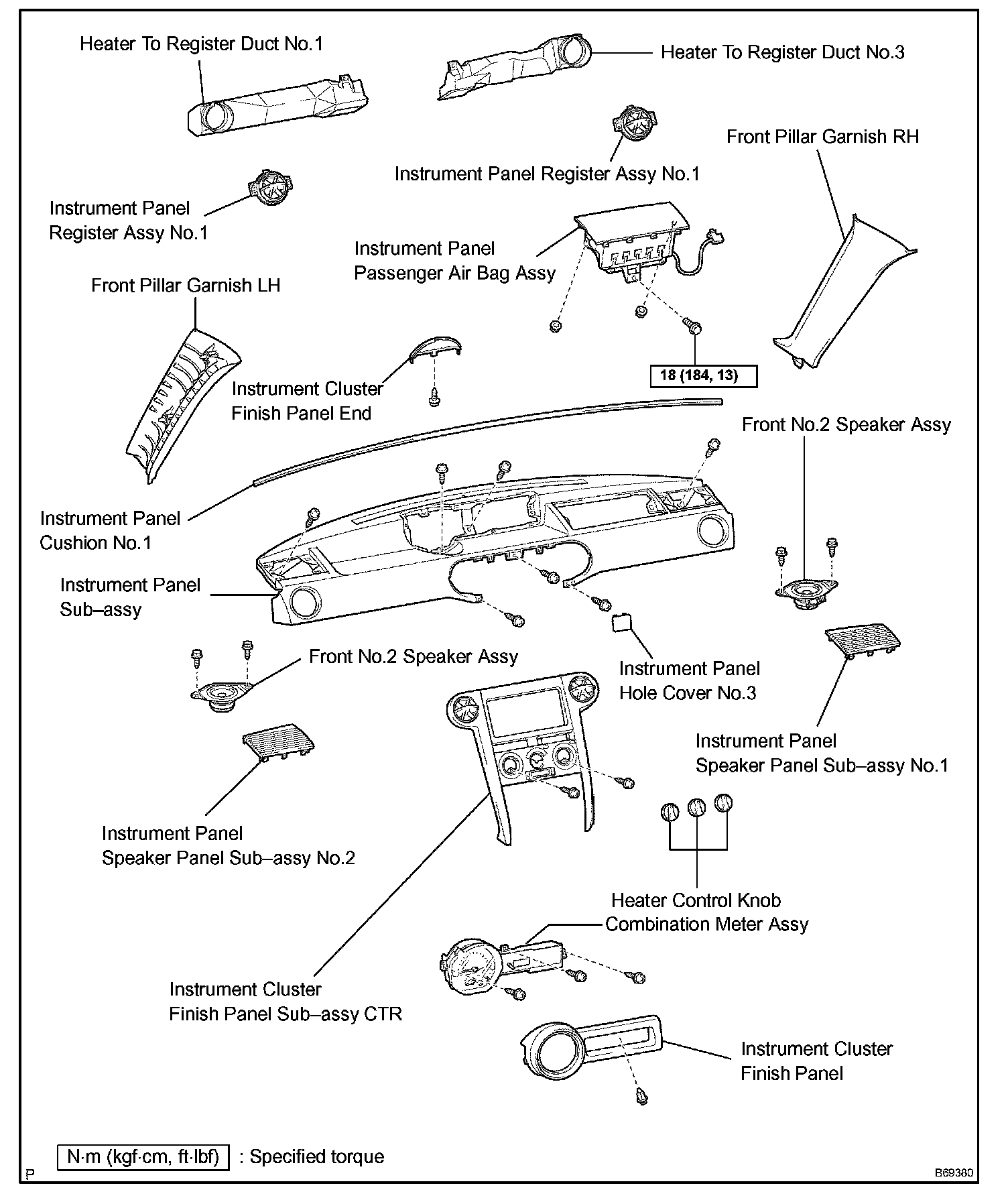

Instrument Panel/Meter Part 2:

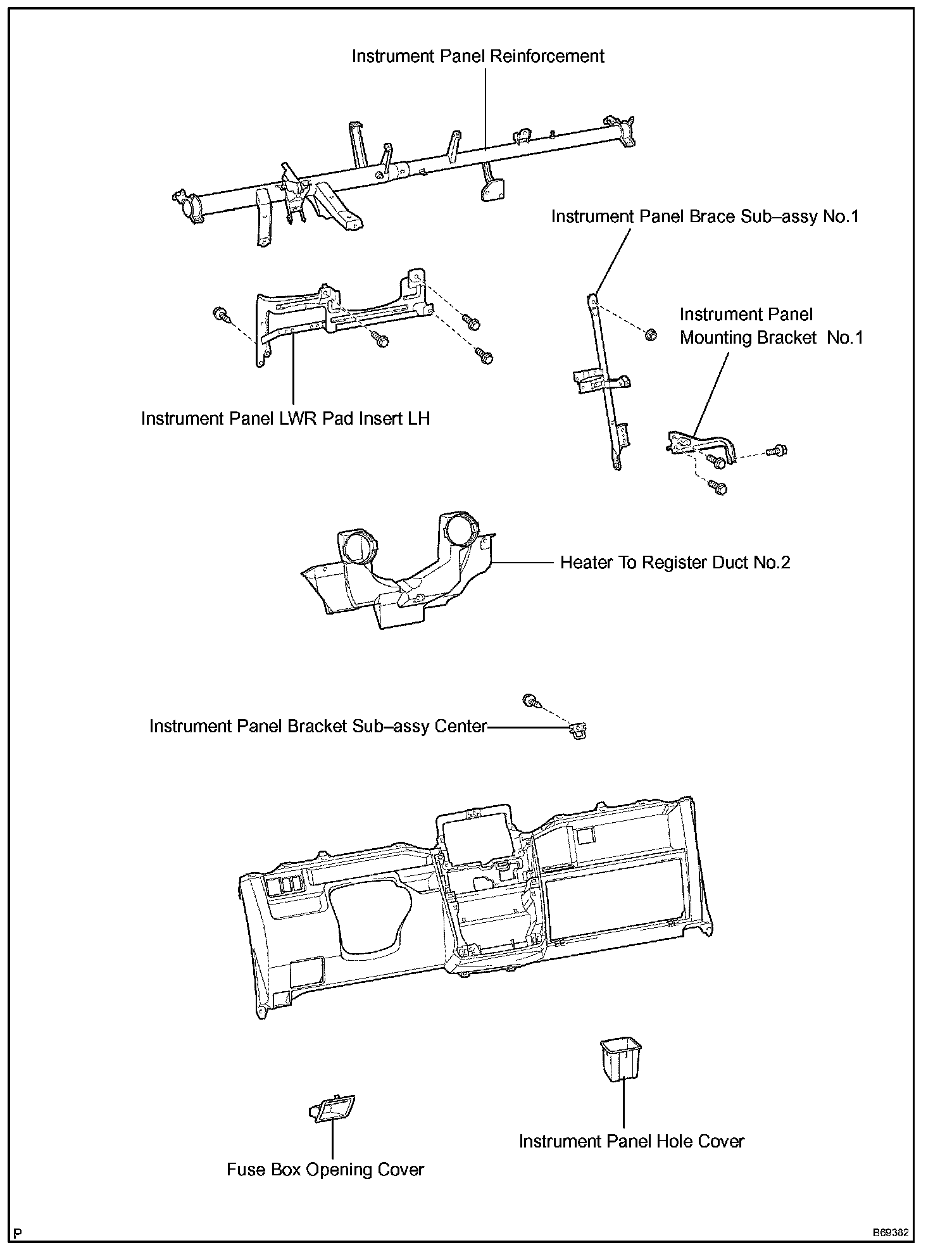

Instrument Panel/Meter Part 3:

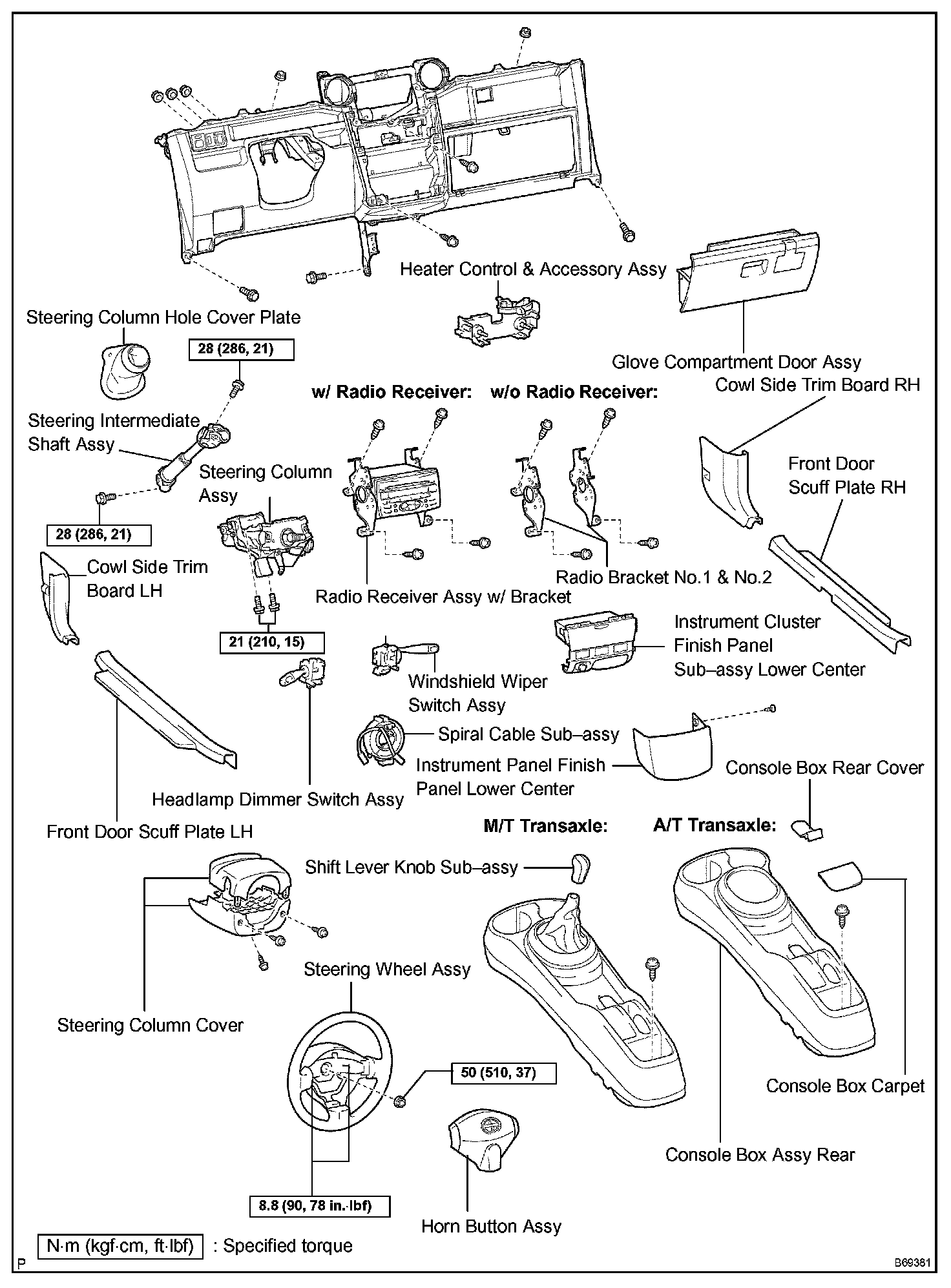

Instrument Panel/Meter Part 4:




INSTRUMENT PANEL SUB-ASSEMBLY
