Shifter A/T

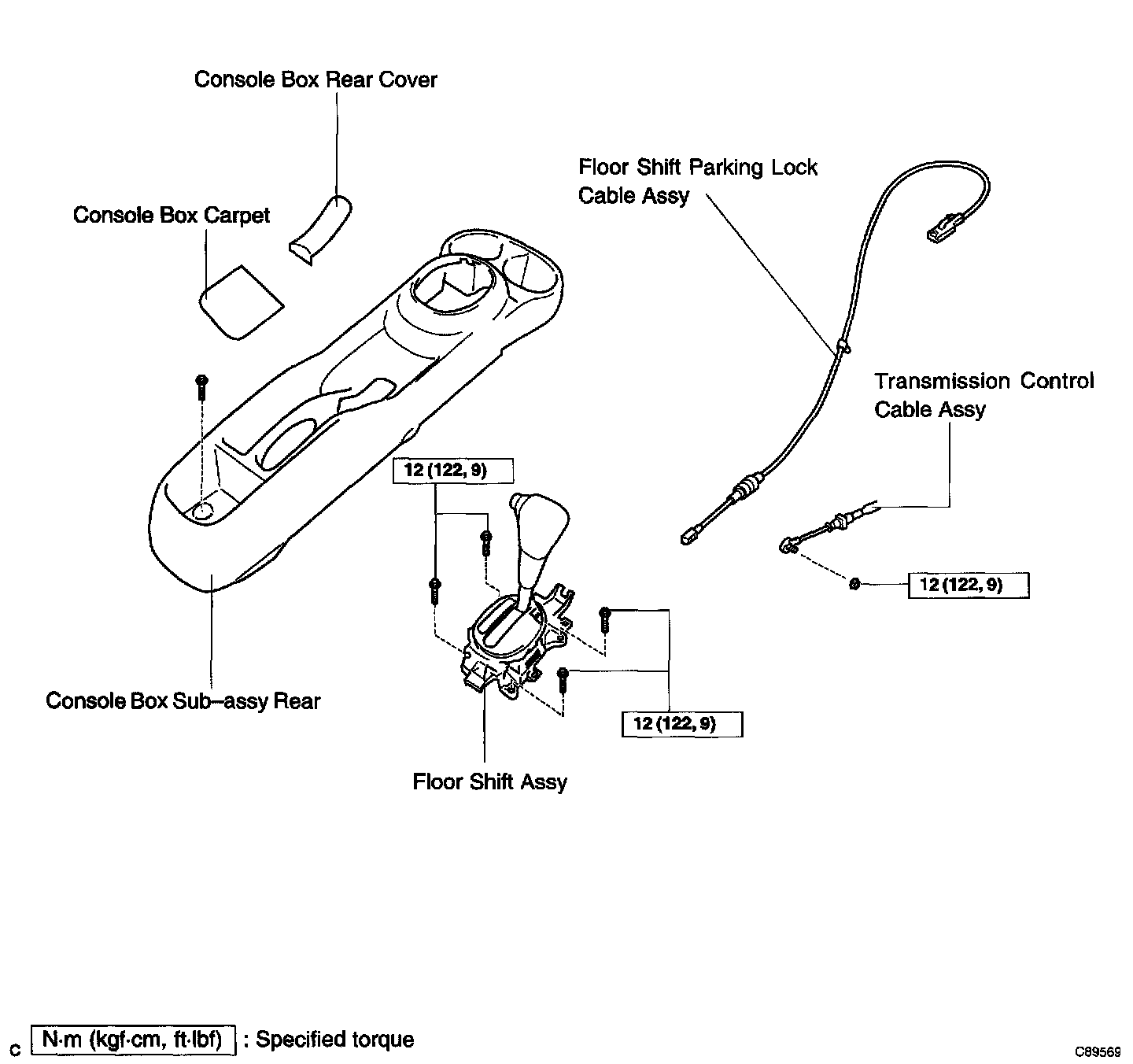

Part 1 Of 2:

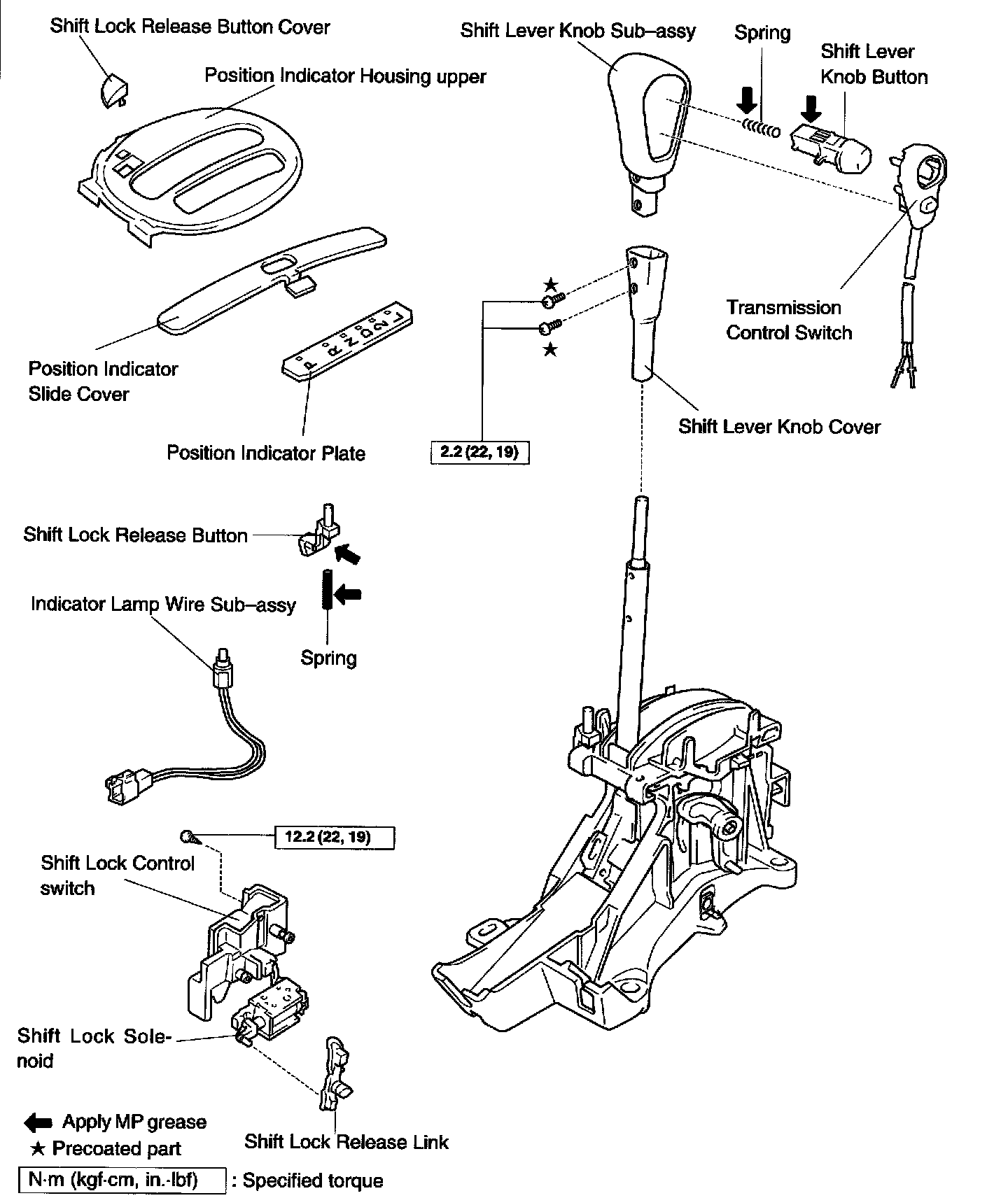

Part 2 Of 2:





FLOOR SHIFT ASSEMBLY (ATM) OVERHAUL W/ RELATED COMPONENTS
